点击放大查看

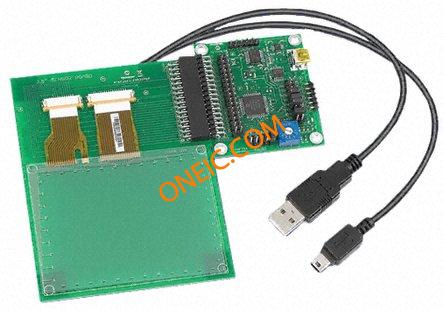

DM160211
| 制造商 | Microchip Technology Inc. |
| 描述 | Mtouch Projected Capacitive Development Kit Touch Sensor Development Tools mTouch Projected Cap Dev Kit mTouch Projected Capacitive Developm KIT DEV MTOUCH PROJ CAPACITIVE DM160211, Development Kit, 8 bit, PIC PIC16F707, MTOUCH, DEV KIT mTouchProjectedCapacitiveDevelopmentKit mTouch Projected Capacitive Development Kit |
| 分类 |
商业参数
| 最小起订量 | 2 | 单位包装 | 1 |
| 产品类别 | Touch Sensor Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85437090 | ||
电气参数
| 核心类型 | PIC | 接口 | UART, USB |
| 传感器类型 | Touch, Capacitive | 感应范围 | 3.5" sensor |
| 供电电压 | 1.8 V ~ 5.5 V | 元件数量 | :PIC16F707 |
| 最小供电电压 | 1.8 V to 5.5 V | 平均整流电流 Io | 1.5 mA |
机械参数
| 重量 | 0.25 | 核心数/总线宽度 | 8 bit |
产品信息
| 类型 | Development Kit | 内容 | 2 Boards, Cable |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :Enables Users to Connect Sensors Up to 24 Channels, Graphical User Interface |
| 套件类型 | :Sensing - Touch, Proximity | 技术 | 8 bit |
| 套件内容 | Capacitive Touch Sensor, Capacitve Board, Sensor Board, USB Cable | 卡标准 | Development Kit |
| 通信接口 | USB | 电路数 | PIC16F707 |
| 使用的IC/零件 | PIC16F707 | 芯片组制造商 | :Microchip |
| 应用细节 | :Capacitive Touch | 可编程特性 | 12x9 Touch Sensor Board 3,5" |
| 支持MCU系列 | :PIC16F707 | 适用产品/相关产品 | software |
