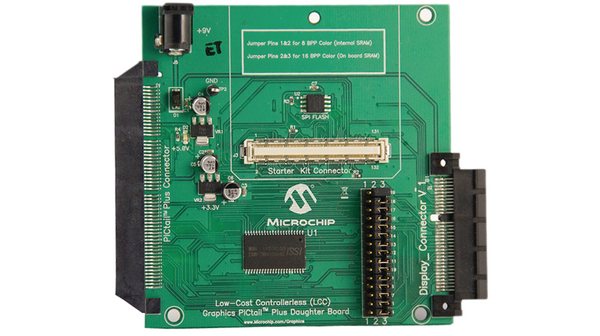

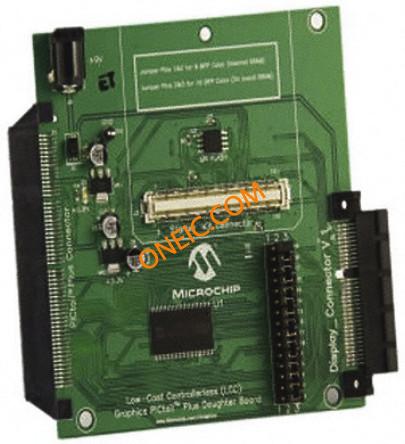

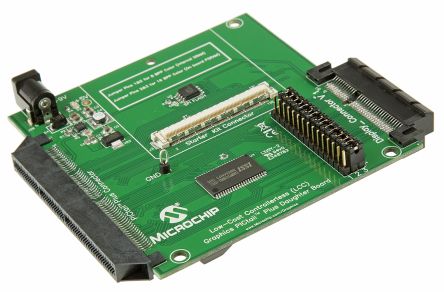

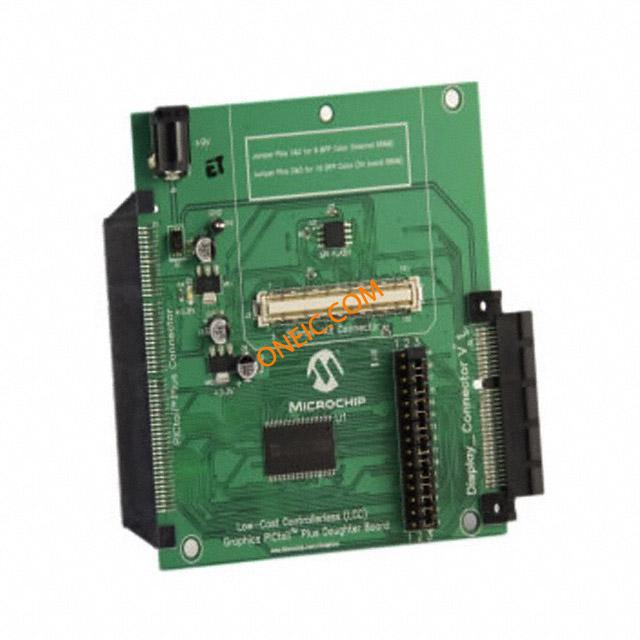

AC164144
| 制造商 | Microchip Technology Inc. |
| 描述 | Low-Cost Controllerless Graphics Pictail Plus Daughter Board Display Development Tools LCC Graphics PICtail Plus Board PICtail Plus Daughter Board LLC PICTAIL PLUS DAUGHTR BRD Controllerless Graphics PICtail + Board Daughter Cards & OEM Boards LCC Graphics PICtail Plus Board PICTAIL PLUS, QVGA, DAUGHTER BOARD ControllerlessGraphicsPICtail+Board Expansion board; for developing graphic applications Graphics PICtail Plus Contr. Board - 9 V, AC164144, Microchip Microchip 32位、图像 MCU 评估测试板 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Development Tools |
| 单位包装 | 1 | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | 接口 | GUI |
| 元件数量 | :PIC32MX | ||
机械参数
| 重量 | 0.04 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | Yes | 产品特性 | :Drive QVGA 8bpp with PIC32, Drive WQVGA 16bpp with External 256KB SRAM Frame Buffer |
| 功能 | Low-Cost Controllerless (LCC) Graphics PICtail Plus Daughter Board | 匹配码 | AC164144 |
| 技术 | 32 bit, Graphics | 套件内容 | Low-Cost Controllerless Graphics PICtail Plus Daughter Board |
| 主要用途 | Displays, Embedded Graphics | 制造商全称 | :- |
| 卡标准 | Module | 附件类型 | expansion board |
| 单元数量 | 1 | 关联项目 | DM320001, DM320003-2, DM320004, EXPLORER-16 |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC32 |
| 主要特性 | For Use With PIC32 Starter KIT and Explorer 16 Dev Boards | 芯片组制造商 | :Microchip |
| 应用细节 | for developing graphic applications | 适用产品/相关产品 | DM320001, DM320003-2, DM320004, DM240001, AC164127-4, AC164127-6 |
