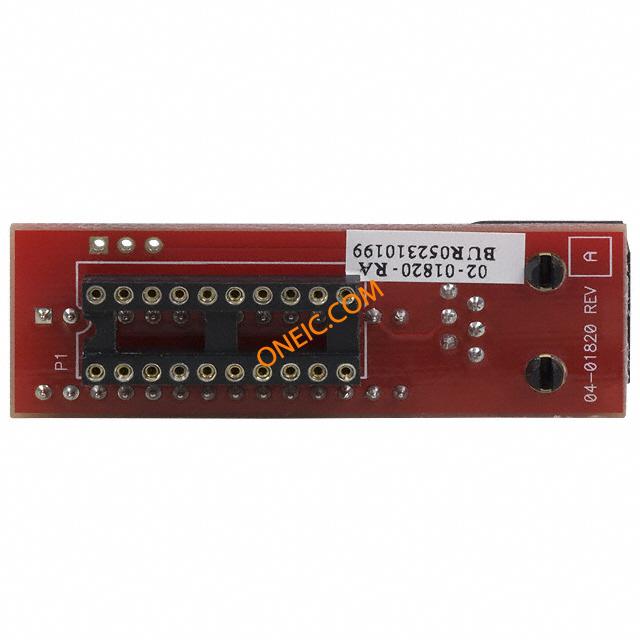

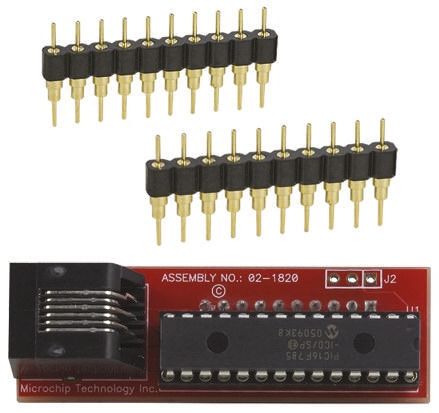

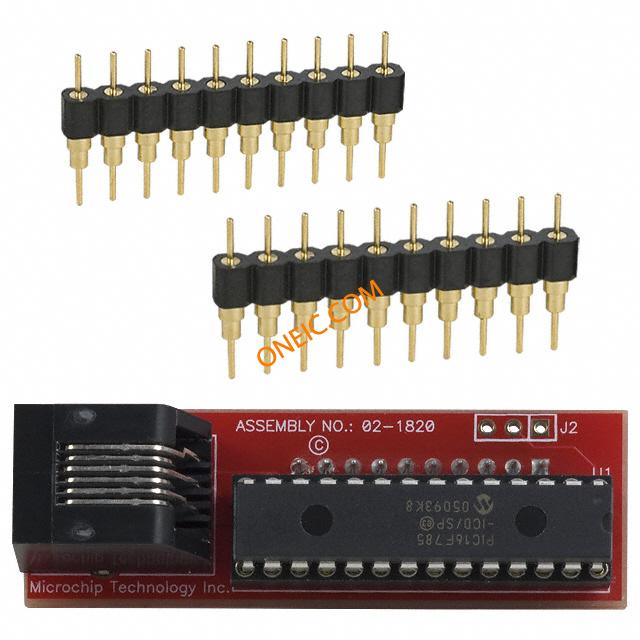

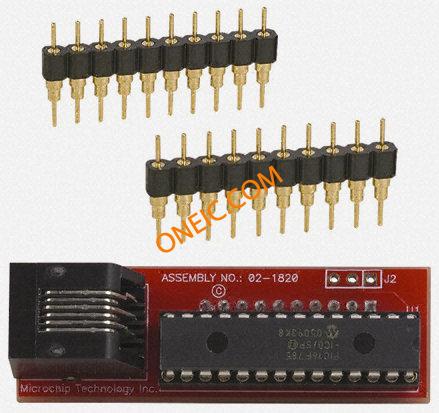

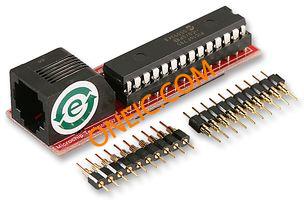

AC162060

制造商	Microchip Technology Inc.
描述	Evaluation Board For Headers For ICD Devices Sockets & Adapters ICD 2 Header Intrfce MPLAB ICD Header Interface for PIC16 HEADER INTRFC MPLAB ICD2 20PIN AC162060, Header, 8 bit, PIC, Header Interface for PIC16F785 MPLAB ICD HEADER, FOR PIC16F785 HEADERINTERFACE,AC162060 Microchip 8 位 MCU 针座微控制器开发套件
分类	嵌入式系统与开发工具嵌入式开发工具调试器、仿真器和编程器

商业参数

最小起订量	4	单位包装	1
产品类别	Sockets & Adapters	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423190

电气参数

核心类型

PIC

供电电压

:5.5V

机械参数

重量	0.18	安装类型	:PCB Through Hole
核心数/总线宽度	8 bit

产品信息

类型	Debugger	产品特性	:-
技术	8 bit	套件内容	Header Interface for PIC16F785
卡标准	Header	附件类型	Transition Header
转换端（适配器端）	:PIC16F785-ICD	转换自（适配器端）	:20-pin PIC16F785/HV785
适用产品/相关产品	ICD2, PIC16f785

文档与媒体

ICD2_Header_51292L.pdf

30177t.pdf

Microchip Development Systems Ordering Guide

MPLAB ICD 2, Header Specification

53561.pdf
