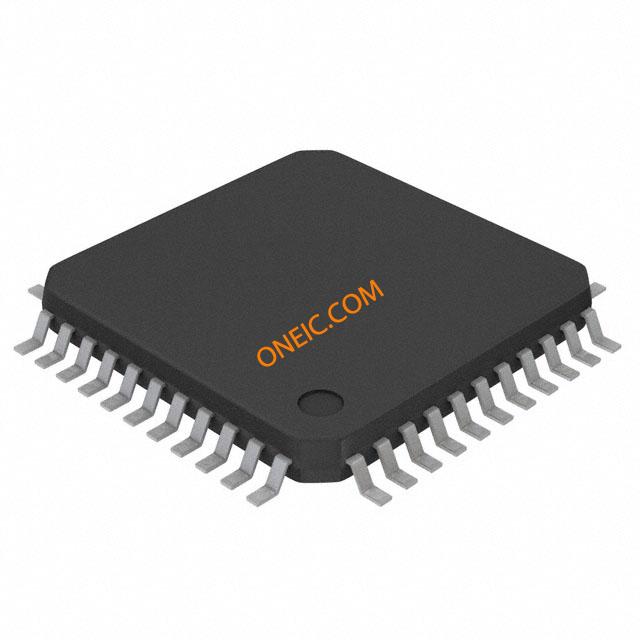

ENC424J600-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | . ENC424J600-I/PT - Ethernet Controller 10/100 Base-T PHY SPI, Parallel Interface 44-TQFP (10x10) from Microchip Technology. from now! |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 160 |
| 其他名称 | ENC424J600IPT | 产品类别 | Peripheral Drivers & Components - PCIs |
| 标准包装数量 | Trays | 工厂包装数量 | 160 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | IEEE 802.3 | 海关税号 | 85411000 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 转速 | 25MHz | 以太网 | :IEEE 802.3 |
| RAM 大小 | 24.576KByte | 数据速率 | 10|100 Mbps |
| 接口 | MII|MIIM | I/O电压 | 0 |
| 额定电压 | 3.3 V | 输出电流 | 96mA |
| 供电电流 | 117 mA | 供电电压 | 3.3 V |
| 数字I/O线数 | SPI,paral | 最小输入电压 | 5.5 V |
| 最小供电电压 | 3 V | ||
机械参数
| 宽度 | 10mm | 高度 | 1mm |
| 长度 | 10mm | 重量 | 0.002188 |
| 包装方式 | Tray | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :44 | 封装形式 | 44TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 主要材料 | Microcontroller | 尺寸/外形 | 10 x 10 x 1mm |
| 位数 | 44 | 供应商器件封装 | 44-TQFP (10x10) |
产品信息
| 类型 | MAC+PHY | 产品特性 | MAC / PHY |
| 功能 | Controller | 协议 | Ethernet |
| 匹配码 | ENC424J600-I/PT | 通信接口 | Full Duplex|Half Duplex |
| 控制器类型 | :Ethernet | 端口数 | :1 |
| 标准交期 | 14 weeks | 网络技术 | 100BaseTX, 10BaseT |
| 使用的IC/零件 | :ENC424J600-I/PT | 其他规格 | Yes |
| 适用产品/相关产品 | 10/100Base-TStandalone | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
