SSB-LX2350IW
| 制造商 | |
| 描述 | LED Bars and Arrays 5mm x 20mm Bar Red LED LT BAR 5X20MM 4CHIP RED DIFF LIGHT BAR, RED, 4 LED, 50MCD LED 5x20mm4-ChipLightBar635nmRed,MilkyWhiteDiffused |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | LED Light Bars | 标准包装规格 | 100 |
| 产品类别 | LED Bars and Arrays | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85312020 | ||
电气参数
| 电流 | 30mA | 额定功率 | 105 mW |
| 视角 | 160° | 额定电压 | 2.1V |
| 供电电压 | 2VDC | 峰值波长 | 635nm |
| LED正向电流 | 20 mA | LED正向电压 | 2.1 V |
| 毫坎德拉等级 | 50mcd | 直流正向电流（If）（最大） | :20mA |

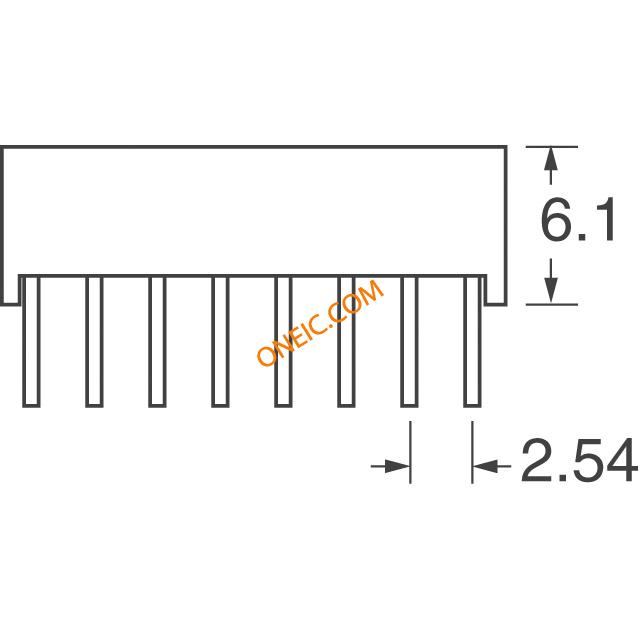

机械参数
| 颜色 | Red (x 4) | 重量 | 0.002 |
| LED颜色 | :Bar | 包装方式 | Bulk |
| 公共引脚 | 8 | 安装类型 | Through Hole |

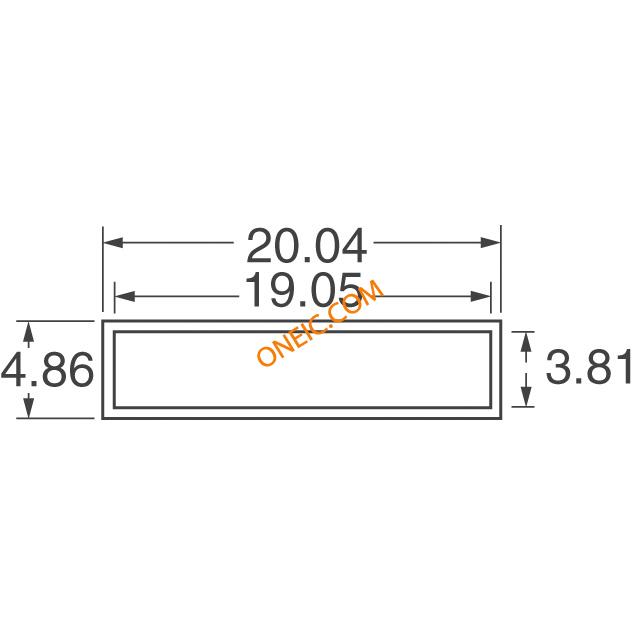

| 安装样式 | Thru-Hole | 透镜样式/尺寸 | Rectangle, 19.05mm x 3.81mm |
| 总长度 | 20.04 mm | 照明颜色 | Red |
产品信息
| 透镜类型 | Diffused, White | 配置 | Bar - Single, SIP |
| LED数量 | :4 | 显示尺寸 | :19.05mm x 3.81mm |
| 段数 | 4 | ||
环境参数
| 光通量 @ 电流/温度 | 50 mcd | ||
