点击放大查看

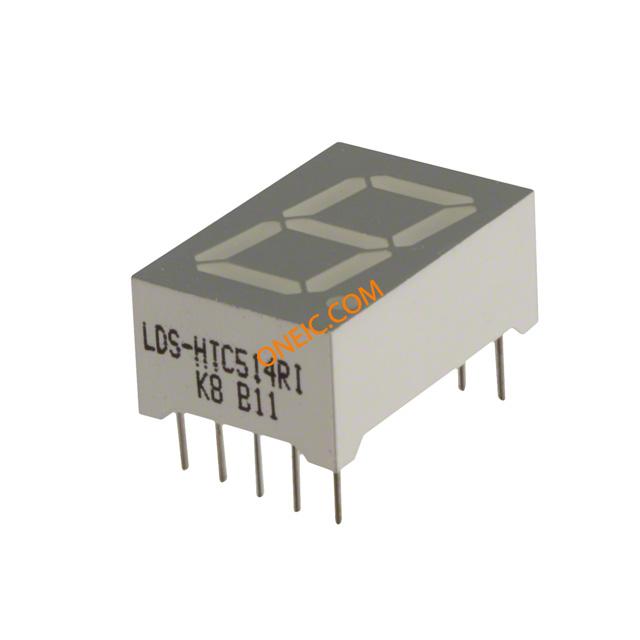

LDS-HTC514RI
| 制造商 | |
| 描述 | LED Displays & Accessories .56 7-seg,c/c H-Tmp 635nm Red Gry/Wh LED DISPLAY 7-SEG RED 1-DIGIT CC Displays Module 1DIGIT 8LED Red CC 10-Pin DIP DISPLAY, 7 SEGMENT, RED, 14.22MM .56in.7-segdspl,c/chightemp,635nmred,gray/white |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 67-2111-5 | 产品类别 | LED Displays & Accessories |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85312020 | ||
电气参数
| 波长 | 635 nm | 显示类型 | 7 Segment |
| 输出电流 | 10mA | 供电电压 | 2.1V |
| 峰值波长 | 635nm | LED正向电压 | :2.1V |
| 毫坎德拉等级 | 3.9mcd | 最大功耗 | 105mW |
| 直流正向电流（If）（最大） | :10mA | 峰值脉冲电流（10/1000µs） | 25mA(perSegment) |
机械参数
| 颜色 | Red | 重量 | 0.00204 |
| LED颜色 | :Red | 包装方式 | Tube |
| 公共引脚 | Common Cathode | 安装样式 | ThurHole |
| 封装形式 | 10-DIP (0.600", 15.24mm) | 总直径 | 19.00×12.60mm |
| 尺寸/外形 | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) | 照明颜色 | Red |
产品信息
| 可视区域 | —mm | 字符尺寸 | 0.56 in |
| 数字/字母尺寸 | 0.56" (14.20mm) | 每电路通道数 | 1 |
| 位数或字符数 | 1 | 字符数 | 1 |
| 应用细节 | LED | ||
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | 工作温度 | + 85 C |
| 光通量 @ 电流/温度 | 3900 mcd | ||
