点击放大查看

83500000005

制造商	Littelfuse, Inc.
描述	Fuse Holders Accessories CAP FOR 83100000005 FLUSH MOUNT PN may be NE SA CE AP NA SE FuseCarrier bayonet fixing 5x20 CAP FOR 5X20MM FUSES FLUSH MOUNT 5x20mm Fuseholder Cap 250V 6.3A CAP, FUSEHOLDER, 20X5MM, FLUSH MOUNT ACS5X20MMFUSEHOLDERCAP Adapter; tube fuses; 5x20mm; 6.3A; 250V; -25÷70°C Fuse carrier ø 5 x 20 mm, 83500000005, Littelfuse Littelfuse 聚酰胺 PCB 固定熔断器座盖, 使用于5 x 20mm熔断器, IP40 Fuse Holder Accessories CAP FOR 83100000005 FLUSH MOUNT
分类	电路保护解决方案保险丝座PCB安装保险丝座

对参数有疑问？问 AI 助手

商业参数

最小起订量	100	产品	Caps
单位包装	100	产品类别	Fuse Holders Accessories
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
标准	CSACertified/ULRecognized/VDEApproved	海关税号	85361010
汽车级	NO	无铅定义	RoHS-conform

电气参数

额定电压	250 V	最大额定电流	6.3 A
最小供电电压	250V	每极负载侧连接方式	:Quick Connect

机械参数

尺寸	20.6 mm x 9.2 mm	宽度	9.2 mm
高度	20.5mm	长度	20.6 mm
重量	0.025	包装方式	Bulk
基体材料	Thermoplastic	安装类型	PanelMount
安装样式	Flush	保险丝座类型	Flush Mount
本体材料	Polyamide/Thermoplastic	材料表面处理	:-
触头材料	TinnedCopperAlloy	包装数量	100
端接样式	Screw	外径	:9.2mm
接线端子类型	Solder	安装面板厚度	5x20mm
外部壳体材料	PA, Thermoplastic

产品信息

SPG	100	类型	Slot Knob Flush Mount
系列	:835	保险丝尺寸	5 mm x 20 mm
保险丝类型	:16A	匹配码	FUH5X20CAP
制造商全称	835Series	附件类型	Cap (Cover)
单元数量	1	关联项目	82000000005, 83000000005, 83100000005
标准交期	14 weeks	附带电池数量	:1
适用产品/相关产品	Fuse Holders, No. 821 5 x 20 mm

环境参数

防护等级

IP40

工作温度

- 25 C to + 70 C

文档与媒体

PDF 文档

820_835_837_LF_050909.pdf

PDF 文档

820,835,837

PDF 文档

821_835_837_LF_050906.pdf

相关型号

82300000005

Littelfuse

Fuse Holders 5x20mm Panel Mount MINIATUREFUSEHOLDERS ACS HOLDER 823 250V FUSE HLDR CART 250V 6.3A PNL MNT Fuse holder ø 5 x 20 mm, 82300000005, Littelfuse Fuse Holder 5x20mm Panel Mount MINIATUREFUSEHOLDERS

¥5.1510

详情

83000000005

Littelfuse

Fuse Holders ACS HOLDER 830 250V Fuse Holder Through Hole Bulk Holder horizontal PCB 5x20 FUSE HOLDER CART 250V 6.3A PCB 5x20mm Fuseholder 250V 6.3A - Horizontal Fuse Holder 3-Pin Bulk Fuse holder; tube fuses; Mounting: PCB; 5x20mm; -25÷70°C; 6.3A Fuse holder 830 ø 5 x 20 mm, 83000000005, Littelfuse Littelfuse 6.3A 槽式帽盖 PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder ACS HOLDER 830 250V

¥10.2748

详情

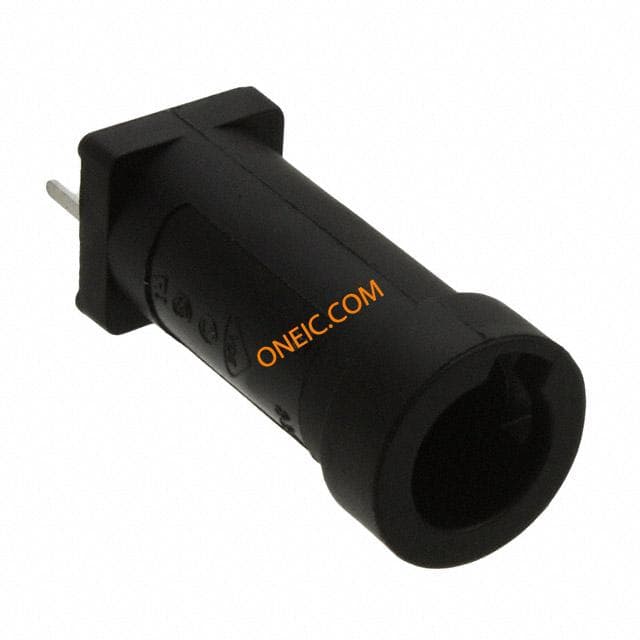

83400000005

Littelfuse

Fuse Holders PCB VERT MOUNT FOR 5X20MM FUSE MINIATURE FUSEHOLDERS ACS HOLDER 834 250V FUSE HOLDER CART 250V 6.3A PCB Fuse Holder PCB VERT MOUNT FOR 5X20MM FUSE Holder 5X20 PCB Vertical

¥9.8988

详情

82000000005

Littelfuse

Fuse Holders 5X20MM PANEL MNT Fuse Holder Panel Mount Bulk Holder shocksafe panel5x20 250V FUSE HLDR CART 250V 6.3A PNL MNT 5x20mm Fuseholder 250V 16A Fuse Holders 5X20MM PANEL MNT 250V Quick Connect Fuse Holder 2-Pin Bulk FUSE HOLDER, 20X5MM, BODY ONLY FUSE HOLDER, 5 X 20MM, PANEL MOUNT Fuse holder; tube fuses; 5x20mm; 6.3A; 250V; Mounting: on panel Fuse holder ø 5 x 20 mm, 82000000005, Littelfuse Littelfuse 821 系列 16A 槽式帽盖面板固定熔断器座，适用于5 x 20mm熔断器, PC2, IP40 Fuse Holder 5X20MM PANEL MNT 250V Quick Connect

¥14.3337

详情

83100000005

Littelfuse

Fuse Holders 5X20mm FUSEHOLDER PCB BLACK Fuse Holder Through Hole Bulk Holder 5x20 vertical 4 pins FUSE HOLDER CART 250V 6.3A PCB 5x20mm Fuseholder 250V 6.3A - Vertical Fuse Holder 4-Pin Bulk FUSE HOLDER, PCB, 20X5MM Fuse holder; tube fuses; Mounting: PCB; 5x20mm; -25÷70°C; 6.3A Fuse holder 831 ø 5 x 20 mm, 83100000005, Littelfuse Littelfuse 6.3A 槽式帽盖 PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder 5X20mm FUSEHOLDER PCB BLACK

¥7.7126

详情

83500000005

Littelfuse

Fuse Holders Accessories CAP FOR 83100000005 FLUSH MOUNT PN may be NE SA CE AP NA SE FuseCarrier bayonet fixing 5x20 CAP FOR 5X20MM FUSES FLUSH MOUNT 5x20mm Fuseholder Cap 250V 6.3A CAP, FUSEHOLDER, 20X5MM, FLUSH MOUNT ACS5X20MMFUSEHOLDERCAP Adapter; tube fuses; 5x20mm; 6.3A; 250V; -25÷70°C Fuse carrier ø 5 x 20 mm, 83500000005, Littelfuse Littelfuse 聚酰胺 PCB 固定熔断器座盖, 使用于5 x 20mm熔断器, IP40 Fuse Holder Accessories CAP FOR 83100000005 FLUSH MOUNT

¥3.9140

详情

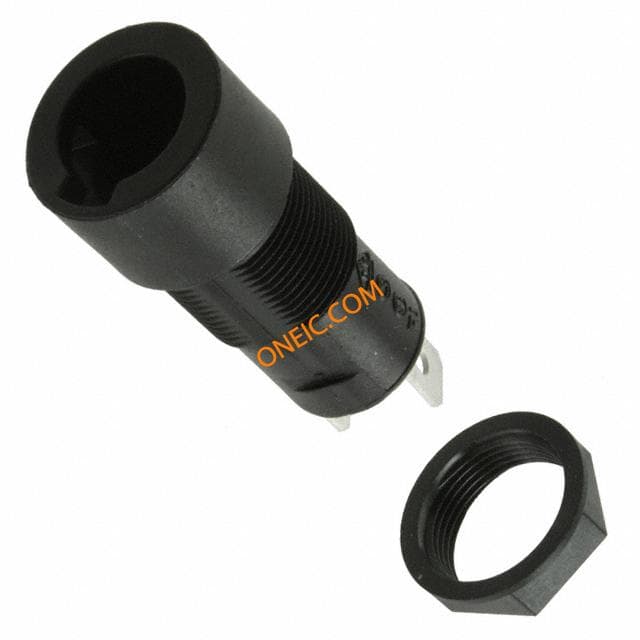

82100000005
