VHR-8N
| 制造商 | |
| 描述 | CONN HOUSING VH 8POS 3.96MM WHT VH 3.96MM N TYPE HOUSING 8 WAY Conn Housing PL 8 POS 3.96mm Crimp ST Cable Mount Bag Crimp housing Pitch3.96 mm Poles 8 Single row / Free hanging/cable mount VH, VHR-8N, JST JST VH 系列 1 行 3.96mm 节距 8 路 侧入、顶入 母 印刷电路板安装 PCB 壳体 |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 | 极数 | 8 |
| 接触电阻 | 10 mOhm | 最大额定电流 | 10 A |
| 绝缘电阻 | 1000 MOhm | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Natural | 深度 | 13.3mm |
| 间距 | 0.156" (3.96mm) | 宽度 | 10.5mm |
| 高度 | 10.5 mm | 长度 | 31.62mm |
| 包装方式 | Bulk | 导线线规 | 16-22 |
| 方向 | 侧入、顶入 | 触头类型 | Female Socket |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 连接器样式 | Single row |
| 壳体材料 | PA 6 | 总长度 | 31.62 mm |
| 连接器颜色 | white | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 第一连接器极性 | Female | 线规或范围 - AWG | 22...16 AWG |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Female | 系列 | VH |
| 连接方式 | Wire-Board | 适用产品/相关产品 | Compact Power Connector |
环境参数
| 工作温度 | -25C to 85C | ||
文档与媒体
相关型号
QPSF-125-24
Qualtek
POWER SUPPLY OPEN FRAME 24V 5.2A Switching Power Supplies 24V 5.2A 125W P/S SINGLE OUTPUT PowerSupply;AC-DC;24V@5.2A;90-264VIn;OpenFrame;PanelMount;PFC;QPSFSeries
QPSF-125-15
Qualtek
POWER SUPPLY OPEN FRAME 15V Switching Power Supplies 15V 8.4A 125W P/S SINGLE OUTPUT OpenFramepowersupply,125singleoutput,15VDC
QPSF-125-28
Qualtek
POWER SUPPLY OPEN FRAME 48V Switching Power Supplies 28V 4.5A 125W P/S SINGLE OUTPUT
QPSF-125-48
Qualtek
POWER SUPPLY OPEN FRAME 48V Switching Power Supplies 48V 2/6A 125W P/S SINGLE OUTPUT
QPSF-125-5
Qualtek
POWER SUPPLY OPEN FRAME 5V 20A Switching Power Supplies 5V 20A 125W P/S SINGLE OUTPUT
QPSF-125-12
Qualtek
POWR SUPPLY OPEN FRAME 12V 10.5A Linear and Switching Power Supplies 12V 10.5A 125W P/S SINGLE OUTPUT AC/DC Power Supply Single-OUT 12V 10.5A 125W Carton PowerSupply;AC-DC;12V@10.5A;90-264VIn;OpenFrame;PanelMount;PFC;QPSFSeries
SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG

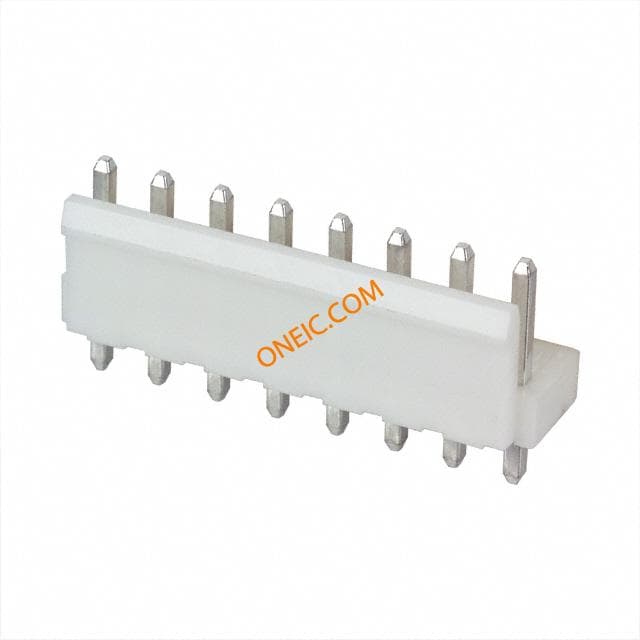

B8P-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH TOP 8POS 3.96MM JST VH Series 3.96mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 10A JST VH Series 3.96mm Pitch 8 Way 1 Row Top Entry PCB Header, Solder Termination, 10A JST VH 系列 3.96mm节距 8路 (1排) 顶入 PCB 针座, 焊接端接, 10A , 通孔

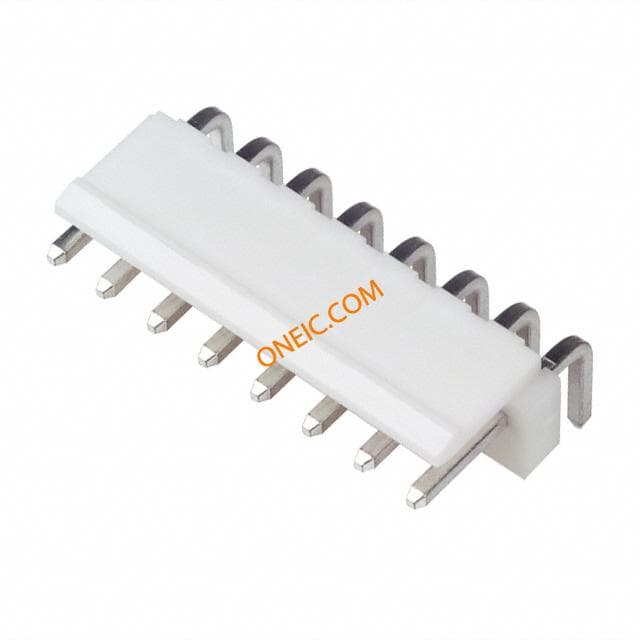

B8PS-VH(LF)(SN)
