VHR-6N
| 制造商 | |
| 描述 | CONN HOUSING VH 6POS 3.96MM WHT Conn Housing PL 6 POS 3.96mm Crimp ST Cable Mount Bag Crimp housing Pitch3.96 mm Poles 6 Single row / Free hanging/cable mount VH, VHR-6N, JST |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 250 | 极数 | 6 |
| 接触电阻 | 10 mOhm | 最大额定电流 | 10 A |
| 绝缘电阻 | 1000 MOhm | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Natural | 深度 | 13.3 mm |
| 间距 | 0.156" (3.96mm) | 高度 | 10.5 mm |
| 包装方式 | Bulk | 导线线规 | 16-22 |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 连接器样式 | Single row | 壳体材料 | Polyamide 6 |
| 总长度 | 23.7 mm | 连接器颜色 | white |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器极性 | Female |
| 线规或范围 - AWG | 22...16 AWG | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | VH |
| 连接方式 | Wire-Board | ||
环境参数
| 工作温度 | -25C to 85C | ||
文档与媒体
相关型号
SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG

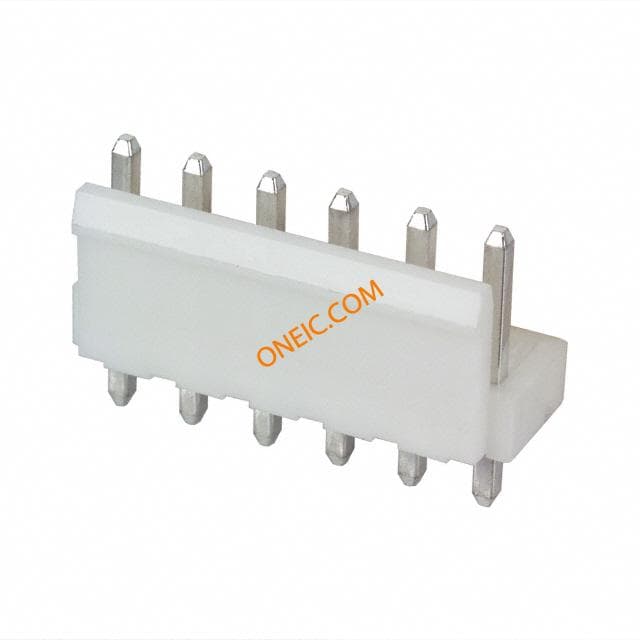

B6P-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH TOP 6POS 3.96MM JST VH Series 3.96mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 10A JST VH Series 3.96mm Pitch 6 Way 1 Row Top Entry PCB Header, Solder Termination, 10A B6P-VH(LF)(SN) JST VH 系列 3.96mm节距 6路 (1排) 顶入 PCB 针座, 焊接端接, 10A , 通孔
B6P-VH-FB-B(LF)(SN)
JST Sales America Inc
CONN HEADER 6POS 3.96MM STR

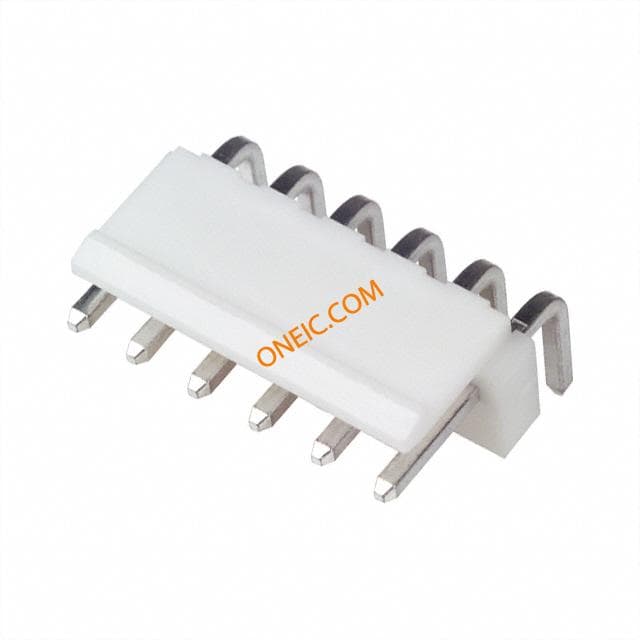

B6PS-VH(LF)(SN)
