点击放大查看
VHR-4N
| 制造商 | |
| 描述 | CONN HOUSING VH 4POS 3.96MM WHT Conn Housing PL 4 POS 3.96mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:4; w/o terminals; 3.96mm; for cable Crimp housing Pitch3.96 mm Poles 4 Single row / Free hanging/cable mount VH, VHR-4N, JST |
| 分类 |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 250V | 极数 | 4 |
| 接触电阻 | 10 mOhm | 最大额定电流 | 10 A |
| 绝缘电阻 | 1000 MOhm | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 13.3 mm |
| 间距 | 0.156" (3.96mm) | 高度 | 10.5 mm |
| 重量 | 0.85 g | 包装方式 | Bulk |
| 导线线规 | 16-22 | 触头类型 | Female Socket |
| 柱间距 | 3.96mm | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 1 | 连接器样式 | Single row |
| 锁定特性 | lock | 壳体材料 | Polyamide 6 |
| 总长度 | 15.78 mm | 包装数量 | 100 |
| 连接器 - 电缆 | plug | 连接器颜色 | white |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器极性 | Female |
| 线规或范围 - AWG | 22...16 AWG | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | VH | 适配器系列 | VH |
| 单元数量 | 1 | 连接方式 | Wire-Board |
环境参数
| 工作温度 | -25C to 85C | ||
文档与媒体
相关型号

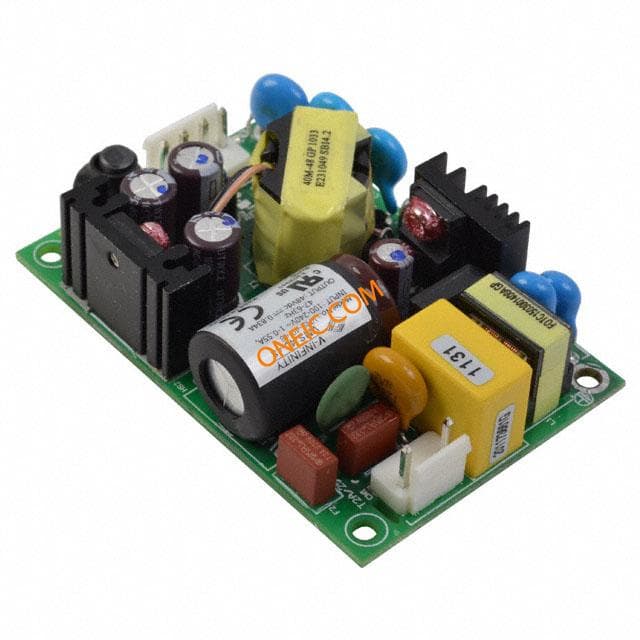

VMS-40-3.3
CUI Inc
PWR SUPP AC/DC 40W 3.3V OUT MED
VMS-60-5
CUI Inc
PWR SUPP AC/DC 60W 5V OUT MED VMS-60 Series 40 W Single Output 5 V Open Frame AC-DC Power Supply
VMS-60-48
CUI Inc
PWR SUPP AC/DC 60W 48V OUT MED
VMS-60-24
CUI Inc
PWR SUPP AC/DC 60W 24V OUT MED
QPS-20-12
Qualtek
PWR SUPPLY OPEN FRAME 12V 1.67A Linear and Switching Power Supplies 12V 1.67A 20W P/S SINGLE OUTPUT Twenty Watts Single Output With Universal AC Input/ Full Range PowerSupply;AC-DC;12V@1.67A;85-264VIn;OpenFrame;PanelMount;QPSSeries
QPS-60-24
Qualtek
POWER SUPPLY OPEN FRAME 24V 2.5A Switching Power Supplies 24V 2.5A 60W P/S SINGLE OUTPUT AC/DC Power Supply Single-OUT 24V 2.5A 60W Carton
QPS-60-12
Qualtek
POWER SUPPLY OPEN FRAME 12V 4.5A Linear and Switching Power Supplies 12V 4.5A 60W P/S SINGLE OUTPUT AC/DC Power Supply Single-OUT 12V 4.5A 60W Carton PowerSupply;AC-DC;12V@4.5A;85-264VIn;OpenFrame;PanelMount;QPSSeries
VMS-40-9
CUI Inc
POWER SUPPLY 40W MEDICAL 9V
VMS-40-30
CUI Inc
POWER SUPPLY 40W MEDICAL 30V
QPS-20-5
Qualtek
POWER SUPPLY OPEN FRAME 5V 4A Linear and Switching Power Supplies 5V 4A 20W P/S SINGLE OUTPUT
VMS-40-12
CUI Inc
PWR SUPP AC/DC 40W 12V OUT MED
QPS-60-48
Qualtek
POWER SUPPLY OPEN FRAME 48V Switching Power Supplies 48V 1.25A 60W P/S SINGLE OUTPUT
SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
B4P-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH TOP 4POS 3.96MM JST VH Series 3.96mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 10A B4P-VH(LF)(SN) JST VH 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 10A , 通孔

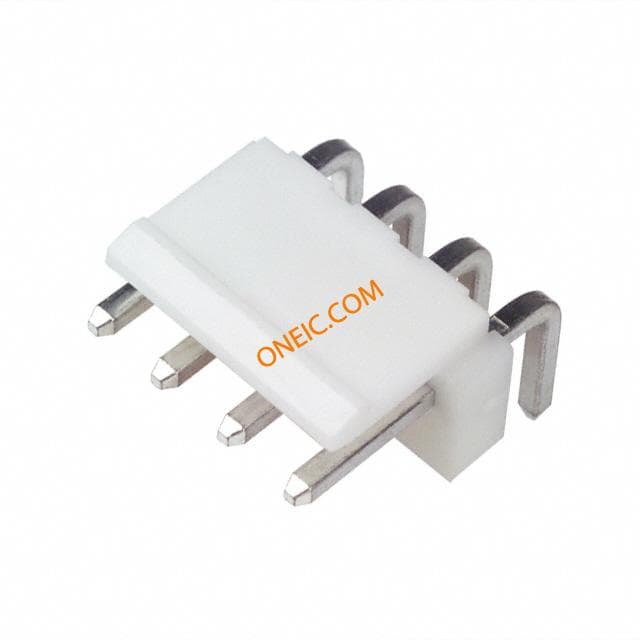

B4PS-VH(LF)(SN)
