点击放大查看

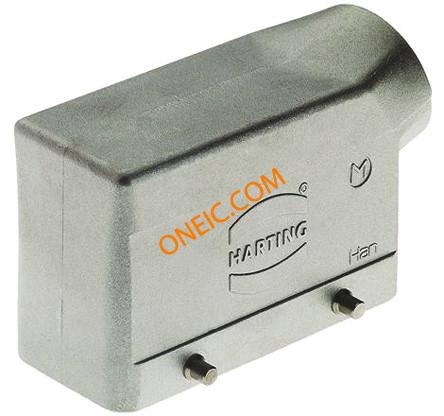

19628101520
| 制造商 | |
| 描述 | Heavy Duty Power Connectors METAL HOOD HAN 10B 2 LVR LCKING HAN EMC/B 10 HOOD SIDE ENTRY M20 Hood side entry Han 10B EMC 1 x 20mm CONN HOOD SIDE ENTRY SZ10B M20 Harting Han EMC 系列 侧入 电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 019 019-62-810-1520 1520 62 810 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
机械参数
| 尺寸 | 10B | 包装方式 | Bulk |
| 方向 | 侧入 | 螺纹尺寸 | M20 x 1.5 |
| 连接器类型 | Hood | 安装样式 | Side |
| 壳体材料 | Metal | 尺寸/外形 | 10B |
产品信息
| 类型 | 连接器护罩 | 样式 | Side Entry |
| 系列 | * | 产品子类型 | Hoods |
| 锁定位置 | Locking Clip on Base Bottom | 附件类型 | Side Entry Hood |
| 加载位置数 | 2 | 适用产品/相关产品 | Heavy Duty Power Connector |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
