点击放大查看

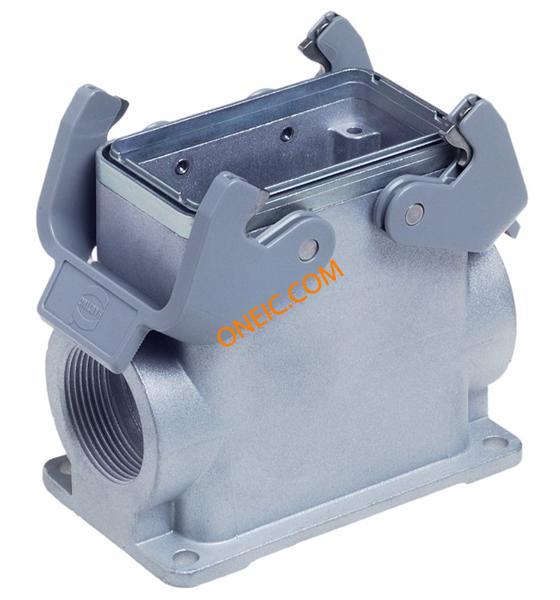

19628101271
| 制造商 | |
| 描述 | Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 10B 2 SIDE ENTRY HAN EMC/B 10 SM BASE 2 X M25 CONN BASE SIDE ENTRY SZ10B M25 |
| 分类 |
商业参数
| 零件号别名 | 019 019-62-810-1271 1271 62 810 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | 10B | 包装方式 | Bulk |
| 螺纹尺寸 | M25 | 连接器类型 | Base - Box Mount |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 3.701" L x 2.047" W x 2.165" H (94.00mm x 52.00mm x 55.00mm) |
产品信息
| 样式 | Side Entry | 系列 | * |
| 产品特性 | Feed Through | 产品子类型 | Receptacle Housings |
| 锁定位置 | Locking Clip on Base Bottom | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
