点击放大查看

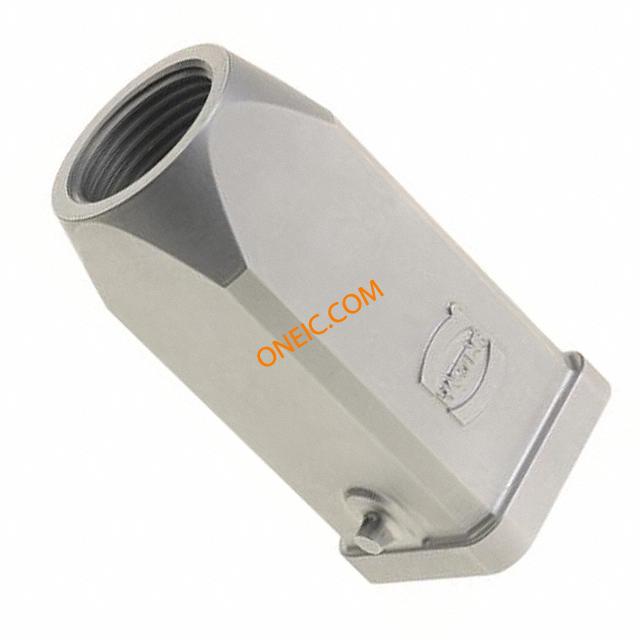

19440031440

制造商	HARTING Technology Group
描述	HAN INOX 3A HOOD TE M20 Top entry Hood without seal Han INOX Heavy Duty Power Connectors HAN INOX 3A-GG-M20 HANINOX3A-GG-M20 Enclosure: for Han connectors; Han; size 3A; for cable; for latch Han Inox Hoods: Han INOX 3A-gg-M20 Harting HAN INOX 系列顶入电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3191	零件号别名	003 019 019-44-003-1440 1440 44
标准包装数量	1	工厂包装数量	1

合规参数

RoHS

Compliant

电气参数

频率

Central Locking Clip on Base Bottom

机械参数

尺寸	3A	重量	0.07 kg
包装方式	Bulk	壳体颜色	inox
方向	straight	螺纹尺寸	M20
衬套螺纹	M20	连接器类型	Hood
安装样式	Top	封装形式	size 3A
锁定特性	for latch	壳体材料	Stainless Steel
尺寸/外形	1.051" L X 1.051" W x 2.356" H (26.70mm x 26.70mm x 59.85mm)	端接样式	Cable
触点数	1	供应商器件封装	for Han connectors
外壳与棱镜材料	stainless steel

产品信息

类型	CONNECTORS	样式	Top Entry
系列	Han-INOX 3A	CAD图纸	3D CAD Model
产品子类型	Hoods	锁定位置	Central Locking Clip on Base Bottom
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
