点击放大查看

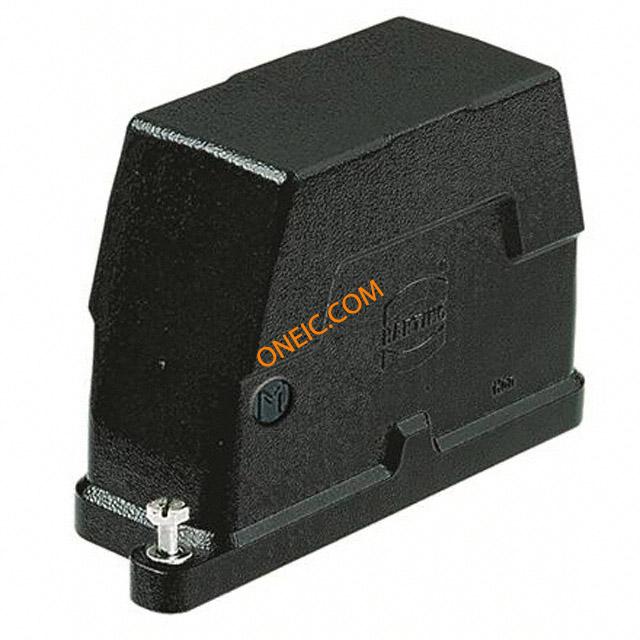

19400240513

制造商	HARTING Technology Group
描述	HAN 24 HPR HOOD SE M40 SCREW Heavy Duty Power Connectors METAL HOOD HAN 24B SCW LCKING Han HPR Hoods: Han 24 HPR Hood SE M40 Screw Lock Harting Han HPR 系列电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3165	零件号别名	019 019-40-024-0513 024 0513 40
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	24B	包装方式	Bulk
螺纹尺寸	M40	外壳颜色	Black
连接器类型	Hood	外壳涂层	Epoxy Powder Paint
安装样式	Side Entry	壳体材料	Aluminum, Die Cast
尺寸/外形	7.559" L x 2.283" W x 4.350" H (192.00mm x 58.00mm x 110.50mm)	触点数	1

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han HPR	产品子类型	Inlets
锁定位置	Screw Locks on Hood	基础产品编号	1940

环境参数

防护等级

IP68/69K - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C
