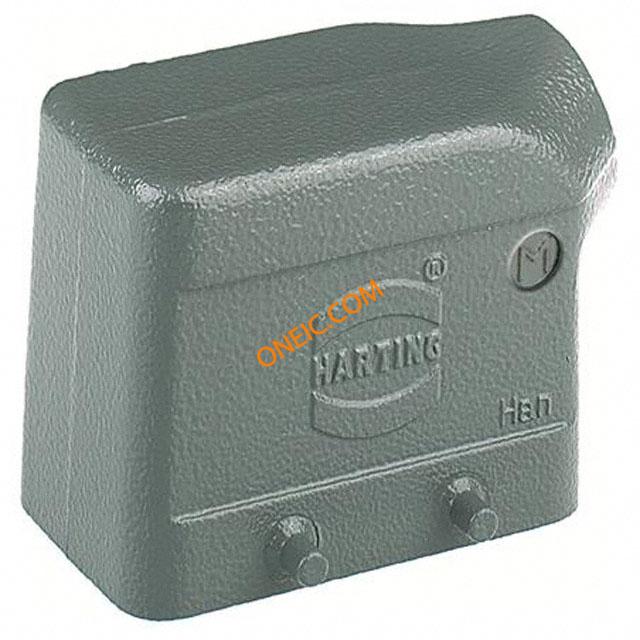

19300101521

制造商	HARTING Technology Group
描述	HAN 10B HOOD SE LC M25 Heavy Duty Power Connectors METAL HOOD HAN 10B 2 LVR LCKING HAN 10B HOOD SIDE ENTRY LC 4 PEG M25 HAN10BHOODSIDEENTRYLC4PEGM25 Enclosure: for rectangular connectors; Han; size 10B; for cable Han B Hoods: Han 10B Hood SE LC M25 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3112	零件号别名	010 019 019-30-010-1521 1521 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Compliant

机械参数

尺寸	10B	重量	0.15 kg
包装方式	Bulk	方向	angled
螺纹尺寸	M25	重量（g）	139.00000
外壳颜色	Gray	衬套螺纹	M25
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Side	封装形式	size 10B
插入力	Female	锁定特性	for double latch
壳体材料	Aluminum, Die Cast	包装数量	2
尺寸/外形	2.858" L x 1.693" W x 2.244" H (72.60mm x 43.00mm x 57.00mm)	端接样式	Cable
触点数	1	供应商器件封装	for rectangular connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	CONNECTORS
样式	Side Entry	系列	Han B
产品子类型	Hoods	锁定位置	Locking Clip on Base Bottom
适配器系列	Han	单元数量	1
基础产品编号	1930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09380082701

Harting Technology Group

CONN FEMALE INSERT 4+4 POLES +PE 690V 63A WITHOUT PIN 4 Heavy Duty Power Connectors FEMALE INSERT HAN 10B SCW TERM HAN K4/4-F FINGER PROT Han K Female Insert: Han K4/4-F 6-16mm Finger prot Harting Han Com 系列 2行 4针插座电源连接器

¥394.3983

详情

09330102701

Harting Technology Group

Conn Rectangular F 10Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 10P F SCREW SCREW TERMINATION HAN E 10 POS. F INSERT SCREW Han(R) E 10P skt insert,16A 500V PowerConnectorInsert;Female;10 HanE10Pos.FInsertScrew Connector: HAN; female; E; PIN:10; 10+PE; size 10B; screw terminal Han E Female Insert: Han E 10 Position F Insert Screw Harting Han E 系列 2行 10针 10P+E极插座插片

¥41.1600

详情

09330102702

Harting Technology Group

Conn Housing F 10 POS Crimp ST Panel Mount HAN 10E INSERT FEMALE CRIMP Han E 10P+E insert for skt contact,16A Heavy Duty Power Connectors HAN E 10P F CRIMP ORDER CONTACTS SEP HAN INSERT, RECEPTACLE, 10WAY, CRIMP Han10Einsertfemalecrimp Connector: HAN; female; Han E; PIN:10; 10+PE; size 10B; crimped; 16A Han E Female Insert- Crimp: Han 10E insert female crimp Harting Han E 系列 2行 10针插座电源连接器

¥29.6725

详情

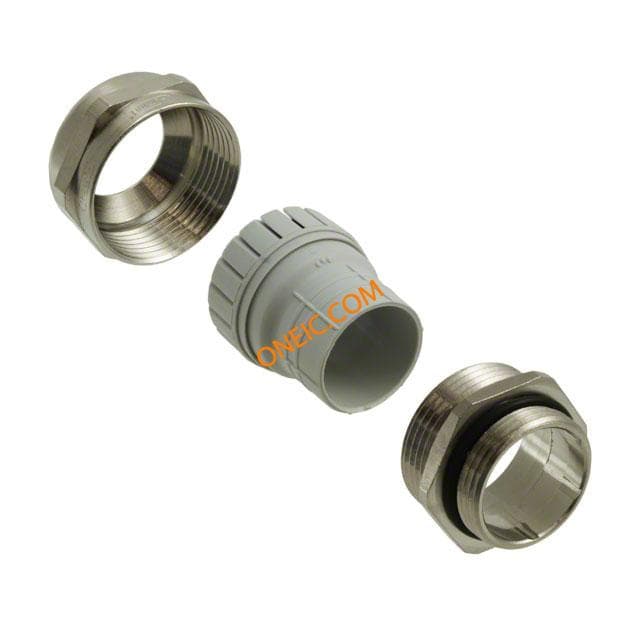

19000005092

Harting Technology Group

Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M25 BRASS 13-18mm CAB DIA IP68 CBL CLAMP M25 13-18MM BRASS IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CBLCLAMPM2513-18MMBRASSIP68 Cable Glands metal: Cable clamp M25, 13-18mm, brass, IP 68 Harting IP68 金属金属电缆固定头 , 13mm 至 18mm电缆直径, -40°C至+125°C, M25螺纹

¥39.1295

详情

09320183101

Harting Technology Group

Conn Housing F 19 POS Crimp ST Heavy Duty Power Connectors HAN EE 18P F CRIMP ORDER CONTACTS SEP HAN EE 18POS INSERT FEMALE CRIMP HanEE18Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:18; w/o terminals; 500V Han EE Female insert Crimp: Han EE 18 Position Insert Female Crimp Harting Han EE 系列 4行 18针 18P+E极插座插片

¥59.5625

详情

09160423101

Harting Technology Group

Conn Housing F 42Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 42P F CRIMP ORDER CONTACTS SEP HAN DD 42 POS. F INSERT CRIMP Han(R) DD 42P+E socket insert,10A 250Vac PowerConnectorInsert;Female;42 Connector: HAN; female; Han DD; PIN:42; 42+PE; size 10B; UL94V-0 Han DD Female Insert: Han DD 42 Position F Insert Crimp Harting Han DD 系列 6行 43针插座电源连接器

¥80.4424

详情

09330102716

Harting Technology Group

Conn Housing F 10 POS Crimp ST Heavy Duty Power Connectors HAN ES 10B 10P FEMAL CAGE-CLAMP TERM HAN 10 ES-F INSERT Han ES 10P cageclamp skt insert,16A 500V HANES10-WAYC/CLAMPSKT HeavyDutyPowerConnector;HANES10B10PFEMALECAGE-CLAMPTERM Connector: HAN; female; Han ES; PIN:10; 10+PE; size 10B; 16A; 500V Han E Female Insert: Han 10 ES-F insert Harting Han ES 系列 2行 10针插座电源连接器

¥66.3294

详情

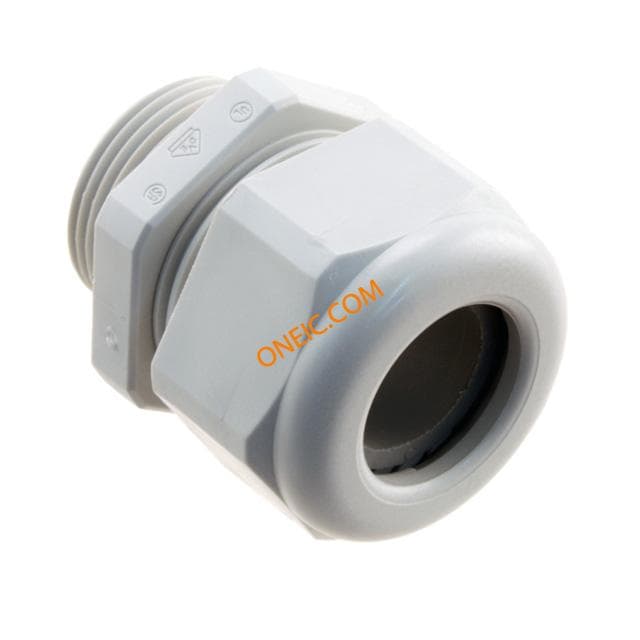

19000005190

Harting Technology Group

CABLE GLAND PLASTIC Heavy Duty Power Connectors Cable Clamp M25 IP68 9-16mm Plastic CBL CLAMP M25 9-16MM PLAST IP68 CABLECLAMPM25,9-16MM,PLASTIC,IP68 Gland; M25; IP68; Dcable:9÷16mm; Mat: thermoplastic; Spanner:33mm Harting IP68 灰色热塑塑料电缆固定头 , 9mm 至 16mm电缆直径, -40°C至+125°C, M25螺纹

¥31.0352

详情

09330102616

Harting Technology Group

Conn Rectangular M 10 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 10P MALE CAGE-CLAMP TERM HAN ES 10 POS. M INSERT Han ES 10P cageclamp plg insert,16A 500V HANES10POS.MINSERT Connector: HAN; male; Han ES; PIN:10; 10+PE; size 10B; spring clamp Han E Male Insert: Han ES 10 Position M Insert Harting Han ES 系列 2行 10针插头电源连接器

¥117.7800

详情

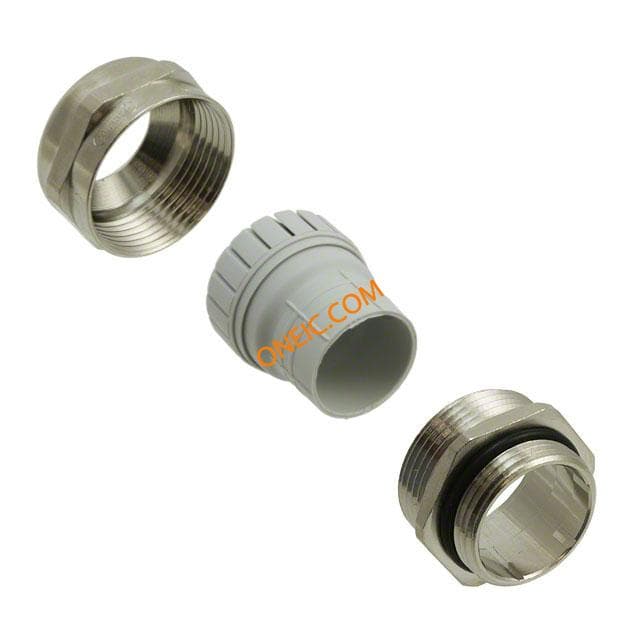

19000005090
