点击放大查看

19300101290

制造商	HARTING Technology Group

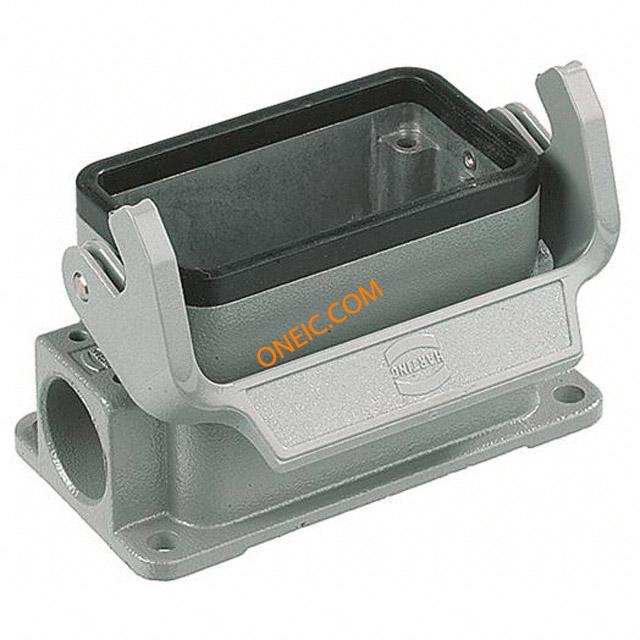

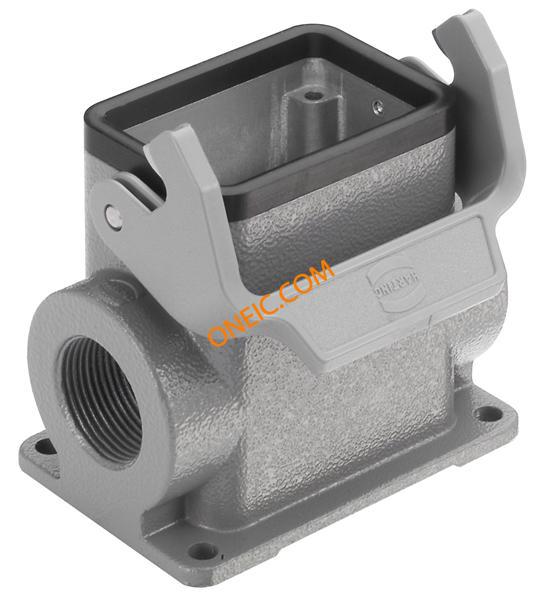

描述	HAN B BASE SM LC 1 LEVER 2XM20 Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 10B 2 SIDE ENTRY HanBBaseSMLC1lever2xM20 Han B Housings: Han B Base SM LC 1 lever 2 x M20 Harting Han B 系列电源连接器 , 表面安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3106	零件号别名	010 019 019-30-010-1290 1290 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	10B	包装方式	Bulk
螺纹尺寸	M20	外壳颜色	Gray
安装类型	表面安装	连接器类型	Base - Box Mount
外壳涂层	Powder Coated	安装样式	Side Entry
壳体材料	Aluminum, Die Cast	尺寸/外形	3.701" L x 2.047" W x 2.118" H (94.00mm x 52.00mm x 53.80mm)
触点数	2

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han B	产品特性	Feed Through
产品子类型	Receptacle Housings	锁定位置	Side Clip on Base Bottom
基础产品编号	1930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
