点击放大查看

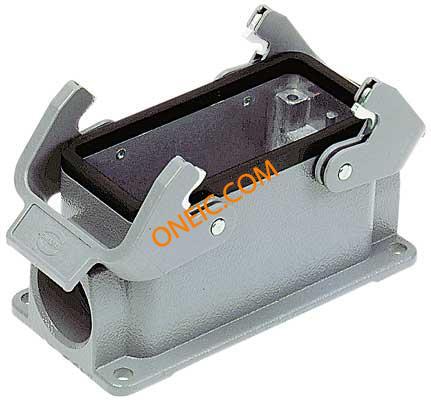

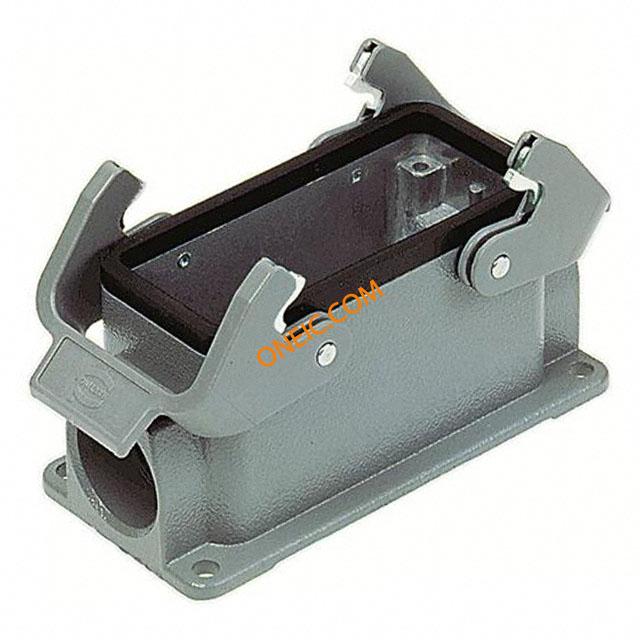

19300101270

制造商	HARTING Technology Group
描述	HAN B BASE SURFACE LC 2 LEVERS Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 10B 2 SIDE ENTRY PANEL SOCKET HAN 10B 2 M20 PANELSOCKETHAN10B2M20 Enclosure: for Han connectors; Han; size 10B; with double latch Han B Housings: Han B Base Surface LC 2 Levers 2 x M20 Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3105	零件号别名	010 019 019-30-010-1270 1270 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Compliant

机械参数

尺寸	10B	重量	0.23 kg
包装方式	Bulk	螺纹尺寸	M20
外壳颜色	Gray	安装类型	flange (4 holes), on panel, on cable
衬套螺纹	M20	连接器类型	Base - Box Mount
外壳涂层	Powder Coated	封装形式	size 10B
锁定特性	with double latch	壳体材料	Aluminum, Die Cast
尺寸/外形	3.701" L x 2.047" W x 2.118" H (94.00mm x 52.00mm x 53.80mm)	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han B	产品特性	Feed Through
CAD图纸	3D CAD Model	产品子类型	Receptacle Housings
锁定位置	Locking Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1
加载位置数	2

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

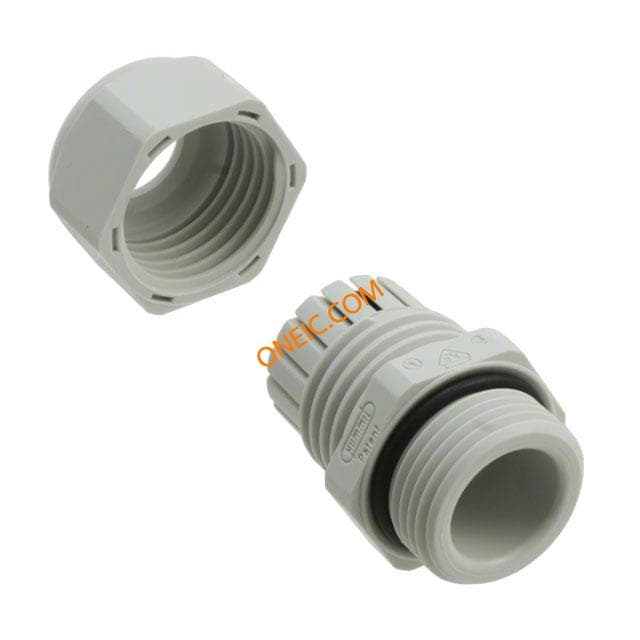

19000005182

HARTING

Heavy Duty Power Connectors cable clamp 20M Cable Accessories Cable Gland Plastic White CBL CLAMP M20 6-12MM PLAST IP68 CableclampM20,6-12mm,plastic,IP68

¥18.1200

详情

09330102701

Harting Technology Group

Conn Rectangular F 10Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 10P F SCREW SCREW TERMINATION HAN E 10 POS. F INSERT SCREW Han(R) E 10P skt insert,16A 500V PowerConnectorInsert;Female;10 HanE10Pos.FInsertScrew Connector: HAN; female; E; PIN:10; 10+PE; size 10B; screw terminal Han E Female Insert: Han E 10 Position F Insert Screw Harting Han E 系列 2行 10针 10P+E极插座插片

¥41.1600

详情

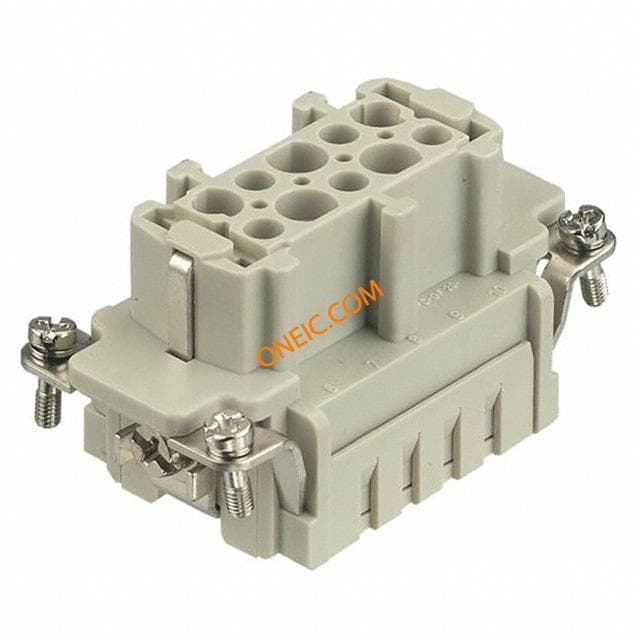

09330102702

Harting Technology Group

Conn Housing F 10 POS Crimp ST Panel Mount HAN 10E INSERT FEMALE CRIMP Han E 10P+E insert for skt contact,16A Heavy Duty Power Connectors HAN E 10P F CRIMP ORDER CONTACTS SEP HAN INSERT, RECEPTACLE, 10WAY, CRIMP Han10Einsertfemalecrimp Connector: HAN; female; Han E; PIN:10; 10+PE; size 10B; crimped; 16A Han E Female Insert- Crimp: Han 10E insert female crimp Harting Han E 系列 2行 10针插座电源连接器

¥29.6725

详情

09160423101

Harting Technology Group

Conn Housing F 42Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 42P F CRIMP ORDER CONTACTS SEP HAN DD 42 POS. F INSERT CRIMP Han(R) DD 42P+E socket insert,10A 250Vac PowerConnectorInsert;Female;42 Connector: HAN; female; Han DD; PIN:42; 42+PE; size 10B; UL94V-0 Han DD Female Insert: Han DD 42 Position F Insert Crimp Harting Han DD 系列 6行 43针插座电源连接器

¥80.4424

详情

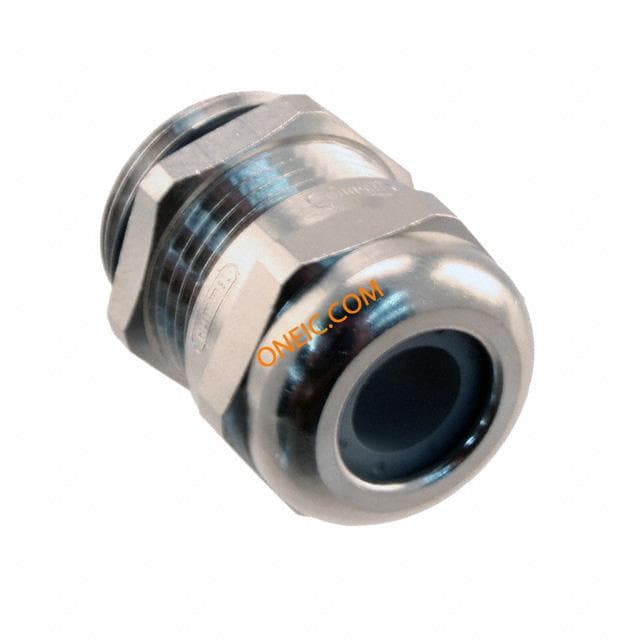

19000005080

Harting Technology Group

Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M20 BRASS 5-9mm CABLE DIA IP68 CBL CLAMP M20 5-9MM BRASS IP68 CABLE CLAMP, M20, 5-9MM CABLECLAMPM20,5-9MM,BRASS,IP68 Cable Glands metal: Cable clamp M20, 5-9mm, brass, IP 68

¥48.0488

详情

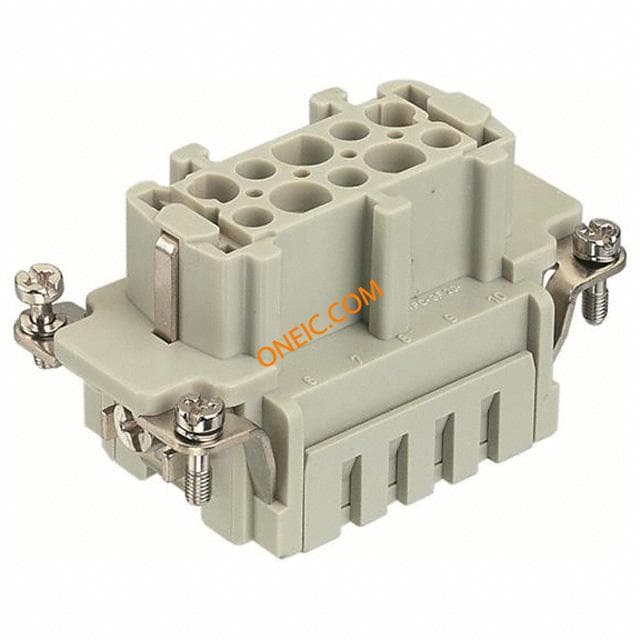

09330102716

Harting Technology Group

Conn Housing F 10 POS Crimp ST Heavy Duty Power Connectors HAN ES 10B 10P FEMAL CAGE-CLAMP TERM HAN 10 ES-F INSERT Han ES 10P cageclamp skt insert,16A 500V HANES10-WAYC/CLAMPSKT HeavyDutyPowerConnector;HANES10B10PFEMALECAGE-CLAMPTERM Connector: HAN; female; Han ES; PIN:10; 10+PE; size 10B; 16A; 500V Han E Female Insert: Han 10 ES-F insert Harting Han ES 系列 2行 10针插座电源连接器

¥211.8662

详情

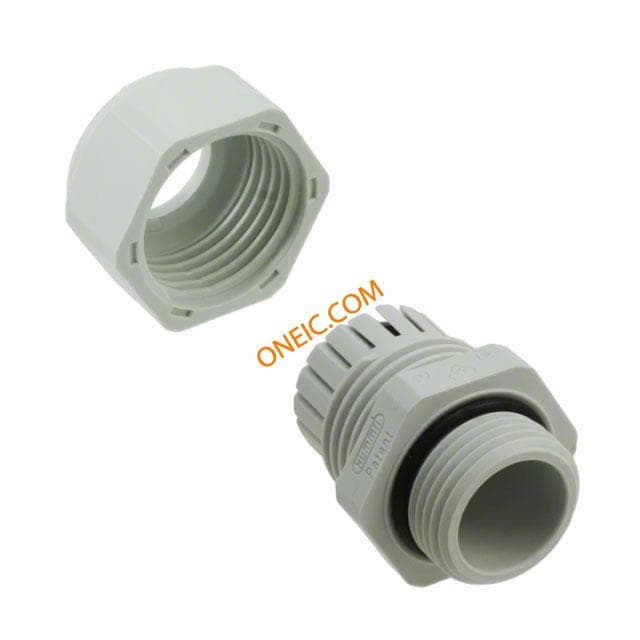

19000005184

Harting Technology Group

Cable Accessories Cable Gland Plastic Heavy Duty Power Connectors UNIV. CABLE PROTECT CBL CLAMP M20 10-14MM PLAST IP68 CableclampM20,10-14mmPlasti Gland; M20; IP68; Dcable:10÷14mm; Mat: thermoplastic; Spanner:27mm

¥37.2645

详情

09330102616

Harting Technology Group

Conn Rectangular M 10 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 10P MALE CAGE-CLAMP TERM HAN ES 10 POS. M INSERT Han ES 10P cageclamp plg insert,16A 500V HANES10POS.MINSERT Connector: HAN; male; Han ES; PIN:10; 10+PE; size 10B; spring clamp Han E Male Insert: Han ES 10 Position M Insert Harting Han ES 系列 2行 10针插头电源连接器

¥117.7800

详情

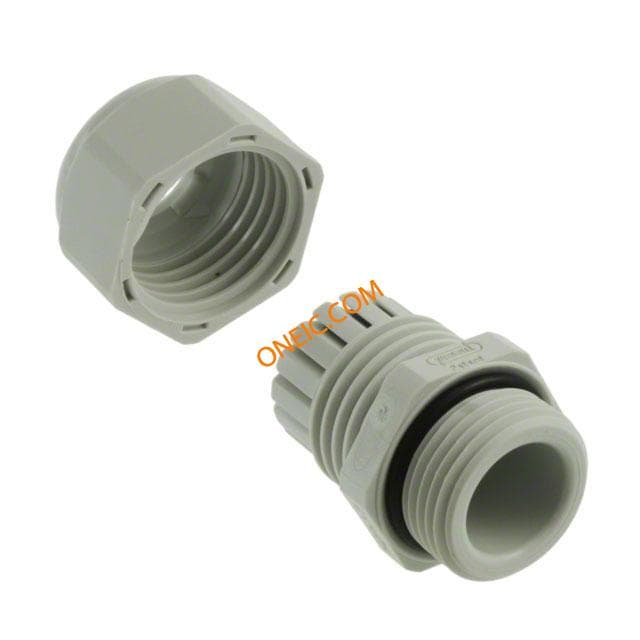

19000005180

Harting

CBL CLAMP M20 5-9MM PLASTIC IP68 Heavy Duty Power Connectors UNI CBL PROTECTION WH THERMOPLASTIC CableclampM20,5-9mm,plastic,IP68

¥25.1433

详情

19000005082

Harting

CBL CLAMP M20 6-12MM BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M20 BRASS 6-12mm CABL DIA IP68 CABLE CLAMP, M20, 6-12MM CableclampM20,6-12mm,brass,IP68 Gland; M20; IP68; Dcable:6÷12mm; Mat: metal; Spanner:22mm Cable Glands metal: Cable clamp M20, 6-12mm, brass, IP 68

¥35.7204

详情

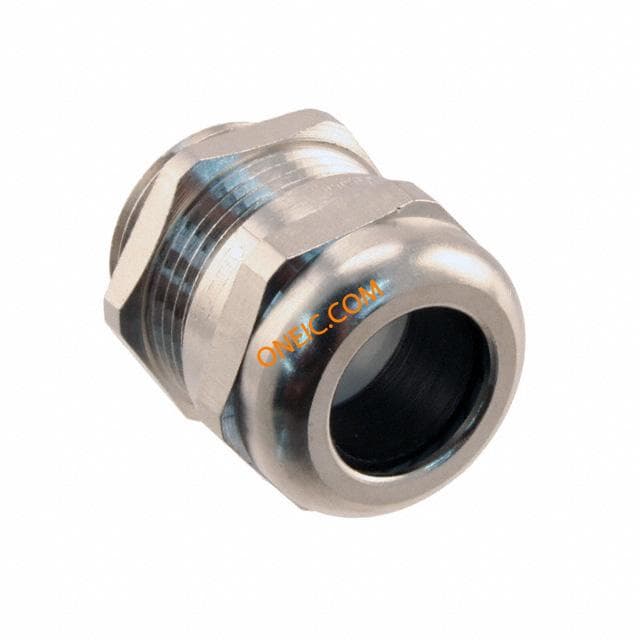

19000005084
