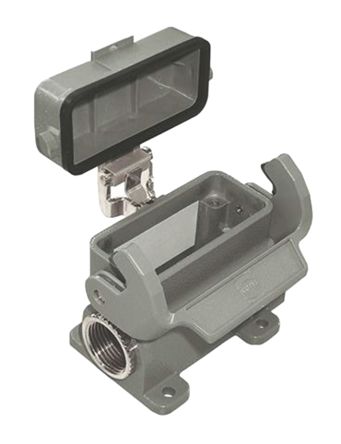

点击放大查看

19200100295

制造商	HARTING Technology Group
描述	Heavy Duty Power Connectors SURFACE MOUNTING HSG 2 SIDE ENTRIES HAN A BASE SURFACE HC 1 LEVER 2 CONN BASE SIDE ENTRY SZ10A M20 Han A standard metal housing, size 10 A, base surface HC 1 Lever 2 Entries Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 019 019-20-010-0295 0295 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	10A	包装方式	Bulk
螺纹尺寸	M20	外壳颜色	Gray
连接器类型	Base - Box Mount	外壳涂层	Powder Coated
壳体材料	Aluminum, Die Cast	尺寸/外形	2.929" L x 1.969" W x 2.047" H (74.40mm x 50.00mm x 52.00mm)

产品信息

类型	CONNECTORS	样式	Side Entry
系列	*	产品特性	Cover, Feed Through
产品子类型	Receptacle Housings	锁定位置	Side Clip on Base Bottom
基础产品编号	1920000

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
