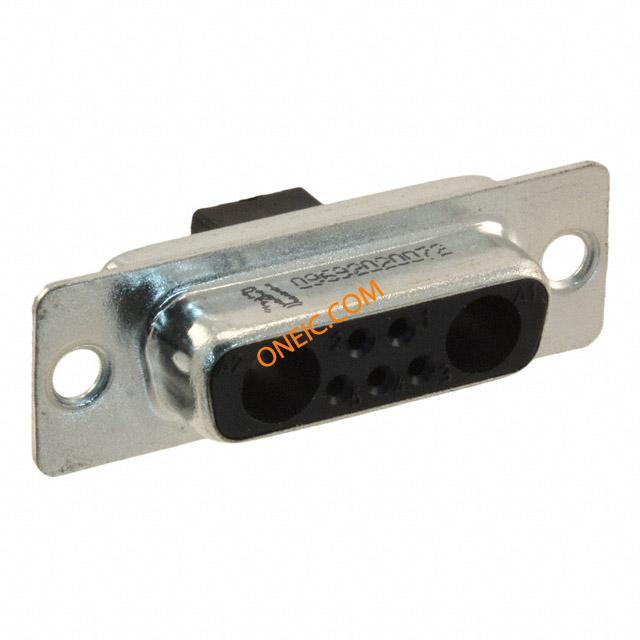

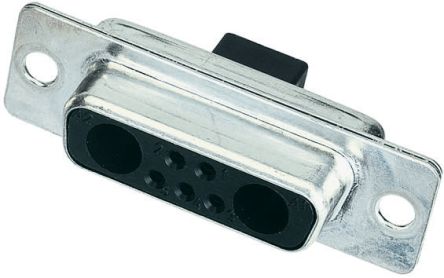

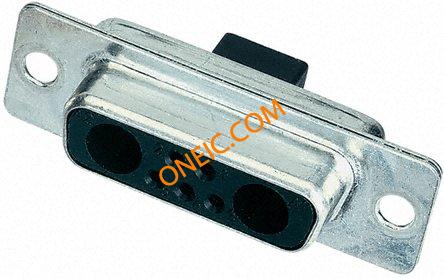

09692020072
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors DSUB FE 7W2 CRIMP INS DSUB FE 7W2 CRIMP INSULATOR D-Sub Mixed Connector 7W2 F D-SubMixedConnector7W2F Harting 2（功率/同轴），5（信号）路 直 混合压接 D-Sub 连接器, 插座 |
| 分类 |
商业参数
| 零件号别名 | 0072 09 09-69-202-0072 202 69 | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 深度 | 16.9mm | 宽度 | 12.5mm |
| 长度 | 39.1mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Coax or Power and Signal |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 2 | 连接器样式 | D-Sub, Combo |
| 壳体材料 | Steel | 尺寸/外形 | 39.1 x 12.5 x 16.9mm |
| 端接样式 | Crimp | 触点数 | 7 |
| 介电材料 | Polyester, Glass Filled | 位数 | 7 (5 + 2 Coax or Power) |
| 外壳材料及表面处理 | Steel, Tin Plated | 典型触点布局 | 7W2 |
| 外壳尺寸，连接器布局 | 2 (DA, A) - 7W2 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
