点击放大查看

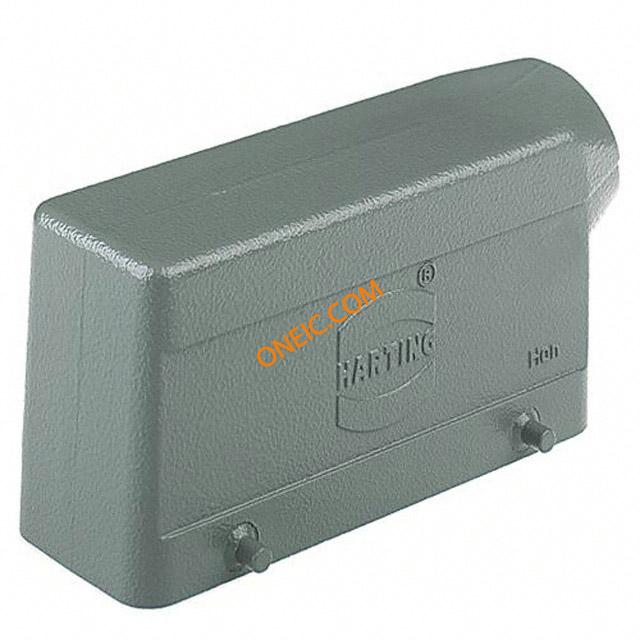

09300241520

制造商	HARTING Technology Group

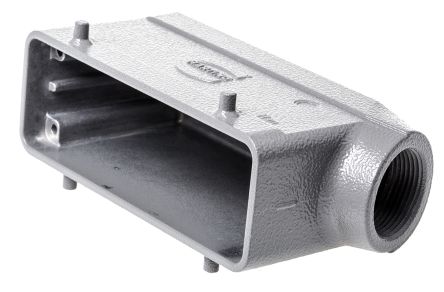

描述	HAN B HOOD SIDE LC 4 PEGS PG 21 Heavy Duty Power Connectors HAN 24B PG21 SIDE METAL HOOD Lo type side entry hood for 2 lever,PG21 Hood;Metal;120mm;56mm;62.5mm;Pg21CableEntry Enclosure: for Han connectors; Han; size 24B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 4 Pegs PG 21 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 09 09-30-024-1520 1520 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	24B	重量	0.22 kg
包装方式	Bulk	方向	angled
螺纹尺寸	PG21	重量（g）	234.00000
外壳颜色	Gray	安装类型	on cable
衬套螺纹	PG21	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Side
封装形式	size 24B	锁定特性	for double latch
壳体材料	Aluminum, Die Cast	包装数量	2
尺寸/外形	4.724" L x 1.693" W x 2.461" H (120.00mm x 43.00mm x 62.50mm)	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	CONNECTORS
样式	Side Entry	系列	Han EEE
产品子类型	Hoods	锁定位置	Locking Clip on Base Bottom
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09330242702

Harting Technology Group

Conn Housing F 25 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN E 24P F CRIMP ORDER CONTACTS SEP HAN E 24 POS. F INSERT CRIMP RECTANGULAR HAN INSERT, FEM, 24WAY CRIMP HANE24POS.FINSERTCRIMP Connector: HAN; female; Han E; PIN:24; 24+PE; size 24B; crimped; 16A Han E Female Insert- Crimp: Han E 24 Position F Insert Crimp

¥108.7200

详情

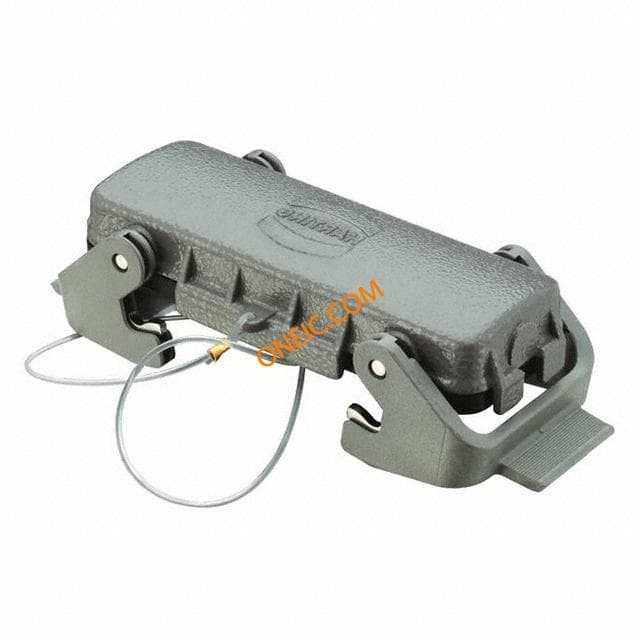

09300245422
