点击放大查看

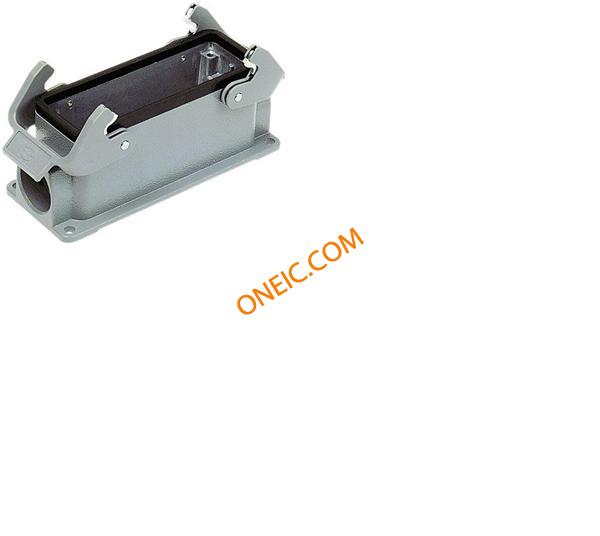

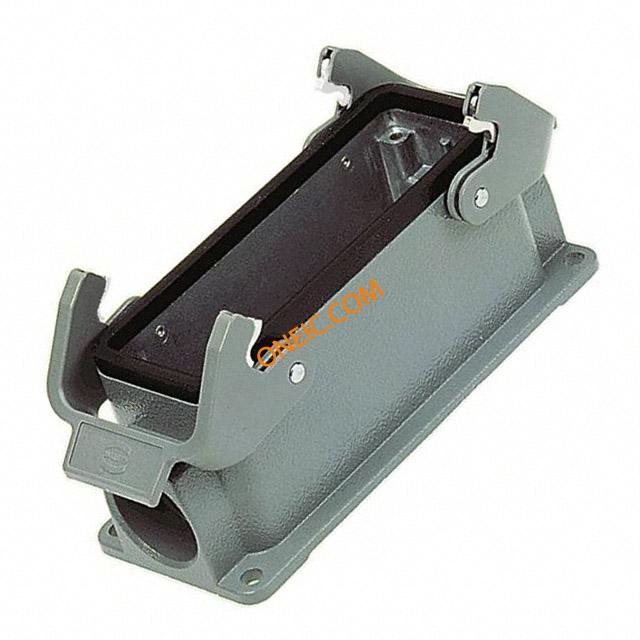

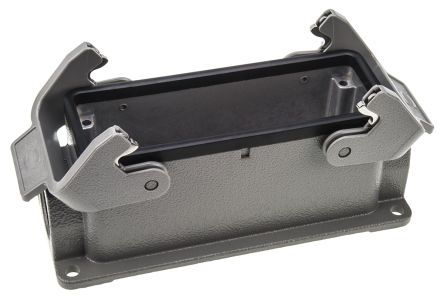

09300241230

制造商	HARTING Technology Group
描述	HAN B BASE LC 2 LEVERS 1 P Heavy Duty Power Connectors HAN 24B SURFACE MT METAL 1 SIDE ENTRY Low type surface housing w/ 2 lever,PG21 24BSURFACEHOUSING Han B Housings: Han B Base Surface LC 2 Levers 1 Entry P Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 09 09-30-024-1230 1230 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	24B	包装方式	Bulk
螺纹尺寸	PG21	外壳颜色	Gray
连接器类型	Base - Box Mount	外壳涂层	Powder Coated
插入力	Female	壳体材料	Aluminum, Die Cast
尺寸/外形	5.669" L x 2.244" W x 2.205" H (144.00mm x 57.00mm x 56.00mm)	端接样式	Cable
触点数	8

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han Snap	产品子类型	Housings
锁定位置	Locking Clip on Base Bottom

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
