点击放大查看

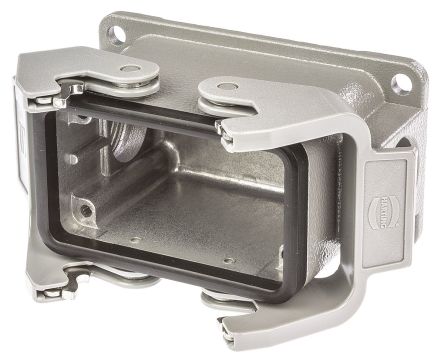

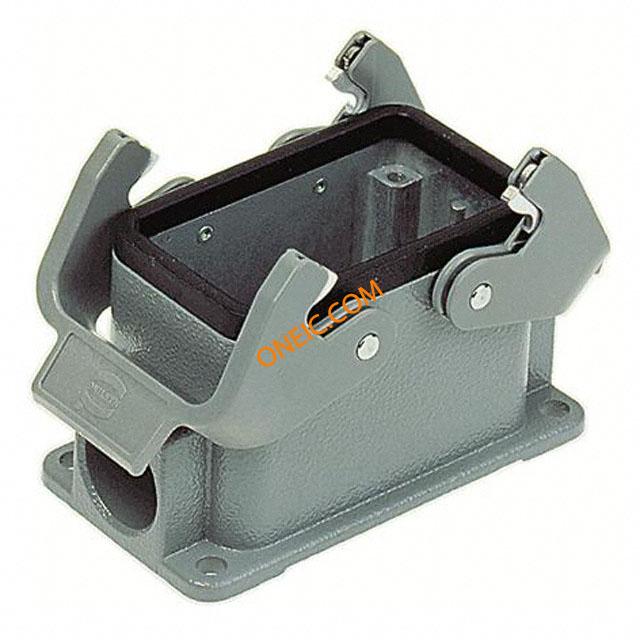

09300101231

制造商	HARTING Technology Group
描述	HAN B BASE LC 2 LEVERS 1 P Heavy Duty Power Connectors HAN 10B PG16 SIDE METAL SURF MT Low type surface housing,1xPG16 size 10B 10BSURFACEHOUSING Enclosure: for Han connectors; Han; size 10B; with double latch Han B Housings: Han B Base Surface LC 2 Levers 1 Entry P Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 09 09-30-010-1231 1231 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

连接器类型 - 电压输入

closed

机械参数

尺寸	10B	重量	0.23 kg
包装方式	Bulk	螺纹尺寸	PG16
外壳颜色	Gray	安装类型	flange (4 holes), on panel, on cable
衬套螺纹	PG16	连接器类型	Base - Box Mount
外壳涂层	Powder Coated	安装样式	Straight
封装形式	size 10B	插入力	Female
锁定特性	with double latch	壳体材料	Aluminum, Die Cast
包装数量	3	尺寸/外形	3.701" L x 2.047" W x 2.118" H (94.00mm x 52.00mm x 53.80mm)
端接样式	Cable	触点数	1
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	3	类型	CONNECTORS
样式	Side Entry	系列	Han B
产品子类型	Hoods	锁定位置	Locking Clip on Base Bottom
适配器系列	Han	单元数量	1
加载位置数	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
