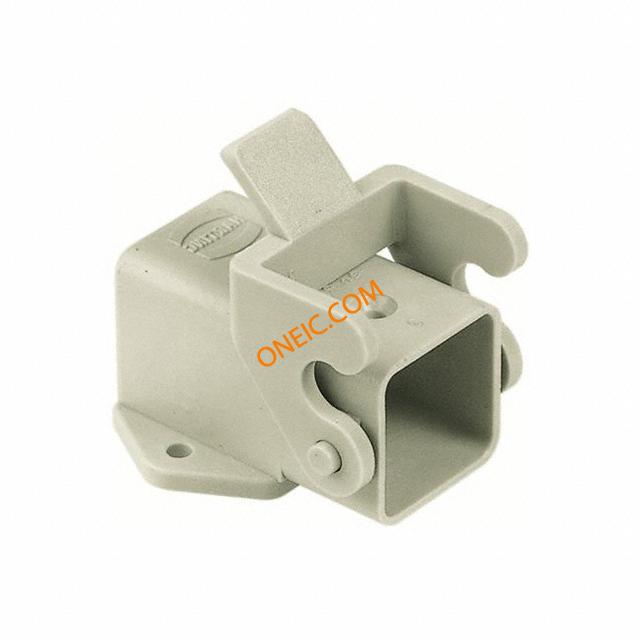

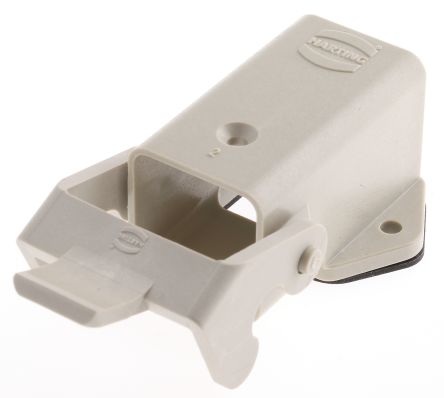

09200030820

制造商	HARTING Technology Group
描述	HAN A BASE ANGLED THERMO 1 LEVER Heavy Duty Power Connectors HAN 3A ANGL BULKHEAD 1 LEVER PLASTC W/CVR Enclosure: for Han connectors; Han; size 3A; with lock; -40÷125°C Han A Housings: Han A Base Angled Thermoplastic 1 Lever Harting Han A 系列侧入电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0820 09 09-20-003-0820 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	重量	0.02 kg
包装方式	Bulk	壳体颜色	grey
方向	angled 90°	外壳颜色	Gray
连接器类型	Base - Panel Mount 90°	外壳涂层	Powder Coated
安装样式	flange (2 holes), for panel mounting	封装形式	size 3A
插入力	Female	锁定特性	with lock
壳体材料	Zinc, Die Cast	包装数量	10
尺寸/外形	1.752" L x 1.102" W x 1.043" H (44.50mm x 28.00mm x 26.50mm)	端接样式	Cable
触点数	12	供应商器件封装	for Han connectors
外壳与棱镜材料	polycarbonate

产品信息

SPG	10	类型	CONNECTORS
样式	Side Entry	系列	Han Q
产品子类型	Housings	锁定位置	Central Locking Clip on Base Bottom
适配器系列	Han	单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
