点击放大查看

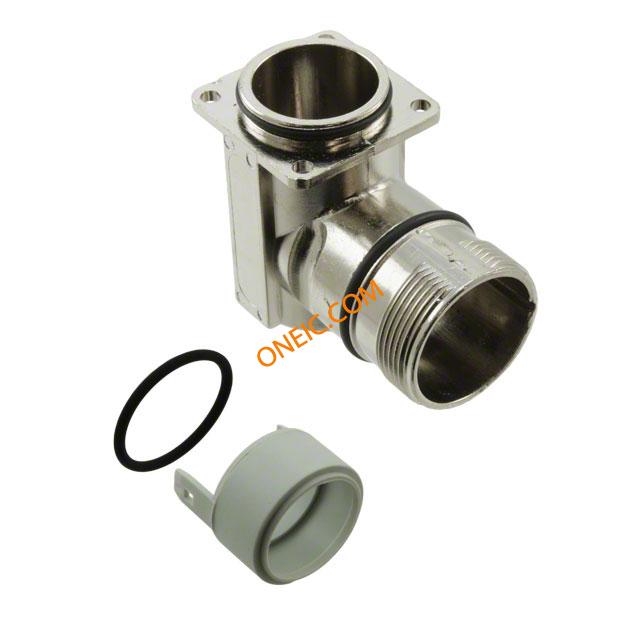

09152000901
| 制造商 | |
| 描述 | HAN R23 BULKHEAD MOUNTED ANGLED Heavy Duty Power Connectors STD RA METAL HSG CONN HSG INSERT SHELL PNL MNT RA Han R23 Housings: Han R23 Bulkhead mounted angled Chassis shell R23 angled 4 x ø 2.7mm, 09152000901, HARTING |
| 分类 |
商业参数
| 零件号别名 | 09 09-15-200-0901 0901 15 200 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 安装类型 | Panel Mount, Right Angle | 连接器类型 | Insert Shell |
| 紧固类型 | Threaded | 外壳材料及表面处理 | Copper Zinc Alloy, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 类型 | CONNECTORS |
| 系列 | Han R 23 | 描述 | Chassis shell R23 angled 4 x ø 2.7mm |
| 产品子类型 | Accessories | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
