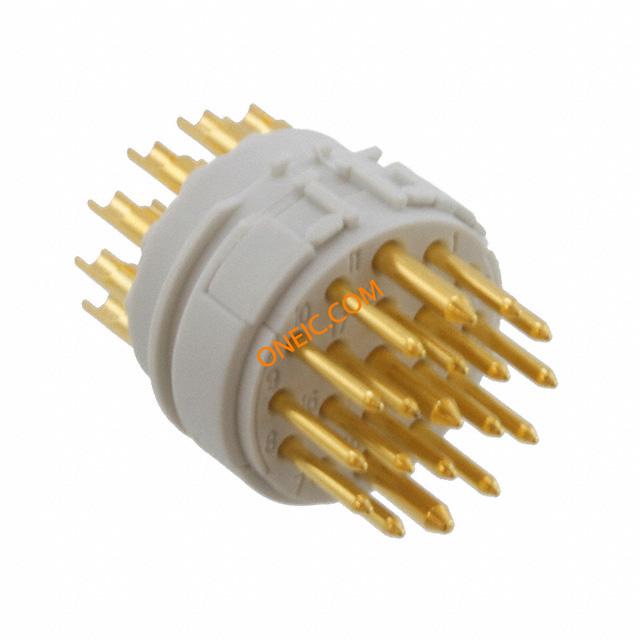

点击放大查看
09152192603
| 制造商 | |
| 描述 | Conn Circular M 19 POS Solder Cup ST Cable Mount 19 Terminal 1 Port Heavy Duty Power Connectors MALE INSERT METAL SOLDER TERM CONN INSERT 19POS SLD CUP PIN Han R23 Male Insert: Han R23 Position 19 M Insert Solder Insert male solder 19, 09152192603, HARTING |
| 分类 |
商业参数
| 零件号别名 | 09 09-15-219-2603 15 219 2603 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 50 V | 极数 | 19 |
| 最大额定电流 | 7A, 10A | 额定电流 - 设备输入口 | 7 |
机械参数
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 重量（g） | 9.60000 | 触头类型 | 16Signal/3Power |
| 安装类型 | Cable Mount | 连接器类型 | Insert, Male Pins |
| 接触镀层 | Gold | 触头材料 | Copper Alloy |
| 壳体材料 | Metal | 尺寸/外形 | R23 |
| 端接样式 | Solder | 第一触头极性 | M |
| 触点数 | 19 | 位数 | 19 |
产品信息
| 类型 | Circular | 系列 | R23 |
| 产品特性 | Insert Only, Requires Shell | 产品子类型 | Inlets |
环境参数
| 工作温度 | -40°C ~ 115°C | ||
