点击放大查看

09300241421

制造商	HARTING Technology Group

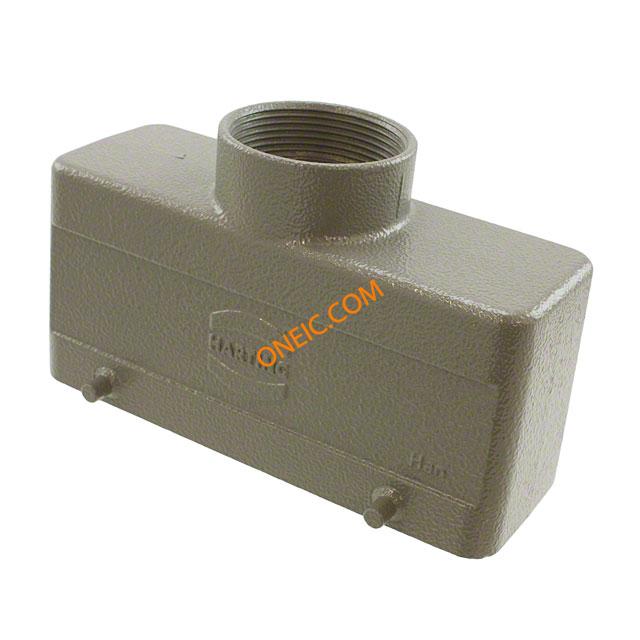

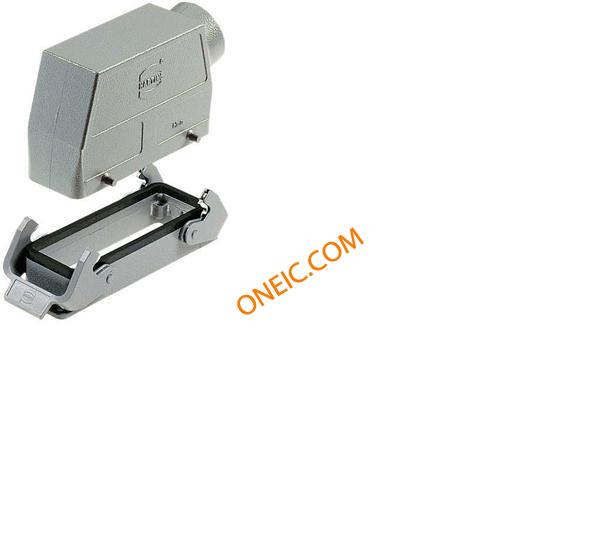

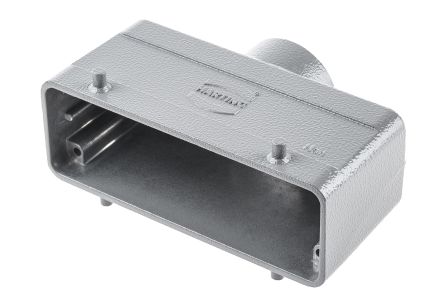

描述	Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 24B PG29 TOP METAL HOOD HAN B HOOD TOP LC 4 PEGS PG 29 Lo type top entry hood for 2 lever,PG29 24BL/CT-HOODPG29 Han B Hoods: Han B Hood Top Entry LC 4 Pegs PG 29 Harting Han B 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 09 09-30-024-1421 1421 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	24B	深度	57
高度	71	包装方式	Bulk
方向	顶入	螺纹尺寸	PG29
外壳颜色	Gray	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Straight
插入力	Female	壳体材料	Aluminum, Die Cast
总长度	120	尺寸/外形	4.724" L x 1.693" W x 2.795" H (120.00mm x 43.00mm x 71.00mm)
端接样式	Cable	触点数	8

产品信息

类型	Hood	样式	Top Entry
系列	Han Snap	产品子类型	Housings
锁定位置	Locking Clip on Base Bottom	附件类型	Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
