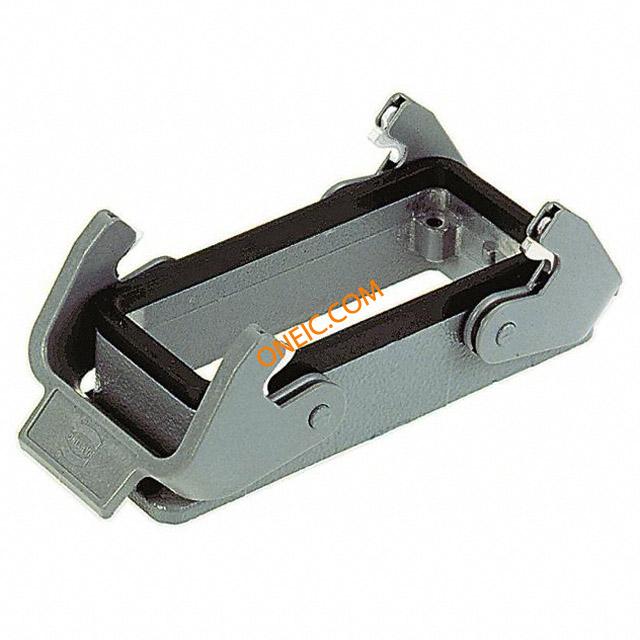

09300100301

制造商	HARTING Technology Group
描述	Connector Accessories Housing Bulkhead Mounting Heavy Duty Power Connectors HAN 10B BULKHEAD MNT 2 LEVERS METAL HAN B BASE PANEL 2 LEVERS Low panel mnt hsg.,10B for 2 lever Housing,PowerConnector;Metal;TwoLeversHousing;93mmLx35mmW Enclosure: for Han connectors; Han; size 10B; with double latch Han B Housings: Han B Base Panel 2 levers Harting Han B 系列电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 0301 09 09-30-010-0301 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	10B	深度	57
重量	0.09 kg	包装方式	Bulk
重量（g）	113.33000	外壳颜色	Gray
连接器类型	Base - Panel Mount	外壳涂层	Powder Coated
安装样式	Vertical	封装形式	size 10B
锁定特性	with double latch	壳体材料	Aluminum, Die Cast
总长度	117.6	包装数量	5
尺寸/外形	3.661" L x 1.709" W x 1.138" H (93.00mm x 43.40mm x 28.90mm)	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	5	类型	Housing
样式	Bottom Entry	系列	Han C
CAD图纸	3D CAD Model	UNSPSC代码	31163100
产品子类型	Housings	锁定位置	Locking Clip on Base Bottom
适配器系列	Han	单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09380082701

Harting Technology Group

CONN FEMALE INSERT 4+4 POLES +PE 690V 63A WITHOUT PIN 4 Heavy Duty Power Connectors FEMALE INSERT HAN 10B SCW TERM HAN K4/4-F FINGER PROT Han K Female Insert: Han K4/4-F 6-16mm Finger prot Harting Han Com 系列 2行 4针插座电源连接器

¥948.8271

详情

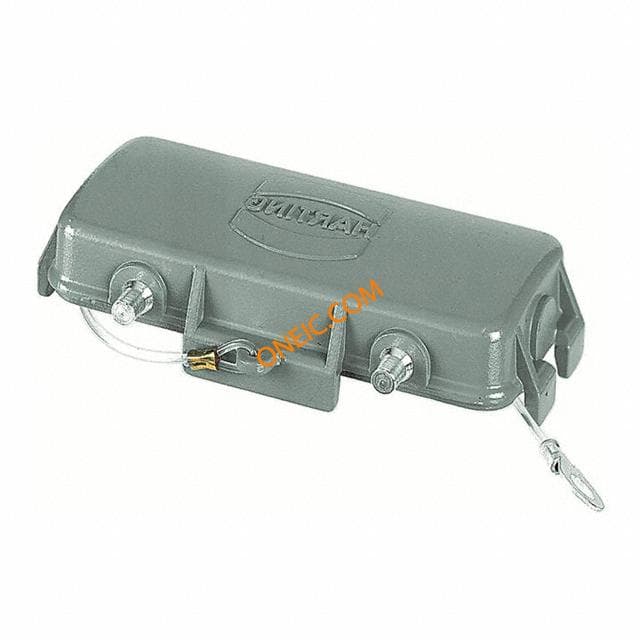

09300105425

Harting Technology Group

Connector Accessories 19 POS Metal Cover Heavy Duty Power Connectors HAN 10B COVER METAL HAN 10B-PROTECTION COVER Housing dust cover,10B PROTECTIONCOVERS10B Protection cover; Han; size 10B; for double latch; metal Han B Accessories: Han 10B-Protection Cover Harting Han B 系列金属盖

¥67.1840

详情

09330102701

Harting Technology Group

Conn Rectangular F 10Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 10P F SCREW SCREW TERMINATION HAN E 10 POS. F INSERT SCREW Han(R) E 10P skt insert,16A 500V PowerConnectorInsert;Female;10 HanE10Pos.FInsertScrew Connector: HAN; female; E; PIN:10; 10+PE; size 10B; screw terminal Han E Female Insert: Han E 10 Position F Insert Screw Harting Han E 系列 2行 10针 10P+E极插座插片

¥98.1648

详情

09330102702

Harting Technology Group

Conn Housing F 10 POS Crimp ST Panel Mount HAN 10E INSERT FEMALE CRIMP Han E 10P+E insert for skt contact,16A Heavy Duty Power Connectors HAN E 10P F CRIMP ORDER CONTACTS SEP HAN INSERT, RECEPTACLE, 10WAY, CRIMP Han10Einsertfemalecrimp Connector: HAN; female; Han E; PIN:10; 10+PE; size 10B; crimped; 16A Han E Female Insert- Crimp: Han 10E insert female crimp Harting Han E 系列 2行 10针插座电源连接器

¥29.6725

详情

09320183101

Harting Technology Group

Conn Housing F 19 POS Crimp ST Heavy Duty Power Connectors HAN EE 18P F CRIMP ORDER CONTACTS SEP HAN EE 18POS INSERT FEMALE CRIMP HanEE18Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:18; w/o terminals; 500V Han EE Female insert Crimp: Han EE 18 Position Insert Female Crimp Harting Han EE 系列 4行 18针 18P+E极插座插片

¥59.5625

详情

09160423101

Harting Technology Group

Conn Housing F 42Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 42P F CRIMP ORDER CONTACTS SEP HAN DD 42 POS. F INSERT CRIMP Han(R) DD 42P+E socket insert,10A 250Vac PowerConnectorInsert;Female;42 Connector: HAN; female; Han DD; PIN:42; 42+PE; size 10B; UL94V-0 Han DD Female Insert: Han DD 42 Position F Insert Crimp Harting Han DD 系列 6行 43针插座电源连接器

¥80.4424

详情

09330102716

Harting Technology Group

Conn Housing F 10 POS Crimp ST Heavy Duty Power Connectors HAN ES 10B 10P FEMAL CAGE-CLAMP TERM HAN 10 ES-F INSERT Han ES 10P cageclamp skt insert,16A 500V HANES10-WAYC/CLAMPSKT HeavyDutyPowerConnector;HANES10B10PFEMALECAGE-CLAMPTERM Connector: HAN; female; Han ES; PIN:10; 10+PE; size 10B; 16A; 500V Han E Female Insert: Han 10 ES-F insert Harting Han ES 系列 2行 10针插座电源连接器

¥152.4560

详情

09330102616

Harting Technology Group

Conn Rectangular M 10 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 10P MALE CAGE-CLAMP TERM HAN ES 10 POS. M INSERT Han ES 10P cageclamp plg insert,16A 500V HANES10POS.MINSERT Connector: HAN; male; Han ES; PIN:10; 10+PE; size 10B; spring clamp Han E Male Insert: Han ES 10 Position M Insert Harting Han ES 系列 2行 10针插头电源连接器

¥196.7602

详情

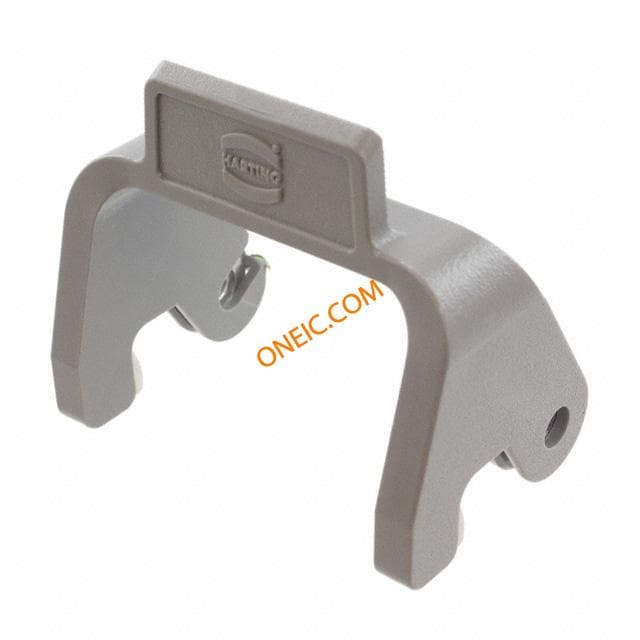

09000005221

Harting

HAN 10/16/24 THERMOPLASTIC LEVER Heavy Duty Power Connectors HAN LEVER 10/16/24B DOUBLE LEVERS Han10/16/24ThermoplasticLever Secondary lock; size 10B, size 16B, size 24B Han Cable Entry Protection: Han 10/16/24 Thermoplastic Lever Harting Han Easy Lock 系列锁定杆 , 适用于大负荷电源连接器

¥34.2448

详情

09000005257

Harting

GROUND TERM HAN 10 MOD HIGH VERS Heavy Duty Power Connectors GROUNDING FRAME FOR 10B MOD FRAME Harting HAN Modular 系列电源连接器

¥242.8200

详情

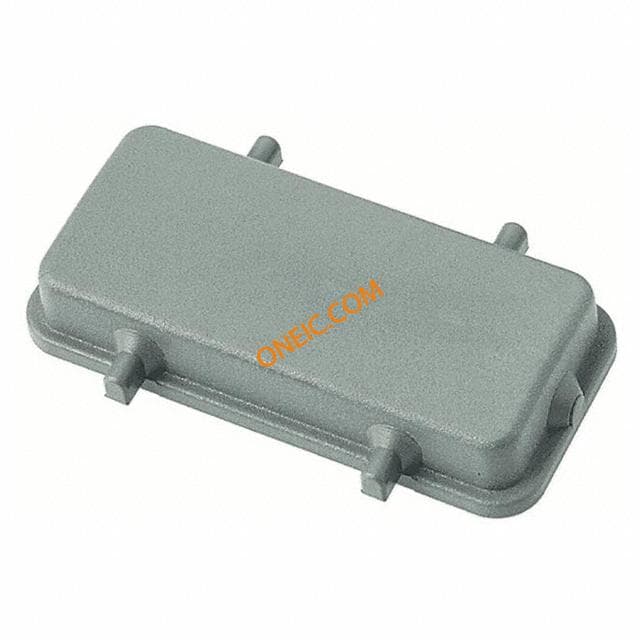

09300105407
