点击放大查看

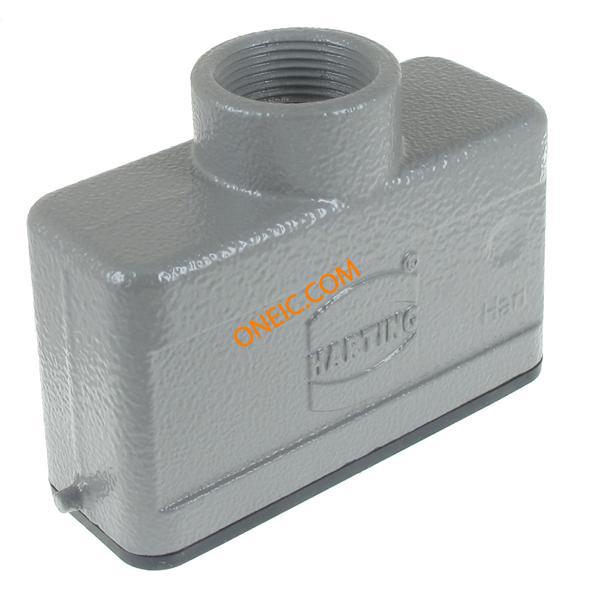

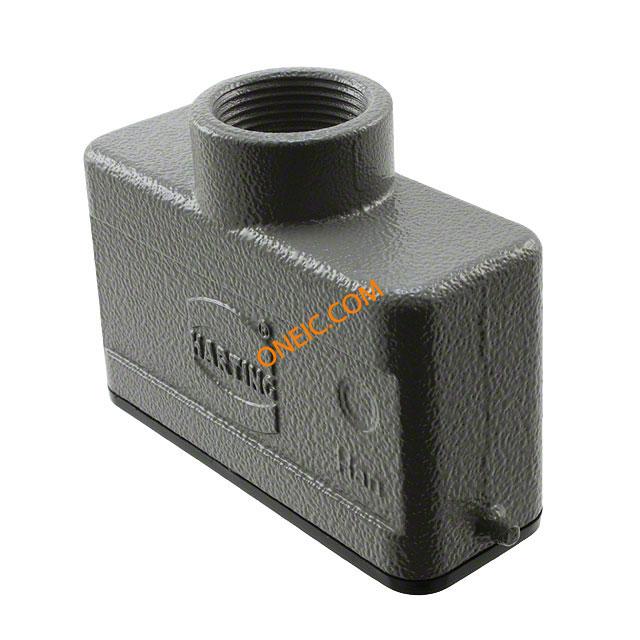

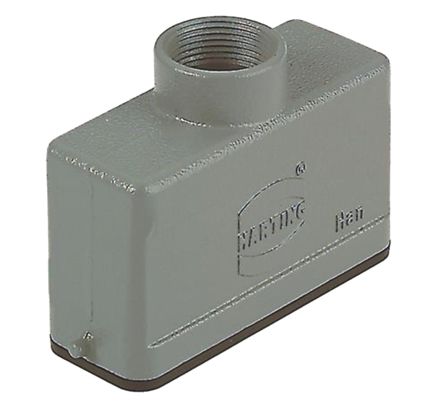

09200161441

制造商	HARTING Technology Group
描述	Connector Accessories Hood Heavy Duty Power Connectors HAN 16A PG16 TOP METAL HOOD HAN A HOOD TOP LC 2 PEGS PG 16 HAN16AHood(TopEntry,SingleLeverPeg)PGThread Enclosure: for Han connectors; Han; size 16A; for cable; straight Han A Hoods: Han A Hood Top Entry LC 2 Pegs PG 16 Harting Han A 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	016 09 09-20-016-1441 1441 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

16 A

机械参数

尺寸	16A	高度	29.5
重量	0.09 kg	包装方式	Bulk
方向	straight	螺纹尺寸	PG16
重量（g）	89.00000	外壳颜色	Gray
安装类型	on cable	衬套螺纹	PG16
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	for cable	封装形式	size 16A
插入力	Female	锁定特性	for latch
壳体材料	Aluminum, Die Cast	包装数量	2
尺寸/外形	3.130" L x 1.161" W x 1.850" H (79.50mm x 29.50mm x 47.00mm)	端接样式	Cable
触点数	25	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	Hood
样式	Top Entry	系列	Han D, Han D AV
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1
基础产品编号	92000

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
