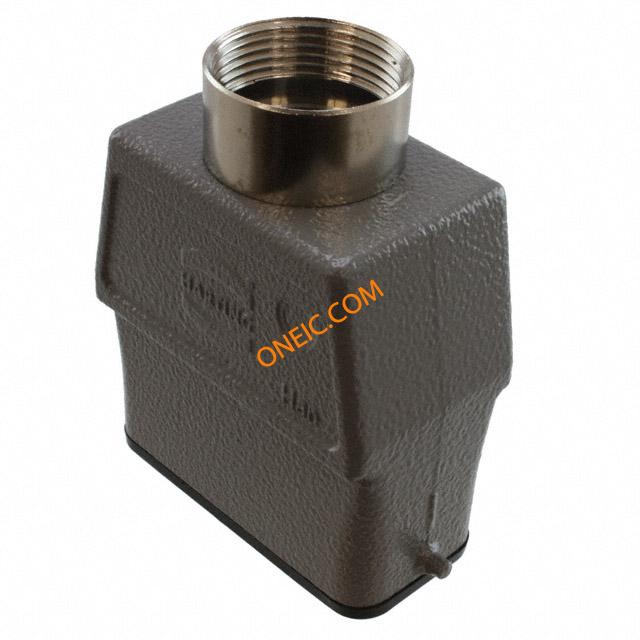

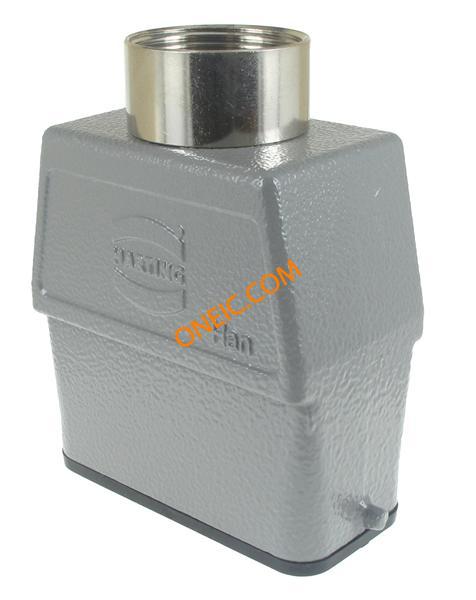

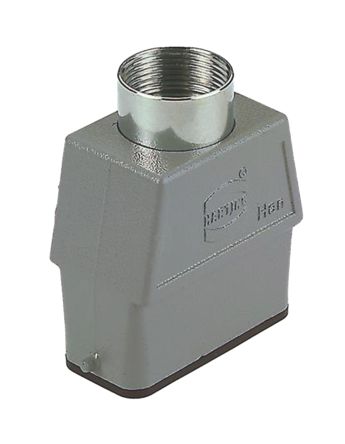

09200100441

制造商
HARTING Technology Group
描述
Connector Accessories Hood With Top Entry Metal Heavy Duty Power Connectors HAN 10A PG21 TOP ENT METAL HOOD HAN A HOOD TOP HC 2 PEGS PG 21 HAN 10A Hood (Top Entry; Single Lever Peg) PG Thread HAN10AHood(TopEntry,SingleLeverPeg)PGThread Han A Hoods: Han A Hood Top Entry HC 2 Pegs PG 21 Harting Han A 系列 顶入 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名010 0441 09 09-20-010-0441 20产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

电气参数

最大额定电流10 A

机械参数

尺寸10A深度82.2
高度36包装方式Bulk
方向顶入螺纹尺寸PG21
外壳颜色Gray连接器类型Hood
外壳涂层Powder Coated插入力Female
壳体材料Aluminum, Die Cast尺寸/外形2.469" L x 1.417" W x 3.236" H (62.70mm x 36.00mm x 82.20mm)
端接样式Cable触点数1

产品信息

类型Hood样式Top Entry
系列Han-Modular产品子类型Hoods
锁定位置Side Clip on Base Bottom基础产品编号92000

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
