09061326901
| 制造商 | |
| 描述 | Conn Shrouded Header M 32 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors 32P TYPE F MALE 2.54MM PITCH DIN-POWER F032MS-3,0C1-2 CONNECTOR, DIN 41612, PLUG, 32WAY Socket; DIN 41612,type F; male; PIN:32; b+z; THT; angled 90°; 6A Harting 32 路 5.08mm 节距, F型 C2等级, 2 行 z/b, 直角 DIN 41612 插头, 焊接端接 |
| 分类 |
商业参数
| 零件号别名 | 06 09 09-06-132-6901 132 6901 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 6 A | ||
机械参数
| 深度 | 22 | 间距 | 0.200" (5.08mm) |
| 高度 | 14.7 | 重量 | 0.018 |
| 包装方式 | Bulk | 方向 | angled 90° |
| 端接方式 | Solder | 引脚间距 | len. 3mm |
| 尾部长度 | 3 mm | 安装类型 | Right Angle |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 93.9 |
| 包装数量 | 20 | 连接器 - 电缆 | socket |
| 端接样式 | Solder Pin | 触点数 | 32 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 48 (Power) |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 接触镀层厚度 | Flash |
| 触点材料 - 镀层 | gold plated | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装特征 | b+z | ||
产品信息
| SPG | 20 | 类型 | Shrouded Header |
| 样式 | F | 连接器性别 | M |
| 系列 | :- | 产品子类型 | Plugs |
| 单元数量 | 1 | 加载位置数 | 32 |
环境参数
| 级别、等级 | 2 | 插拔次数 | :400 |
| 机械寿命 | 400cycles | 工作温度 | -55...125°C |
相关型号

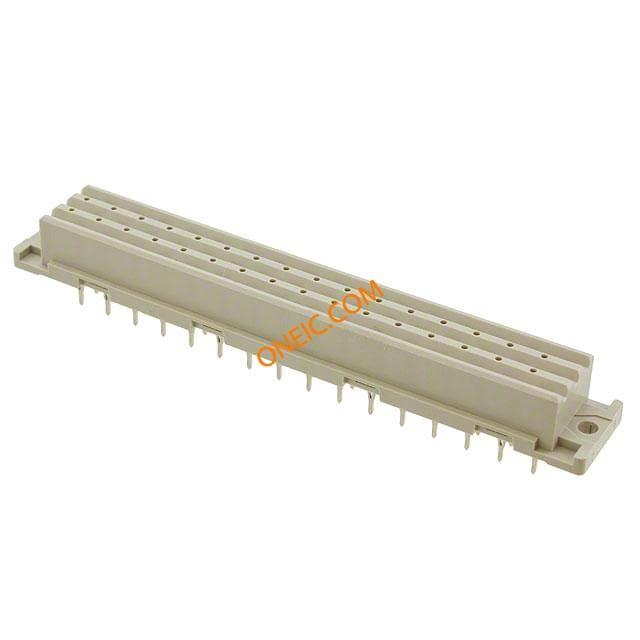

09062326832
HARTING
DIN 41612 Connectors DIN-POWER FLOW032FP-5,5C1-2 DIN-POWER FLOW032FP-5,5C1-2

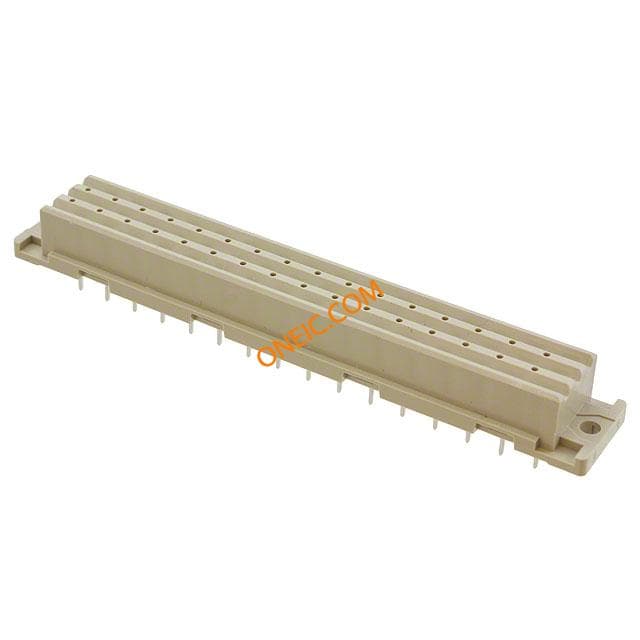

09062326834
