MC34844EP
| 制造商 | NXP Semiconductors N.V. |
| 描述 | LED Driver IC 10 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 50mA 32-QFN Exposed Pad (5x5) IC LED DVR BACKLIGHT 10CH 32QFN |
电气参数
| 频率 | Adjustable/Selectable | 供电电压 | 8 V ~ 60 V |
| 输出数量 | 10 | 平均整流电流 Io | Yes |
机械参数
| 封装形式 | 32-VFQFN Exposed Pad | 主要材料 | Backlight |
产品信息
| 拓扑 | PWM, Step-Up (Boost) | 内部开关 | Yes |
| 输出配置 | Surface Mount | ||
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号

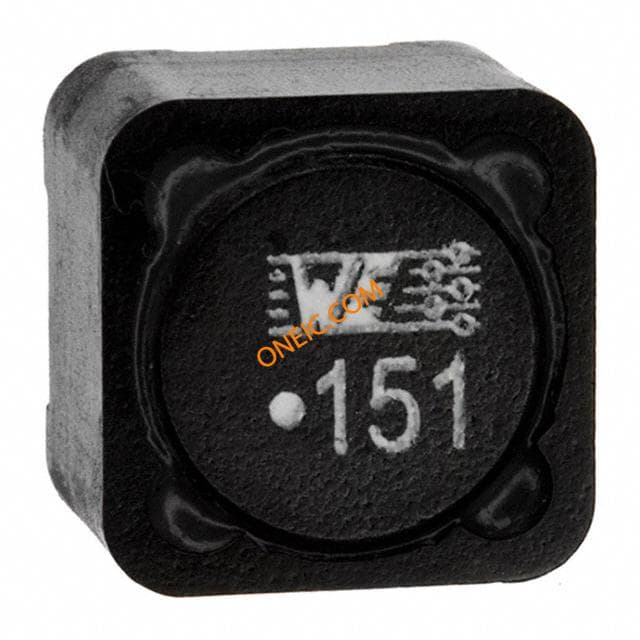

7447709151
Wurth Electronics
Fixed Inductors WE-PD Inductor 150uH 1kHz 2.1A INDUCTOR POWER 150UH 2.1A SMD SMD Inductor WE-PD XXL 150uH 2.7A CHOKE, SMD, 150UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 150 μH ±20%, 2.7A Idc
KITLEDBKLT16EVBE
Freescale Semiconductor - NXP
KIT EVAL FOR ALL 16CH LED BOARDS
KIT34844EPEVME
Freescale Semiconductor - NXP
BOARD EVAL 10CH MC34844 LED DVR
CLV6A-FKB-CK1P1G1BB7R3R3
Wolfspeed, Inc.
Standard LEDs - SMD RGB LED LED Tri-Color Blue/Green/Red 470nm/527nm/630nm 6-Pin PLCC T/R LED RED/GREEN/BLUE PLCC6 SMD LED, 4.2MM, RED / GREEN / BLUE, PLCC-6 EMITTER, MULTI-CHIP, 4.2MM Cree 蓝色/绿色/红色 (540 nm 主波长) LED , 4 V, 2240 mcd, 表面安装
CLP6C-FKB-CM1Q1H1BB7R3R3
Wolfspeed, Inc.
Standard LEDs - SMD RGB LED LED Tri-Color Blue/Green/Red 470nm/527nm/630nm 6-Pin SMD T/R LED RED/GREEN/BLUE PLCC6 SMD LED, SMD, PLCC6, MULTI-COLOUR Cree 三色 蓝色/绿色/红色 (540 nm 主波长) LED , 120 °视角, 6 针 PLCC 6 贴装
