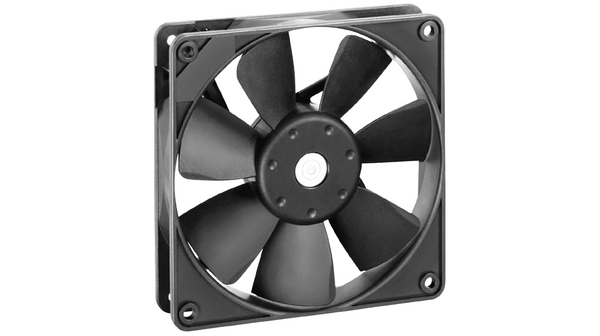

4414F
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 5W 100.1CFM 43dB Flange Mount FAN TUBEAXIAL 119X25.4MM 24VDC Ball bearing axial fan,170 m/h 24Vdc Fans 119x25 24DC 100CFM 5W 2900RPM 43dBA BB FAN, 119MM, 24VDC Fan;DC;24V;120x120x25mm;Sq;101.1CFM;5W;43dBA;Leadwires Axial fan 119 x 119 x 25 mm 170 m³/h 24 VDC 5 W, 4414F, EBM-Papst ebm-papst 4400 系列 直流 轴流风扇, 170m³/h, 24 V 直流, 5W, 119 x 119 x 25mm |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 140 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Vendor undefined / Vendor undefined | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84145920 |
| 认证机构 | :CSA, UL, VDE | ||
电气参数
| 噪声 | 43 dB(A) | 转速 | Counter Clockwise |
| 输入范围 | 12 to 28 | 功率（瓦） | 5.00W |
| 额定功率 | 5 W | 电压范围 | 12 ~ 28VDC |
| 额定电压 | 24VDC | 供电电压 | 24 V |
| 供电类型 | :Wire Leaded | 最小输入电压 | :12V |
| 平均正向功率 | :5W | 最大持续工作电压（MCOV） | :28V |
机械参数
| RPM | 2900 RPM | 尺寸 | 4.7x1(120x25)In.(mm) |
| 深度 | :25mm | 宽度 | :119mm |
| 高度 | 25.4 | 重量 | 0.38 lb (172.37g) |
| 风量 | 100.1 CFM (2.83m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CCW |
| 流量 (CFM) | :170m³/h | 流量（SCFM） | :100.1cu.ft/min |
| 端接方式 | Leads | 轴承类型 | Ball |
| 高度（最大） | :119mm | 安装类型 | Flange Mount |
| 壳体材料 | Polybutylene Terephthalate Polymer | 总长度 | 119 |
| 刀片材料 | Polyamide (PA), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 119mm L x 119mm H x 25.4mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 4.7x1(120x25)In.(mm) |
| 引线长度 | :310mm | 面板开孔形状 | :116mm |
| 总体尺寸 | 4.7x4.7x1In. | 安装孔直径 | :4.5mm |
| 安装面板厚度 | :104.8mm | ||
产品信息
| 类型 | :Standard,119mm | 系列 | 4400F |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | 4400FSeries |
| 配置 | Square | ||
环境参数
| 工作温度 | -4 ~ 140°F (-20 ~ 60°C) | 自然散热热阻 | 100.1CFM |
| 结工作温度 | 60°C | ||
文档与媒体
相关型号
4414F
ebm-papst
DC Fan Ball Bearing 24V 5W 100.1CFM 43dB Flange Mount FAN TUBEAXIAL 119X25.4MM 24VDC Ball bearing axial fan,170 m/h 24Vdc Fans 119x25 24DC 100CFM 5W 2900RPM 43dBA BB FAN, 119MM, 24VDC Fan;DC;24V;120x120x25mm;Sq;101.1CFM;5W;43dBA;Leadwires Axial fan 119 x 119 x 25 mm 170 m³/h 24 VDC 5 W, 4414F, EBM-Papst ebm-papst 4400 系列 直流 轴流风扇, 170m³/h, 24 V 直流, 5W, 119 x 119 x 25mm
LZ126
ebm-papst
Fan Cords & Accessories 2 Prong Fan Cord PVC 36 Cable Assembly Patch Cord 1m 2 POS Power M CONNECTING CABLE W/ MOLDED PLUG Fan Accessories 2 Prong Fan Cord PVC 36 Plug And Cord Set Cordset,39.4in,StraightPlug,.02Pins,PVCBlack 连接器电缆 风扇引线, 使用于所有类型的风扇,带平插头 2.8/3 x 0.5
LZ30-4
ebm-papst
Thrml Mgmt Access Finger Guard 119mm Steel Wire Fan Cords & Accessories Finger Guard Steel FAN GUARD 119MM METAL Fan Accessories Finger Guard Steel Guard,Metal,For4000/9000SeriesAxialFans 119mm风扇 金属，钢 手指防护罩, 119 x 119mm
LZ30
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories MTL FINGER GRD 4000/9000 SC120-W5 FAN GUARD 119MM METAL Fan Accessories MTL FINGER GRD 4000/9000 SC120-W5 Thrml Mgmt Access Metal Finger Guard WELDED,NICKELCHROME-PLATEDSTEELWIREFORSERIES2500S,4000AND5500S 119mm风扇 金属，钢 手指防护罩, 115 (Dia)mm
LZ40/60
ebm-papst
Fan Cords & Accessories KIT SCREEN 4000, 9000 SER KIT SCREEN FOR 4000, 9000 SER Fan Accessories KIT SCREEN 4000, 9000 SER
LZ60
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Fan Filter FILTER 119MM WIRE MESH METAL Aluminium Fan Mounted Fan Filter for 119mm Fan Fan Accessories Fan Filter FILTER, METAL MESH, FOR LZ40N Fan,Filterfor4000&9000SeriesEBMFans ebm-papst 铝制 扇形过滤器, 用于119mm风扇
LZ40N
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Screen Kit Fits 4000/9000 FRAME PLASTIC FOR 4000, 9000 SER Glass Fibre Reinforced Polymer Fan Mounted Finger Guard Fan Accessories Screen Kit Fits 4000/9000 FILTER, DUST, METAL MESH Fan,Screen,BlackFiberglassFramew/InsertedAlumMesh,Usew/4000&9000Series ebm-papst 玻璃纤维强化聚酯制 指形护罩
LZ30-6
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories GUARD FINGR 4100N SERIES LZ30-6 FAN GUARD 119MM PLASTIC Fan Accessories GUARD FINGR 4100N SERIES LZ30-6 FiberglassReinforcedPlastic(PPO)FingerGuard 119mm风扇 塑料 手指防护罩, 119 x 119mm

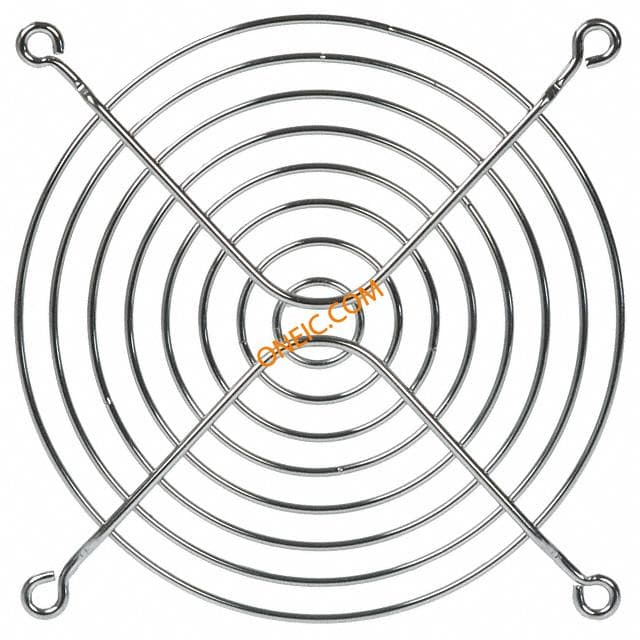

08130
Qualtek
Fan Cords & Accessories 120mm WIRE FAN GD FINGER GUARD 120MM METAL Fan Guard; Wire; 4 1/2 Inch A(120MM) Fan Accessories 120mm WIRE FAN GD Thrml Mgmt Access Finger Guard FINGER GUARD FanGuard,Wire,41/2InchA(120MM) Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5
LZ30-5
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLASTIC FINGER GUARD SERIES 4000/9000 FAN GUARD 119MM PLASTIC Fan Accessories PLASTIC FINGER GUARD SERIES 4000/9000
LZ30P
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories Plastic Finger Guard Fits 4000/9000 FINGER GUARD PLAST 4000,9000 SER Fan Accessories Plastic Finger Guard Fits 4000/9000 Thrml Mgmt Access Finger Guard Plastic FINGER GUARD FAN 119MM SQ FiberglassReinforcedPlastic(PPO),ForSeries2500S,4000,andModel5500S ebm-papst 黑色 119mm风扇 塑料 手指防护罩 , 127 x 127mm
LZ210
ebm-papst
Thrml Mgmt Access Screw Clip Steel Fan Cords & Accessories Clip Nut 6-32/M3.5 Self-tapping STEEL MOUNTING SCREW CLIP Threaded Clip For 119 127 & 135mm Fans Fan Accessories Clip Nut 6-32/M3.5 Self-tapping FIXING CLIP, PK4 FAN CLIP Accessory;SteelScrewCliptoMountFanswithThreadedPin6-32UNC/3.5DIN7970 安装螺丝夹 风扇安装硬件, 使用于4000 / 5100 / 5200 / 5600 / 5900 / 7000 和 9000 风扇系列

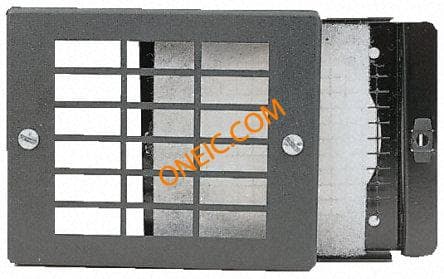

FP120
