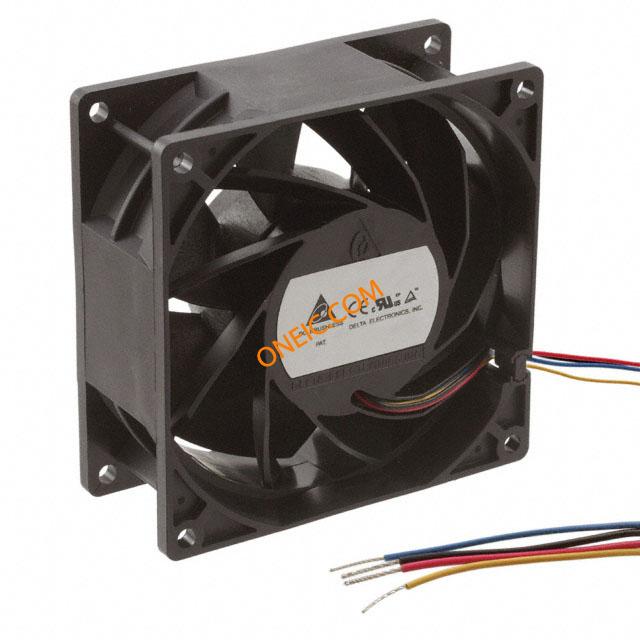

THB0948AE

制造商	Delta Electronics, Inc.
描述	48V FAN 92X92X38MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

其他名称

603-1685

标准包装数量

144

电气参数

噪声	72.5 dB(A)	功率（瓦）	36.5W
电压范围	36 ~ 60VDC	额定电压	48VDC
最大额定电流	0.760A

机械参数

RPM	13000 RPM	重量	0.496 lb (224.98g)
风量	162.5 CFM (4.60m³/min)	风扇类型	Tubeaxial
端接方式	4 Wire Leads	轴承类型	Ball
静压	3.089 in H2O (769.5 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 92mm L x 92mm H x 38mm W

产品信息

产品特性

PWM Control; Speed Sensor (Tach)

文档与媒体

PDF 文档

THB0948AE
