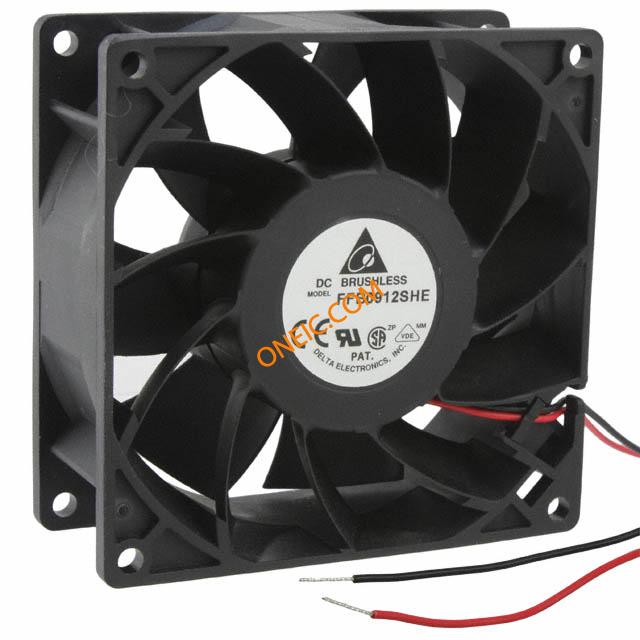

FFB0912SHE

制造商	Delta Electronics, Inc.
描述	12V DC FAN 92X92X38 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

其他名称

603-1602

标准包装数量

电气参数

噪声	52.5 dB(A)	功率（瓦）	9.00W
电压范围	7 ~ 13.8VDC	额定电压	12VDC
最大额定电流	0.750A

机械参数

RPM	4400 RPM	重量	0.436 lb (197.77g)
风量	100.3 CFM (2.84m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Ball
静压	0.572 in H2O (142.5 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 92mm L x 92mm H x 38mm W

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 158°F (-10 ~ 70°C)

文档与媒体

PDF 文档

FFB 92x92x38MM
