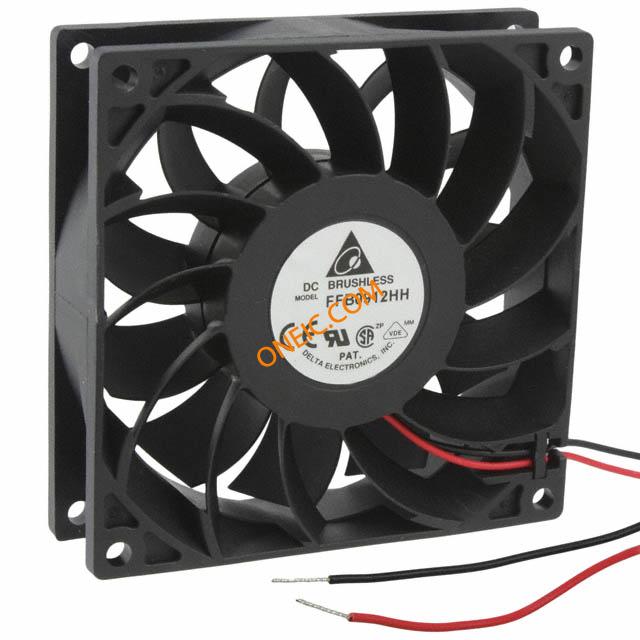

FFB0912HH

制造商	Delta Electronics, Inc.
描述	DC Fan Ball Bearing 12V 0.4A 4.8W 3200RPM 70.21CFM 44.1dB Flange Mount 12V DC FAN 92X92X25.4 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

其他名称

603-1601

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

噪声	44.1 dB(A)	转速	Clockwise
输入范围	7 to 13.8	功率（瓦）	4.80W
额定功率	4.8	电压范围	7 ~ 13.8VDC
额定电压	12VDC	输出电流	0.4
最大额定电流	0.400A

机械参数

RPM	3200 RPM	深度	92
高度	25.4	重量	0.282 lb (127.91g)
风量	70.2 CFM (1.99m³/min)	风扇类型	Tubeaxial
端接方式	Lead Wire	轴承类型	Ball
安装类型	Flange Mount	静压	0.242 in H2O (60.3 Pa)
壳体材料	Plastic	总长度	92
刀片材料	Plastic	框架材料	Plastic
最大压力	0.242inH2O	尺寸/外形	Square - 92mm L x 92mm H x 25.4mm W

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 140°F (-10 ~ 60°C)

文档与媒体

PDF 文档

FFB 92x92x25.4MM

相关型号

LZ23-2

ebm-papst

Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLSTC FINGER GRD FAN GUARD 92MM PLASTIC Fan Accessories PLSTC FINGER GRD

¥25.2450

详情

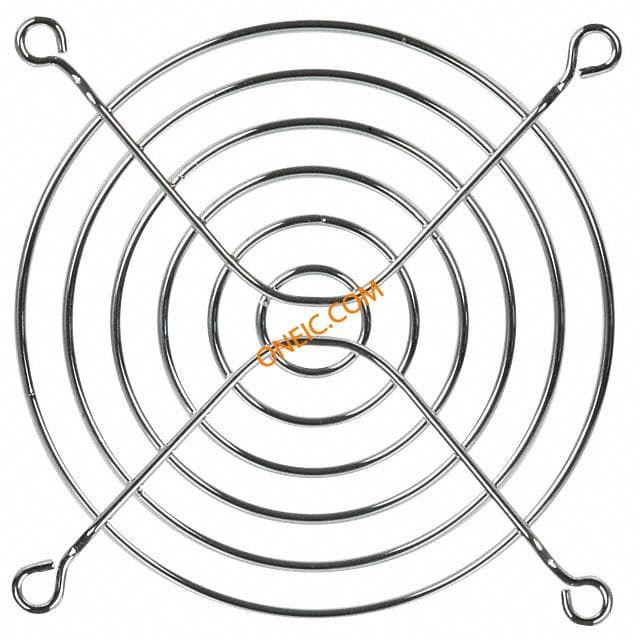

08174
