点击放大查看

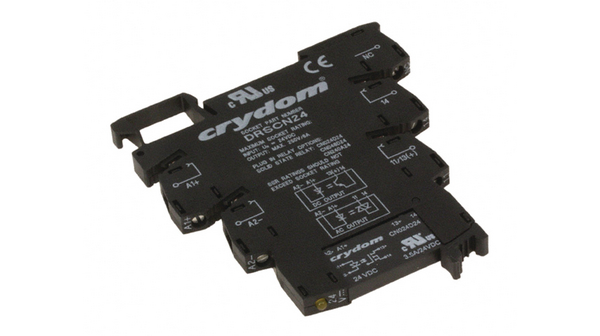

DRA-CN024D05
| 制造商 | |
| 描述 | Solid State Relays - Industrial Mount CN024D05 SSR/DRSCN05 Skt Assy Relay SSR 10mA 12V DC-IN 3.5A 24V DC-OUT RELAY SSR 3.5A 24VDC DIN-RAIL 3.5A DIN Rail Panel Mount, Zero Crossing Solid State Relay, 24V dc SSR, DIN RAIL ASSY, 240 VOLTS Assembly;Relay;DINRailMount;240Volts Solid state relay single phase 3...12 VDC, DRA-CN024D05, Crydom Crydom 3.5 A DIN Rail安装 固态继电器, 零交叉切换, 24 V 直流 |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85364900 |
电气参数
| 输出端 | AC Output | 电路 | SPST-NO (1 Form A) |
| 输入类型 | DC | 输出类型 | DC |
| 负载电流 | 3.5A | 开启时间 | 120 μs |
| 电压范围 | 0-24VDC | 开关模式 | :Zero Crossing |
| 负载电压 | 0 ~ 24 V | 额定电压 | 12 |
| 浪涌电流 | :9A | 输出电流 | 3.5 |
| 供电电压 | 3 VDC to 12 VDC | 隔离电压 | 2500 |
| 电池组电压 | 0 V dc | 最大额定电流 | 3.5 A |
| 最小输入电压 | 3 ~ 12VDC | 输出电压（最大） | 24 |
| 电源电压（最大） | :12VDC | 最小供电电压 | 0 VDC to 24 VDC |
| 关态电流（最大） | 0.001 mA | 静态电流（最大） | 1 mA |
| 输入偏置电流（最大） | 10(Typ) | 峰值脉冲电流（8/20µs） | 9 |
| 额定交流电压（相间） | :24VDC | 最大持续工作电压（MCOV） | :5V |
| 额定交流电压（相对地/中性线） | :0V | ||

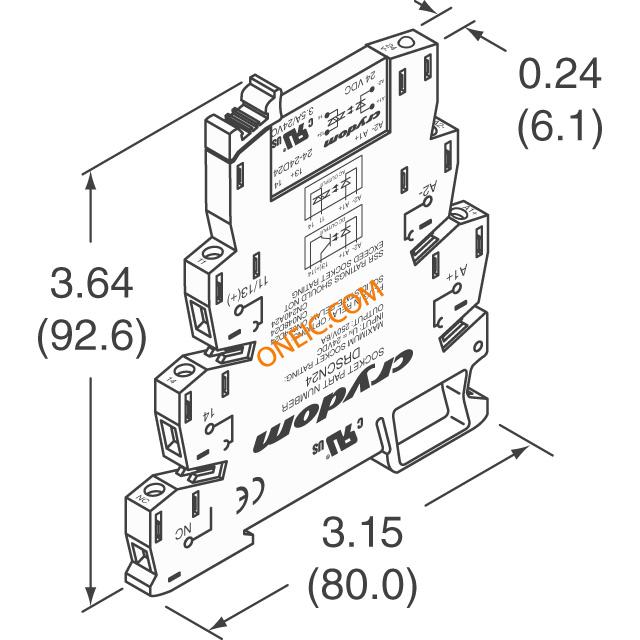

机械参数
| 深度 | 6.1mm | 宽度 | 6.1 |
| 高度 | 80mm | 长度 | 92.6mm |
| 重量 | 0.031 | 包装方式 | Bulk |
| 触点形式 | 1 Form A (SPST-NO) | 安装类型 | DIN Rail |
| 端子类型 | :Cage Clamp | 安装样式 | DIN Rail |
| 封装形式 | SIP SSR | 总长度 | 80 |
| 端接样式 | Screw | 外壳尺寸-插件 | 92.6 |
| 典型触点布局 | :SPST-NO | ||
产品信息
| 类型 | Relay | 系列 | DRACN |
| 继电器类型 | Relay | 开关类型 | Zero Crossing |
| 电路类型 | 1 Form A | 产品子类型 | Industrial Mount |
| 控制/显示类型 | :DC | ||
环境参数
| 工作温度 | 60 | ||
