DC200D20
| 制造商 | Custom Sensors & Technologies (CST) |
| 描述 | Solid State Relays - Industrial Mount SSR DC OUTPUT 150VDC/20A 4-32VDC RELAY SSR DC OUT 20A 4-32VDC SSR, 20A, 200VDC RELAY;PMIP00SSR200VDC/20A,4-32VDC |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | UL,CE | 海关税号 | 85364900 |
电气参数
| 输出端 | MOSFET | 电路 | SPST-NO (1 Form A) |
| 输出类型 | DC | 负载电流 | 20A |
| 负载电压 | 1 ~ 150 V | 额定电压 | 1-150VDC |
| 浪涌电流 | :71A | 供电电压 | 4 VDC to 32 VDC |
| 隔离电压 | :2500Vrms | 最大额定电流 | 20 A |
| 最小输入电压 | 4 ~ 32VDC | 电源电压（最大） | :32VDC |
| 最小供电电压 | 1 VDC to 150 VDC | 导通电阻（最大） | 51 mOhm |
| 额定交流电压（相间） | :150VDC | 驱动电压（最大Rds On，最小Rds On） | 4-32VDC |
机械参数
| 重量 | 0.083 | 包装方式 | Bulk |
| 端接方式 | Screw | 安装类型 | Chassis Mount or Panel Mount |
| 安装样式 | Panel | 引脚数 | 4 |
| 封装形式 | Hockey Puck | 端接样式 | Screw |
产品信息
| 系列 | PowerPlus | 产品特性 | Heatsinkingrequired |
| 功能 | DCSwitching | 继电器类型 | Relay |
| 制造商全称 | PowerPlusDCSeries | 产品子类型 | Industrial Mount |
| 控制/显示类型 | :DC | ||
环境参数
| 机械寿命 | New Product: New from this manufacturer. | 工作温度 | + 80 C |
相关型号
HS301DR
Crydom
Heat Sinks 3.0 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Aluminum 3°C/W HEATSINK SSR 3.0DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink HEATSINK, DIN MOUNT, 3DEG C/W HEATSINK,DINRAIL,3.0C/W,-1SSR Heat Sink 3 °C/W, HS301DR, Crydom DIN 轨安装 固态继电器散热片
HS351DR
Crydom
Heat Sinks 3.5 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Mount Aluminum 3.5°C/W Black Anodized HEATSINK SSR 3.5DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink HEATSINK,DINRAIL,3.5C/W,-1SSR
HS501DR
Crydom
Heat Sinks 5.0 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Steel 5°C/W Yellow Zinc HEATSINK SSR 5.0DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink For Use With 1 x single or dual SSR HEATSINK, DIN MOUNT, 5DEG C/W HEATSINK,DINRAIL,5.0C/W,-1SSR Heat Sink 5 °C/W, HS501DR, Crydom DIN 轨安装 固态继电器散热片, 适用于1 个单或双固态继电器
TRM6
Crydom
Relay Sockets & Hardware Copper Lug Terminal COPPER LUG TERMINAL Solid State Relay Lug Terminal For Use With Screw Terminal Lug Terminal 6-14AWG 25.4mm 11.48mm ACCESSORY,COPPERLUGTERMINAL TRM6 Series 14-6 AWG Panel Mount Copper Lug Terminal 固态继电器接线片端子, 适用于螺钉接线端子
HSP-1
Crydom
Thrml Mgmt Access Thermal Pad White 0.03°C/W 1W/m.K 10Xe12Ohm.cm THERMAL PAD SINGLE PHASE SSR Non Adhesive Thermal Pad - 1 Phase Thermal Interface Products Accessory Non-adhesv thermal pad for SSRs THERMAL TRANSFER PAD Thermal pad Rectangular, HSP-1, Crydom 热导性垫, 适用于M59 系列

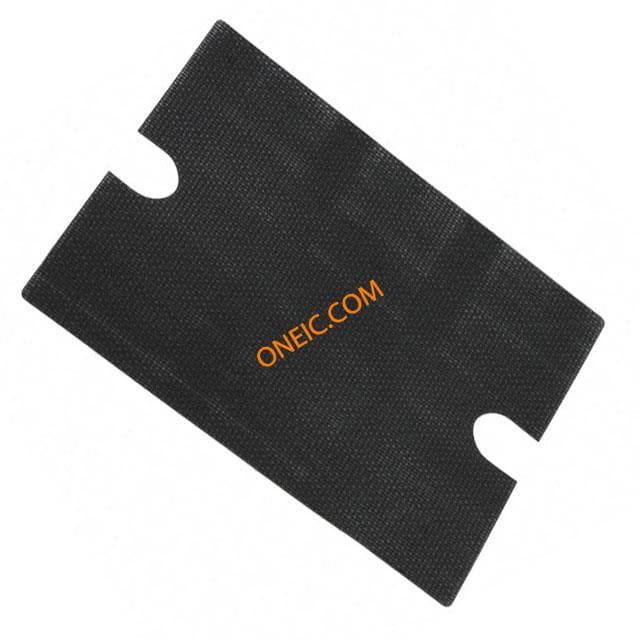

HSP-2
Crydom
Thrml Mgmt Access Thermal Pad Black 1.49°C.cm²/W 2W/m.K 10Xe2Ohm.cm THERMAL PAD SNGL PHASE WADHESVE SSR Adhesive Thermal Pad - 3 Phase Thermal Interface Products Thermal Pad for 1-phase SSR W/Adhsve THERMAL PAD ThermalPadfor1-phasepanelmountSSRW/Adhsve,.005thick,black Crydom 热导性垫 CWA4890P, 适用于M59 系列

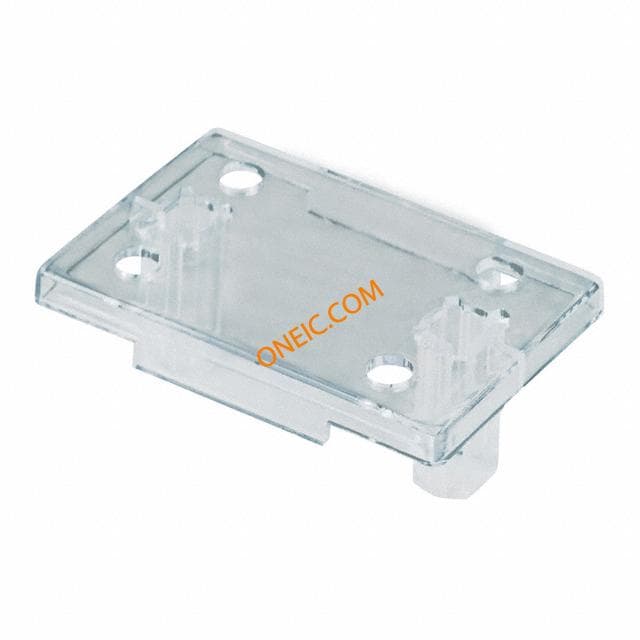

KS-100
