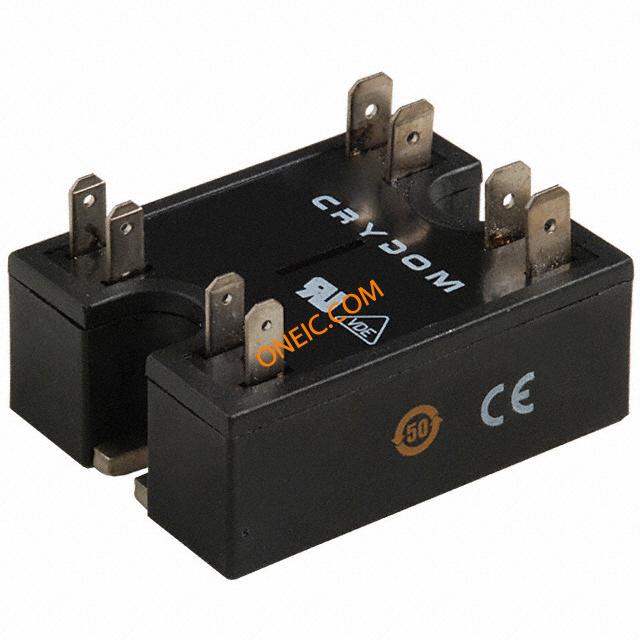

D2440D

点击放大查看

D2440D

制造商
Custom Sensors & Technologies (CST)
描述Solid State Relays - Industrial Mount 40A 280VAC DUAL Relay SSR 13mA 15V DC-IN 40A 280V AC-OUT 8-Pin RELAY DUAL SSR 40A 240VAC 40A Surface Mount, Zero Crossing SCR Solid State Relay, 280V SSR, DUAL, 40A, 240VAC Relay;SSR;Zero-Switching;Cur-Rtg40A;Ctrl-V4-15DC;Vol-Rtg24-280AC;Pnl-Mnt Solid State Relay Control Voltage: 4-15 VDC Load Current: 40 Amps Load Voltage: 24-280 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount Solid state relay dual phase 3...32 VDC, D2440D, Crydom
分类
工业电源组件和继电器固态继电器固态继电器

商业参数

交货时间30 Days其他名称CC1122
子类别Solid State Relay产品类别Solid State Relays - Industrial Mount
标准包装数量20工厂包装数量1

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85364900
抗辐射加固No

电气参数

输出端SCR电路DPST (2 Form A)
压摆率:200V/µs输入类型DC
电阻:310ohm输出类型AC
负载电流40A开关模式:Proportional Output
负载电压24 ~ 280 V额定电压15 V
浪涌电流:500A输出电流40000 mA
供电电压4 VDC to 15 VDC击穿电压:600V
隔离电压4000 V最大额定电流40 A
释放电压:1V最小输入电压4 ~ 15VDC
输出电压（最大）280 V电源电压（最大）:15VDC
最小供电电压24 VAC to 280 VAC额定电流 - 滤波器:0.15A
静态电流（最大）0.15 A输入偏置电流（最大）13 mA
平均整流电流 Io:40A额定交流电压（相间）:280Vrms
额定交流电压（相对地/中性线）:24V

机械参数

深度58.4mm宽度:44.5mm
高度21.6mm长度45.7mm
重量0.086包装方式Bulk
安装类型Screw端子类型:Screw
安装样式Panel封装形式Hockey Puck
总长度45.7端接样式Screw
外径:4.5mm位数8
外壳尺寸-插件21.6典型触点布局:DPST-NO
安装面板厚度:47.5mm

产品信息

系列Series 1继电器类型Relay
CAD图纸3D CAD Model开关类型Zero Crossing
电路类型1 Form A产品子类型Industrial Mount
控制/显示类型:DC印刷电路板数量8

环境参数

工作温度-40C to 80C

文档与媒体

Declaration of Conformity
Dual Relays
Dual Solid State Relay Brochure
Control Relays & I/O Modules Brochure
dual.pdf
