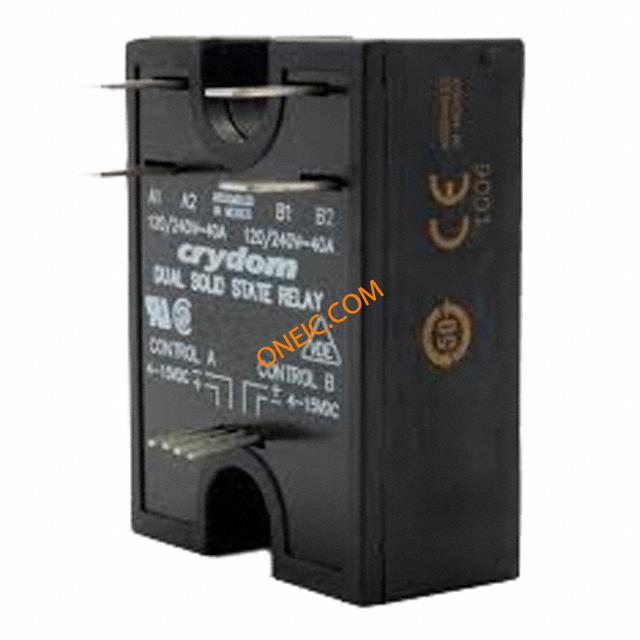

D2440D-10

点击放大查看

D2440D-10

制造商
Custom Sensors & Technologies (CST)
描述Solid State Relays - Industrial Mount 40A 240VAC DUAL Relay SSR 13mA 15V DC-IN 40A 280V AC-OUT 8-Pin RELAY SSR DUAL 240V Relay;SSR;Random Turn-On;Cur-Rtg 40A;Ctrl-V 4-15DC;Vol-Rtg 24-280AC;Pnl-Mnt Relay;SSR;RandomTurn-On;Cur-Rtg40A;Ctrl-V4-15DC;Vol-Rtg24-280AC;Pnl-Mnt Solid State Relay Control Voltage: 4-15 VDC Load Current: 40 Amps Load Voltage: 24-280 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount
分类
工业电源组件和继电器固态继电器固态继电器

商业参数

交货时间56 Days子类别Solid State Relay
产品类别Solid State Relays - Industrial Mount标准包装数量20
工厂包装数量1

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
标准UL,CSA,VDE,CE

电气参数

输出端SCR电路DPST (2 Form A)
输入类型DC电容8pF
输出类型AC负载电流40A
开启时间1/2 cycle负载电压24 ~ 280 V
额定电压280VAC浪涌电流625
输入阻抗300 Ohms输出电流40
关断延迟时间1/2 cycle最大交流电压1620
供电电压4 VDC to 15 VDC钳位电压600
连接器阻抗.25' Fastons, .025' Square Pins介电强度4000V(RMS)
转折电压600V隔离电压4000(RMS)
断态电压1.0 Vdc输入偏置电流13mA
最大额定电流40 A绝缘电阻10^9 Ohm
最小输入电压4 ~ 15VDC输出电压（最大）280
最小供电电压24 VAC to 280 VAC集电极-发射极饱和电压（最大）@ Vge, Ic1.6
关态电流（最大）10输入偏置电流（最大）13 mA
通态峰值电压（最大）4.0 Vdc驱动电压（最大Rds On，最小Rds On）15VDC
电流 - 非重复浪涌50/60Hz（Itsm）625A(Max.)

机械参数

宽度58.4重量3.0 oz. (86.5g)
包装方式Bulk端接方式QuickConnect
安装类型Screw安装样式Panel
引脚数8封装形式Hockey Puck
总长度45.7尺寸/外形1.80in.Lx1.31in.Wx2.30in.H
端接样式Screw位数8
外壳尺寸-插件21.6

产品信息

类型Relays系列Series 1
功能RandomTurn-On继电器类型Relay
制造商全称Series1产品子类型Industrial Mount
卡标准Solid State Relay控制/显示类型4-15 VDC
其他规格0.5输出配置1A NO
印刷电路板数量8

环境参数

开关次数500存储接口-40 to 125°C
工作温度-40 to 80°C自然散热热阻0.63
结工作温度+80°C

文档与媒体

Declaration of Conformity
Dual Relays
Dual Solid State Relay Brochure
Control Relays & I/O Modules Brochure
dual.pdf
