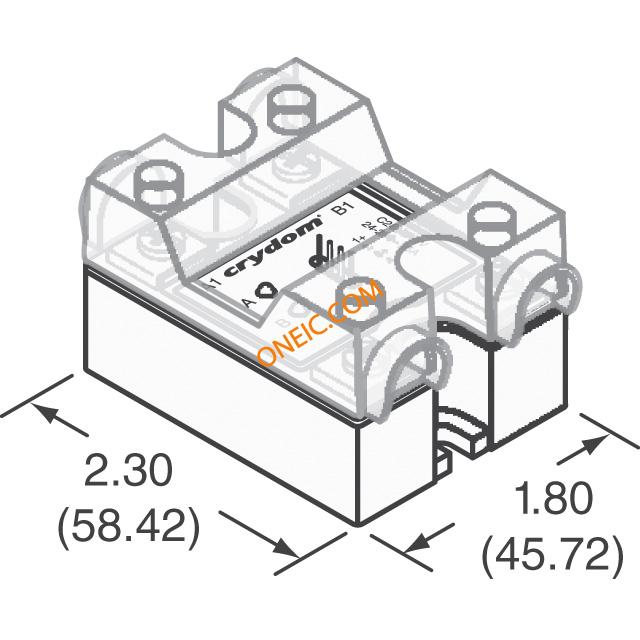

点击放大查看

CC2450W2V

制造商	Custom Sensors & Technologies (CST)
描述	Solid State Relays - Industrial Mount 4-32VDC 24-280VAC 50A Key Lock Conn. Relay SSR 10mA 32V DC-IN 50A 280V AC-OUT 8-Pin RELAY SSR DUAL 50A ZERO PNL MNT Relay;SSR;Cur-Rtg50A;Ctrl-V4-32VDC;Vol-Rtg24-280VAC;Panel;KeyLockingConn Solid State Relay Control Voltage: 4-32 VDC Load Current: 50 Amps Load Voltage: 24-280 VAC Output Configuration: 2A DPST-NO Mounting: Panel Mount
分类	工业电源组件和继电器固态继电器固态继电器

商业参数

其他名称	CC1690	产品类别	Solid State Relays - Industrial Mount
标准包装数量	20

合规参数

RoHS

RoHS Compliant By Exemption

欧盟RoHS

Compliant

电气参数

输出端	SCR	电路	DPST (2 Form A)
输入类型	DC	输出类型	AC
负载电流	50A	开启时间	8.33
负载电压	24 ~ 280 V	额定电压	280VAC
输出电流	50(RMS)	供电电压	4 VDC to 32 VDC
隔离电压	4000(RMS)	最大额定电流	50 A
最小输入电压	4 ~ 32VDC	输出电压（最大）	280(RMS)
最小供电电压	24 VAC to 280 VAC	关态电流（最大）	1000(RMS)
输入偏置电流（最大）	10(Typ)	峰值脉冲电流（8/20µs）	750
驱动电压（最大Rds On，最小Rds On）	18VDC

机械参数

宽度	45.72	包装方式	Bulk
引脚样式	Screw	安装类型	Screw
安装样式	Panel	封装形式	Hockey Puck
总长度	58.42	端接样式	Screw
位数	8	外壳尺寸-插件	36.2

产品信息

类型	Relays	系列	Evolution Dual
继电器类型	Relay	电路类型	1 Form A
制造商全称	CCSeries	产品子类型	Industrial Mount
卡标准	Solid State Relay	控制/显示类型	4-32 VDC
输出配置	2A DPST-NO	印刷电路板数量	8

环境参数

工作温度

文档与媒体

Declaration of Conformity

Dual Solid State Relay Brochure

Evolution Dual Series

ev_dual.pdf
