8280-8PG-321
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector MINI-CON CBL-CBL #20 CRIMP Conn Field Installable PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CONN RCPT 8POS CABLE PIN MINI-CONCABLE-CABLE#20CRIMP |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600V | ||
机械参数
| 直径 | 15.9 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Crimp | 触头类型 | 8Signal |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 触头材料 | Brass |
| 总长度 | 35.4 | 端接样式 | Crimp |
| 第一触头极性 | PIN | 触点数 | 8 |
| 位数 | 8 | 外壳材料及表面处理 | Nylon |
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
文档与媒体
相关型号
6280-8SG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS CABLE SKT MINI-CONCABLE#20CRIMP
6282-8SG-321
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 Solder Conn Field Installable SKT 8 POS Solder Cup ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS CABLE SKT MINI-CONCABLE#20SOLDER
357-124
Conxall / Switchcraft
Standard Circular Connector TURRET LOCATOR SIZE 12,16 & 20 Assembly Tools Turret Locator-Size 12,16 And 20 TURRET LOCATOR-SIZE 1216 & 20

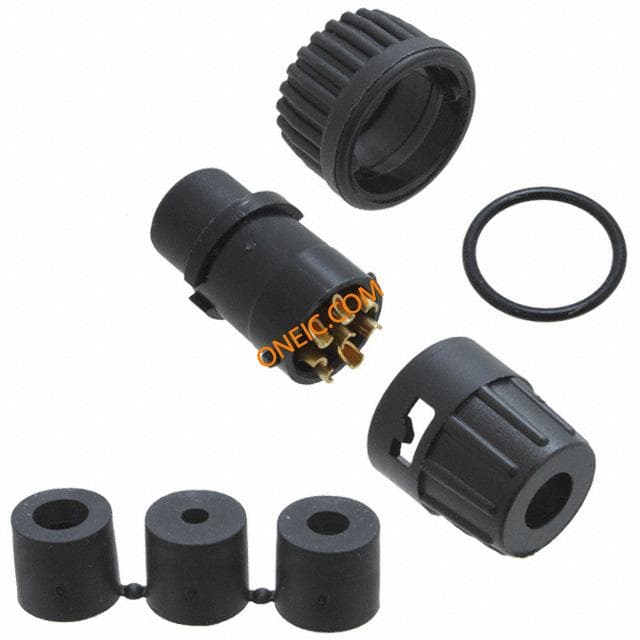

6282-8SG-3DC
