点击放大查看

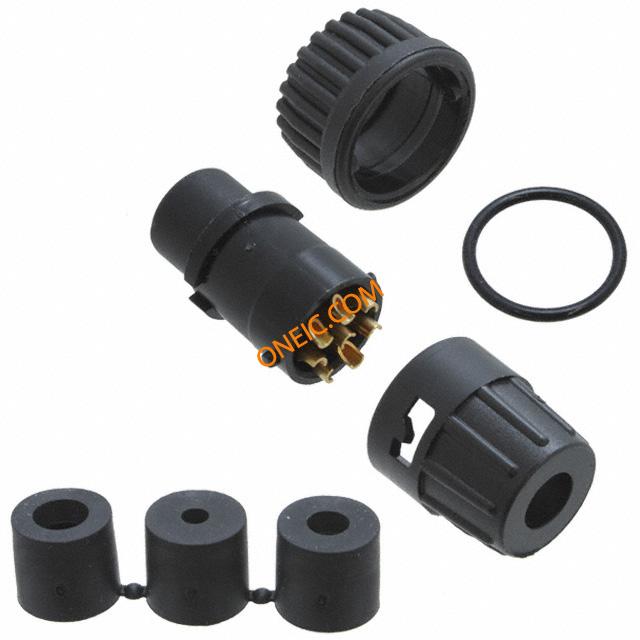

6282-8SG-3DC
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 8 POS Solder Cup ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS CABLE SKT CIRCULAR CONNECTOR RECEPTACLE, 8POS CABLE MINI-CONCABLE#20SOLDER |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 4.8 A to 13 A |
机械参数
| 重量 | 0 | 直径 | 18.2 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 触头类型 | 8Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Brass | 总长度 | 33.4 |
| 端接样式 | Solder Cup | 第一触头极性 | SKT |
| 配接方向 | Bayonet | 触点数 | 8 |
| 位数 | 8 | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Field Installable | 连接器性别 | :Receptacle |
| 系列 | Mini-Con-X | 产品子类型 | Connectors |
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
