点击放大查看
7281-3PG-3ES
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector MINI-CON PAN MT #20 PC TAIL Conn Field Installable PIN 3 POS Solder ST Thru-Hole 3 Terminal 1 Port CONN RCPT 3POS PNL MNT PIN MINI-CONPANELMT#20PCTAIL |
| 分类 |
商业参数
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600 V | 连接器阻抗 | Solder |
| 最大额定电流 | 4.8 A to 13 A | 每极负载侧连接方式 | No |
机械参数
| 颜色 | Black | 深度 | 20.6 |
| 高度 | 23.5 | 包装方式 | Bulk |
| 导线线规 | 18-16 | 方向 | Straight |
| 端接方式 | Solder | 触点形式 | 3Signal |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 触头材料 | Brass |
| 总直径 | 23.5 | 端接样式 | Solder Tail |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 外壳材料及表面处理 | Nylon |
产品信息
| 类型（缩写） | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP 67 | 工作温度 | -40°C ~ 115°C |
相关型号
6280-3SG-315
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20CRIMP
6282-3SG-522
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20SOLDER
6293SP
Conxall / Switchcraft
Standard Circular Connector MINI-CON GASKET-SPC MINI-CON-X GASKET - SPECIAL MINI-CON-XGASKET-SPECIAL

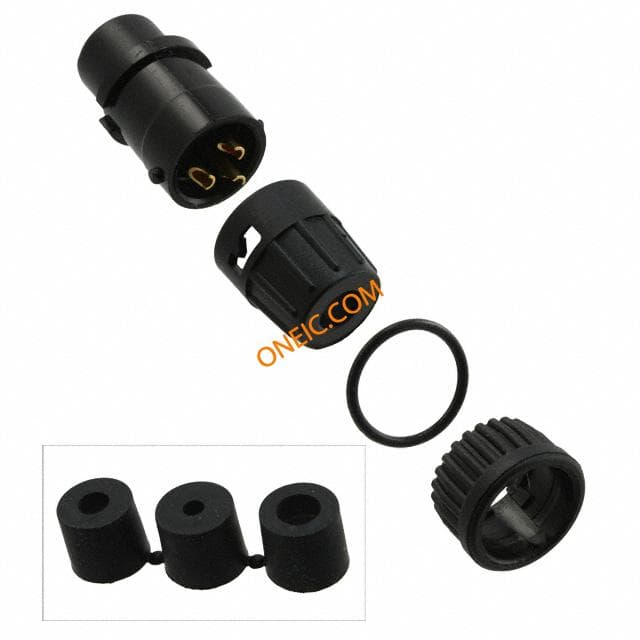

6282-3SG-3DC
Conxall / Switchcraft
Standard Circular Connector 3P SOCKET CBL END DAISY CHAIN GRMMT Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT Connector;#2;SolderCup;3;Socket;GoldoverNickel(Standard);600V;Nylon
6282-3SG-513
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20SOLDER
6282-3SG-516
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20SOLDER
6280-3SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20CRIMP
6282-3SG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20SOLDER
6280-3SG-321
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20CRIMP
6280-3SG-522
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20CRIMP
6282-3SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT MINI-CONCABLE#20SOLDER
6293
Conxall / Switchcraft
Standard Circular Connector MINI GASKET MINI GASKET FOR MICRO CIRCULAR CONNECTOR GASKET MINI-CON-X MINIGASKET

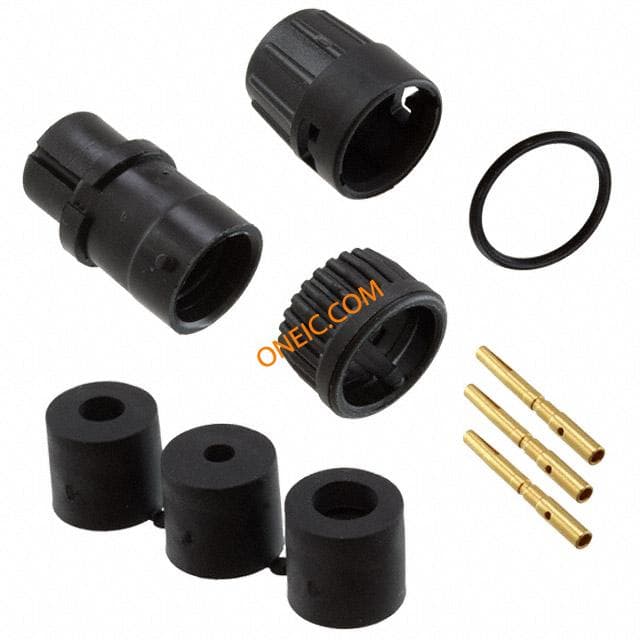

6280-3SG-3DC
