点击放大查看

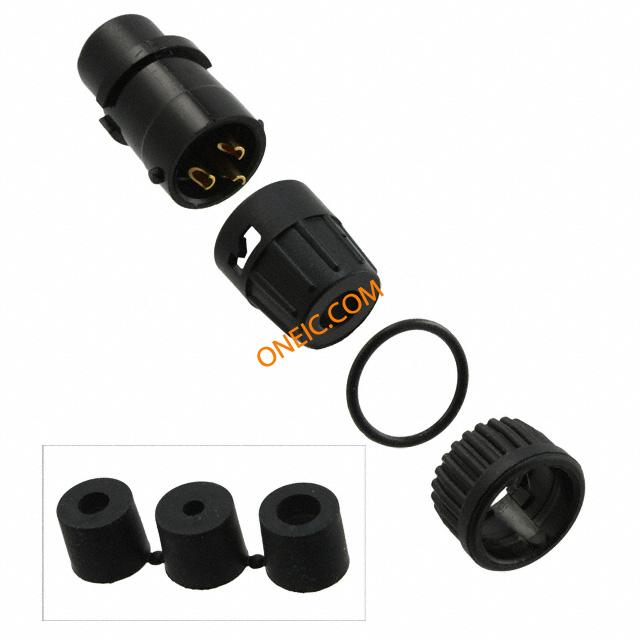

6282-3SG-3DC
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector 3P SOCKET CBL END DAISY CHAIN GRMMT Conn Field Installable SKT 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE SKT Connector;#2;SolderCup;3;Socket;GoldoverNickel(Standard);600V;Nylon |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600V | ||
机械参数

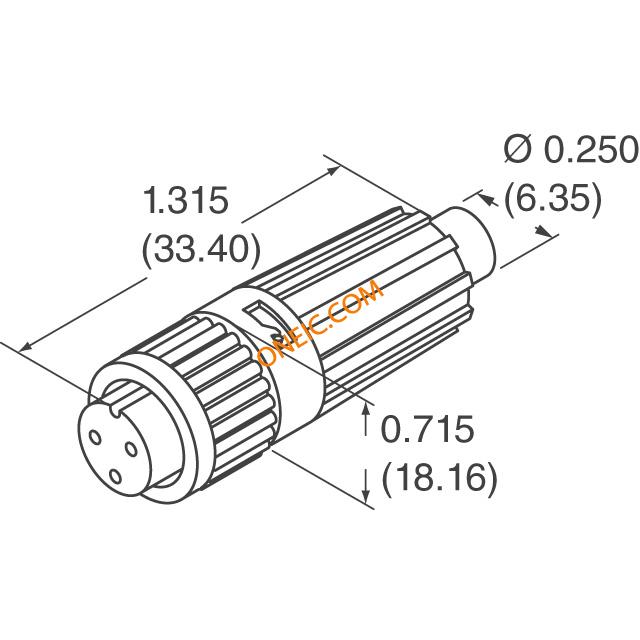

| 直径 | 18.2 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触头类型 | 3Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Gold over Nickel | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | Free Hanging | 触头材料 | Brass |
| 总长度 | 33.4 | 端接样式 | Solder Cup |
| 第一触头极性 | SKT | 触点数 | 3 |
| 位数 | 3 | 外壳材料及表面处理 | Nylon |
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
文档与媒体
