19031618A
| 制造商 | Comair Rotron |
| 描述 | FAN 24VDC MUFFIN MC24K3 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
电气参数
| 功率（瓦） | 10.6W | 电压范围 | 12 ~ 28VDC |
| 额定电压 | 24VDC | 最大额定电流 | 0.440A |
机械参数
| RPM | 4200 RPM | 重量 | 0.529 lb (239.95g) |
| 风量 | 118.0 CFM (3.34m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.505 in H2O (125.8 Pa) | 刀片材料 | Plastic |
| 框架材料 | Plastic | 尺寸/外形 | Square - 120mm L x 120mm H x 32mm W |
文档与媒体
相关型号
06450-M
Qualtek
Fan Cords & Accessories ALUM FLTR MIL 4 1/2 FAN FILTER/SCREEN 120MM Filter; 06 Series; 4-1/2 in. Fan; Aluminum; 4.68 in. H x 0.175 in. W Fan Accessories ALUM FLTR MIL 4 1/2 Thrml Mgmt Access Fan Filter Screen 120mm Aluminum EMI/RFI Fan Filter Filter;06Series;4-1/2in.Fan;Aluminum;4.68in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 120 mm - 4 1/2 in. Use With Fan Size (in.): 4.5 Finish: Mill (No Finish) Sixz (inches) H (sq): 4.68 Size (inches) Thickness: 0.175 M/C: 4.125
09450-G
Qualtek
Fan Cords & Accessories BLK PLSTC GUARD 4.65 FINGER GUARD 120MM PLASTIC Fan Accessories BLK PLSTC GUARD 4.65 Thrml Mgmt Access Guard 120mm Plastic FINGER GUARD FanGuard;Plastic Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5
09122-G
Qualtek
Fan Cords & Accessories PLASTIC GUARD 120MM FINGER GUARD 120MM PLASTIC THIN Fan Accessories PLASTIC GUARD 120MM Thrml Mgmt Access Fan Guard FINGER GUARD FanGuard;PC241RVO;4.5in.;0.100in.;0.18in. Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5
09120-G
Qualtek
Fan Cords & Accessories PLASTIC GUARD 120MM FINGER GUARD 120MM PLASTIC Fan Accessories PLASTIC GUARD 120MM Thrml Mgmt Access Fan Guard FINGER GUARD FanGuard;PC500-739GF10%/L94VO;4.5in.;0.260in.;0.18in. Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5
06450-SS
Qualtek
Fan Cords & Accessories STEEL FILTER 120MM FAN FILTER/SCREEN STEEL 120MM Filter; 06 Series; 4-1/2 in. Fan; Stainless Steel; 4.68 in. H x 0.175 in. W Fan Accessories STEEL FILTER 120MM EMI/RFI Fan Filter Filter;06Series;4-1/2in.Fan;StainlessSteel;4.68in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 120 mm - 4 1/2 in. Use With Fan Size (in.): 4.5 Finish: Stainless Steel Sixz (inches) H (sq): 4.68 Size (inches) Thickness: 0.175 M/C: 4.125
09121-G
Qualtek
Fan Cords & Accessories PLASTIC GUARD 120MM FINGER GUARD 120MM PLASTIC Fan Accessories PLASTIC GUARD 120MM Thrml Mgmt Access Fan Guard Plastic FanGuard;PBT4130/UL940VO;4.5in.;0.260in.;0.18in. Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

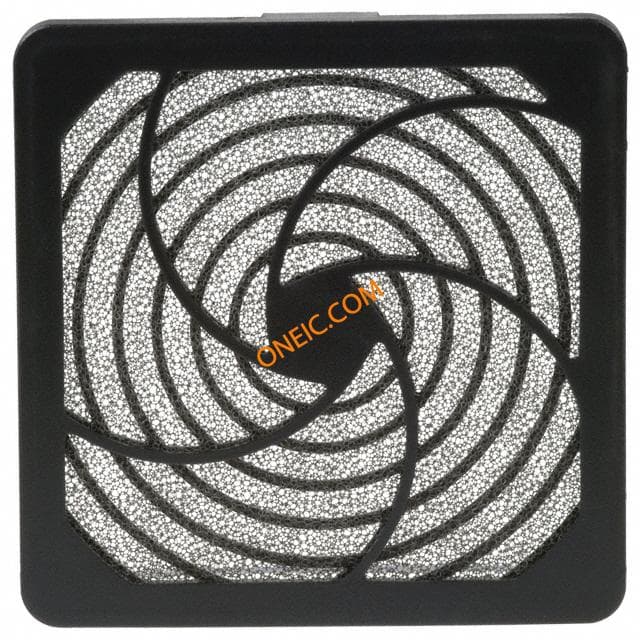

09450-F/30
Qualtek
Fan Cords & Accessories BLK FLTR ASSM 4.65 FILTR FAN GUARD 120MM 30PPI Filter; Fan; Foam Filter Media; 4-1/2 in. Tube Axial Fans; Plastic Fan Accessories BLK FLTR ASSM 4.65 Thrml Mgmt Access Fan Filter Assembly 120mm Plastic Filter,Fan;FoamFilterMedia;4-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 120 mm - 4 1/2 in. Description: Guard, Retainer, Media (30 Pores Per Inch) Size Height (in.): 4.87 Size Width (in.): 4.87 Size Thickness (in.): 0.42 Size M/C (in.): 4.13
08146
Qualtek
FINGER GUARD 120MM METAL Thrml Mgmt Access Fan Guard 120mm Carbon Steel FINGER GUARD FANGUARD,WIREFORM,120MM,NICKELCHROME Fan Accessories Wire Form Fan Guards Does not meet 1/4" max. ring spacing. For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5
09450-F/45
Mechatronics
Fan Filter Assemblies Contains: Guard, Foam Media & Retainer Media: 45 Pores Per Inch Height (inches): 4.87 Width (inches): 4.87 Thickness (inches): 0.42
