点击放大查看
S-306-CCT
| 制造商 | |
| 描述 | Jones Plugs & Sockets 6C CBL MNT SOCKET CONN SOCKET 6POS CADMIUM SOLDER |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 端接方式 | Solder Eyelet(s) | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Socket, Jones | 接触镀层 | Cadmium |
| 紧固类型 | Push-Pull | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 位数 | 6 |
| 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) | ||
产品信息
| 产品特性 | Hood, Cable Clamp | ||
环境参数
| 工作温度 | 105°C | ||
文档与媒体
相关型号

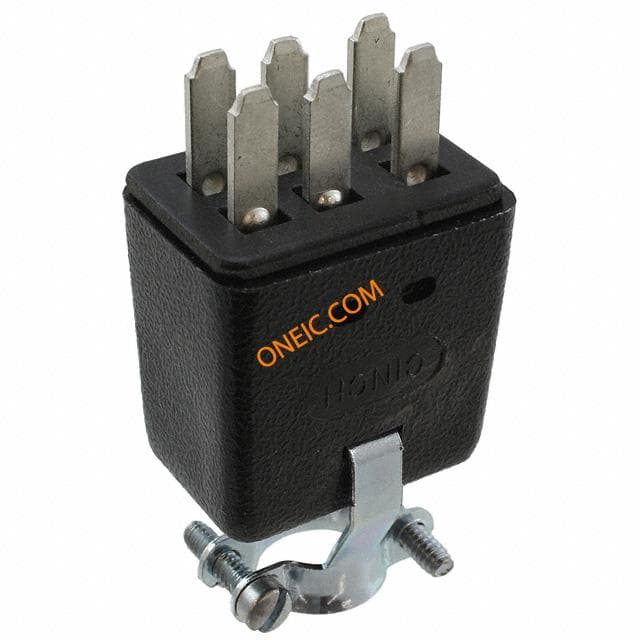

P-306H-CCT
