点击放大查看
465802000
| 制造商 | foresee |

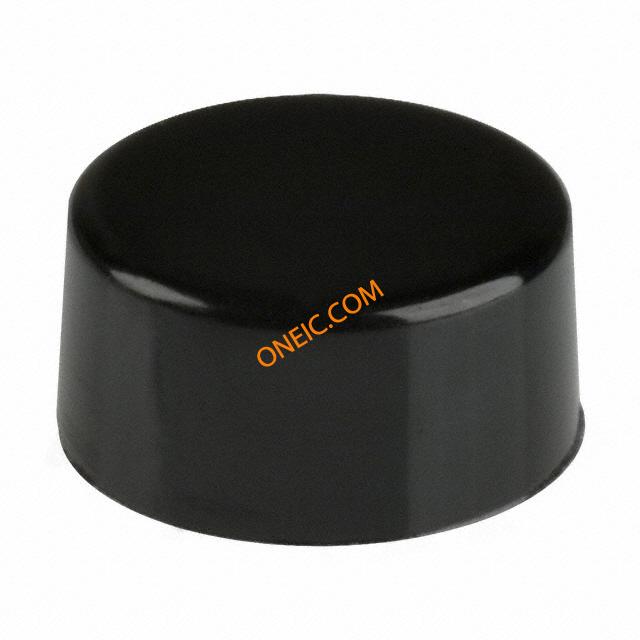

| 描述 | Switch Access Push Button Switch Round Cap Switch Accessories PB SWCH CAP BLK Hardware CAP PUSHBUTTON ROUND BLACK Push Button Cap For Use With EP Series (Sealed Tiny Push Button Switch) CAP, ROUND, BLACK, 7.87X3.86, FOR ET/EP Cap;Black;Polycarbonate;0.1in.;EP&TPSeries;PanelMount;0.152in. C&K LARGE CAP |
| 分类 |
商业参数
| 最小起订量 | 1000 | 交货时间 | 68 Days |
| 单位包装 | 1 | 子类别 | Switch Accessories |
| 产品类别 | Switch Accessories | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85365011 |
机械参数

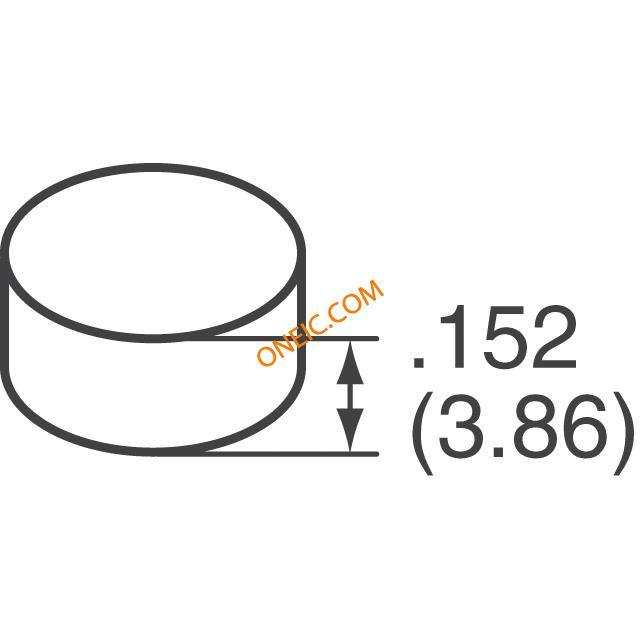

| 尺寸 | 7.87mm Dia x 3.86mm H | 颜色 | Black |
| 形状 | Round | 高度 | 3.86 mm |
| 重量 | 0.045 | 直径 | 0.1in. |
| 包装方式 | Bulk | 重量（g） | 0.14000 |
| 安装类型 | Slip On | 安装样式 | Snap On |
| 本体材料 | Polycarbonate | 按钮/帽颜色 | :Black |
产品信息
| 类型 | Round Cap | 系列 | TP |
| 应用领域 | EP, TP Series | 开关类型 | Push Button Switch |
| 照明类型 | Not Illuminated | 制造商全称 | EP&TPSeries |
| 附件类型 | Cap | 行业别名 | 465802000 |
| 适用产品/相关产品 | Pushbutton Switches | ||
环境参数
| 工作温度 | -30 to 85 °C | 结工作温度 | 85C |
