PX0843/B
| 制造商 | Bulgin |
| 描述 | CONN RCPT IP68 USB B PNL - 5POS USB B Type Chassis Conn & Lead IP68 USB Connectors PANEL MT USB B TYPE Cable Assembly PVC 0.132m 5 POS USB F Crimp CONNECTOR, USB, TYPE B, PANEL, IP68 COMPUTER CABLE, USB 2.0, 132MM, BLACK USBBuccaneerFrontPanelMountConnectorIP68TypeB Socket; USB B; USB Buccaneer; for panel mounting, rear side nut Appliance plug, USB B to socket, 5-pole 4, PX0843/B, Bulgin Bulgin 电缆组件, USB B 至 压接插座 |
| 分类 |
商业参数
| 产品 | USB Type B Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 30 V | 供电电压 | USB 2.0 |
| 最大额定电流 | 1 A | 导体数量 | 4Conductors |
机械参数
| 颜色 | Black | 长度 | 0.49' (150mm) |
| 重量 | 0.02 | 屏蔽 | Shielded |
| 电缆类型 | Round | 电缆组 | :USB |
| 端接方式 | Leadwires | 电缆长度 | :5.196" |
| 线缆护套颜色 | :Black | 第一连接器 | Female USB B |
| 第二连接器 | Crimp Socket | 电缆颜色 | :Black |
| 安装类型 | Straight | 外壳镀层 | Nickel |
| 连接器类型 | Rectangular 5 pos Plug to USB B Male Plug | 接触镀层 | Gold |
| 安装样式 | Panel | 锁定特性 | threaded joint |
| 面板厚度 | max 5.2mm | 触头材料 | Copper Alloy |
| 壳体材料 | Steel | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | socket |
| 端接样式 | Crimp | 第二连接器类型 | 5-WayCrimp |
| 连接器颜色 | Black | 配接方向 | ScrewCoupling |
| 触点数 | 5 | 接触件端接 | :Panel Mount |
| 位数 | 4 | 绝缘材料 - 材质 | Nylon6 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| SPG | 25 | USB | USB 2.0 |
| 类型 | USB | 用途 | Industrial Environments - IP68 |
| 连接器性别 | Female | 系列 | Buccaneer |
| 产品特性 | BTypeUSB,EMIProtection | 适配器系列 | USB Buccaneer |
| 端口数 | 1 | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 |
| 温度额定值 | 0to+70°C | 工作温度 | 0 C to + 70 C |
文档与媒体
相关型号
PX0840/B/2M00
Bulgin
Cable Assemblies 2M SEALED B-STD A CABLE PLUG IP68 USB B-A 2M Buccaneer B to USB A IP68 patchcord,2m USB Cables / Firewire Cables 2M SEALED B-STD A Cable Assembly PVC 2m 24AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp CABLE ASSEMBLY, USB A TO B, IP68, 2M Connector,Circular;1.5Mbsto480Mbs;4;DustandWaterproof;2m;38.1mm Adapter cable; USB A plug, USB B plug (sealed); USB Buccaneer Cable assembly with 2 m USB B to USB A 4, PX0840/B/2M00, Bulgin Bulgin 2m 黑色 电缆组件, USB B 至 USB A
PX0840/A/5M00
Bulgin
Cable Assemblies 5M SEALED A-STD B CABLE PLUG IP68 USB A-B 5M Buccaneer A to USB B IP68 patchcord,5m USB Cables / Firewire Cables 5M SEALED A-STD B Cable Assembly PVC 5m 20AWG/25AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB A TYPE, 5M, IP68 Connector,USBBuccaneer,SealedAType,5M Cable assembly with 5 m USB A to USB B 4, PX0840/A/5M00, Bulgin Bulgin 5m 黑色 电缆组件, USB A 至 USB B
PX0840/B/3M00
Bulgin
Cable Assemblies 3M SEALED B-STD A CABLE PLUG IP68 USB B-A 3M Connector; USB Buccaneer; Sealed B Type; 3M USB Cables / Firewire Cables 3M SEALED B-STD A Cable Assembly PVC 3m 22AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp USB 2.0, CABLE ASSEMBLY, TYPE B TO A Connector,USBBuccaneer,SealedBType,3M Bulgin 3m 黑色 USB 电缆组件, USB 2.0
PX0840/B/5M00
Bulgin
Cable Assemblies IP68 USB B-USB A 5M CABLE PLUG IP68 USB B-A 5M Buccaneer B to USB A IP68 patchcord,5m USB Cables / Firewire Cables IP68 USB B-USB A 5M Cable Assembly PVC 5m 20AWG/25AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB B TYPE, 5M, IP68 CableAssembly;USB-TypeBtoUSB-TypeA;IP68;5m;38.1mm Adapter cable; USB A plug, USB B plug (sealed); USB Buccaneer Cable assembly with 5 m USB B to USB A 4, PX0840/B/5M00, Bulgin Bulgin 5m 黑色 电缆组件, USB B 至 USB A
PX0840/A/2M00
Bulgin
Cable Assemblies 2M SEALED A-STD B CABLE PLUG IP68 USB A-B 2M Buccaneer A to USB B IP68 patchcord,2m USB Cables / Firewire Cables 2M SEALED A-STD B Cable Assembly PVC 2m 24AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB A TYPE, 2M, IP68 Assembly,Cable;2m Adapter cable; USB B plug, USB A plug (sealed); USB Buccaneer Cable assembly with 2 m USB A to USB B 4, PX0840/A/2M00, Bulgin Bulgin 2m 黑色 电缆组件, USB A 至 USB B
PX0841/AB/2M00
Bulgin
Cable Assemblies 2M SEALED A-B CABLE DUAL PLUG IP68 USB A-B 2M Connector; USB Buccaneer; Sealed A and B Types; 2M USB Cables / Firewire Cables 2M SEALED A-B Cable Assembly PVC 2m 24AWG/28AWG 4 POS USB to 4 POS USB PL-PL Crimp-Crimp LEAD, USB A/B TYPE, 2M, IP68 Connector,USBBuccaneer,SealedAandBTypes,2M Bulgin 2m 黑色 USB 电缆组件, USB 2.0

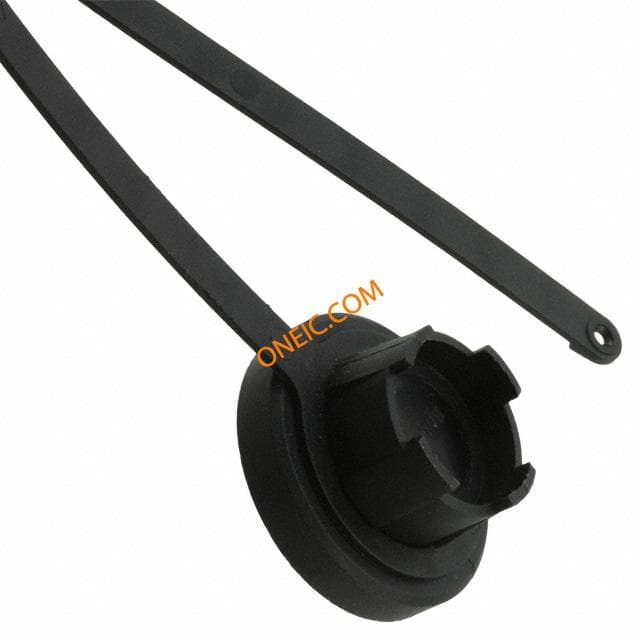

PX0733
