点击放大查看

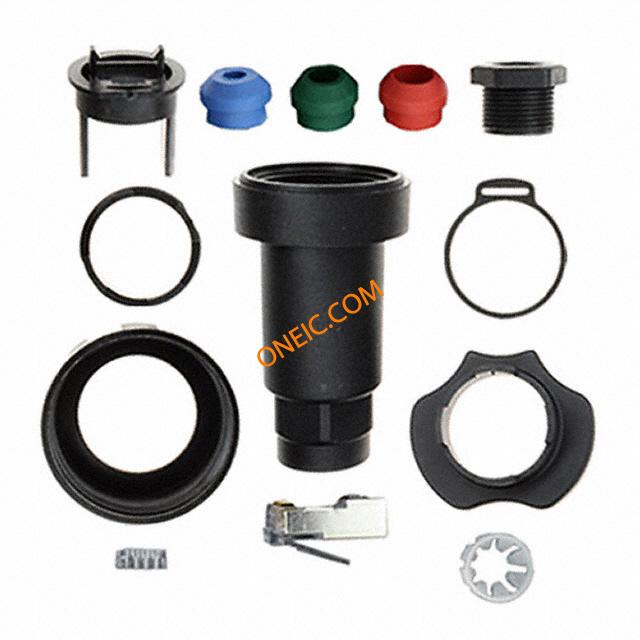

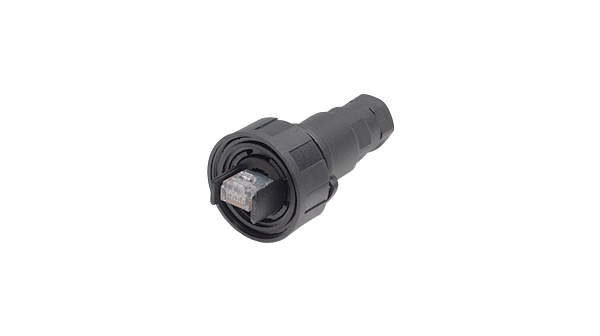

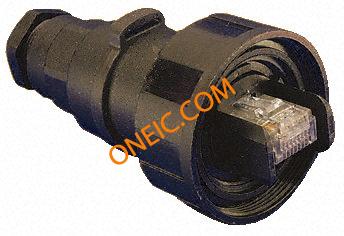

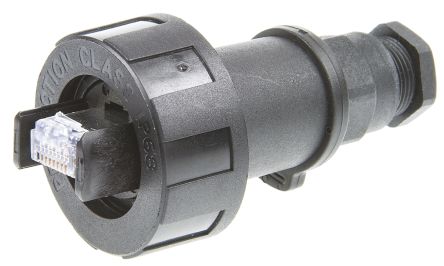

PX0834/B

制造商	Bulgin
描述	Modular Connectors / Ethernet Connectors CAT 5E SHIELDED PLUG CONN MOD PLUG 8P8C SHIELDED Buccaneer IP68Cat5e RJ45 cable connector Conn RJ-45 M 8 POS ST Cable Mount 1 Port Cat 5e SEALED ETHERNET, PLUG, RJ45, 8WAY, CABLE CAT5E ETHERNET COUPLER, PLUG, 8WAY CABLE Connector;RJ-45;77.5mm;38.1mm;Cablesfrom3.5to8mmDia. Plug; RJ45; Buccaneer Ethernet; PIN:8; Contacts: phosphor bronze Cable socket with RJ45 plug 8, PX0834/B, Bulgin Bulgin 直公 RJ45 连接器 , Cat5e, 屏蔽, 电缆安装型
分类	连接器解决方案模块化连接器RJ45模块化连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Modular Connectors / Ethernet Connectors	标准包装数量	10
工厂包装数量	10

合规参数

RoHS	Compliant	海关税号	85369010
材料阻燃等级	:UL94V-0

电气参数

阻抗	:100ohm	额定电压	:30V
工作电压	:30V	最大额定电流	1.5 A

机械参数

颜色	Translucent - Clear	长度	3.051" (77.50mm)
重量	0.05	包装方式	Bulk
屏蔽	Shielded	电缆类型	Round Cable, Stranded Wires
导线线规	24/26	方向	Straight

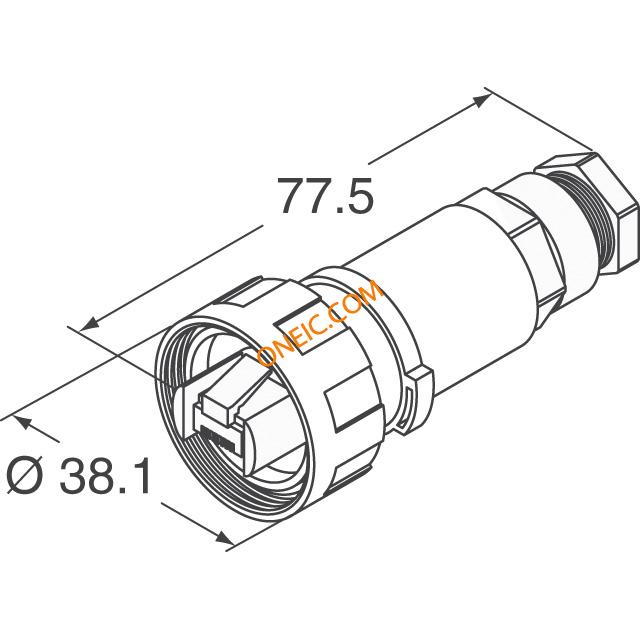

外壳样式	Plastic	本体尺寸	Ø38.1 x 77.5mm
端接方式	IDC	安装类型	Cable Mount
行程角度	Straight	电缆直径	3.5-8mm
连接器类型	:Industrial Ethernet	接触镀层	Gold
安装样式	Cable	锁定特性	threaded joint, internal thread
触头材料	Phosphor Bronze	壳体材料	Polyester/Polyurethane
包装数量	50	主要材料	Ethernet
连接器 - 电缆	plug	触点数	:8
接触件端接	:-	位数	8
镀层厚度（通用）	50µm	触点材料 - 镀层	gold plated
外壳与棱镜材料	polyamide	第一连接器安装类型	:Cable

产品信息

SPG	50	类型	CablePlug
连接器性别	Male	系列	Buccaneer
产品特性	Circular Threaded Coupling	USOC 编码	RJ45
适配器系列	Buccaneer Ethernet	端口数	1
单元数量	1	性能类别	Cat 5e
应用细节	Commercial	位置/触点数量	8p8c (RJ45, Ethernet)

环境参数

额定等级	Cat5e	插拔次数	:1000
NEMA 机架尺寸	:IP68	防护等级	IP68 - Dust Tight, Waterproof
工作温度	:70°C

文档与媒体

PDF 文档

Ethernet Buccaneer

PDF 文档

Buccaneer-2010_Ethernet.pdf

相关型号

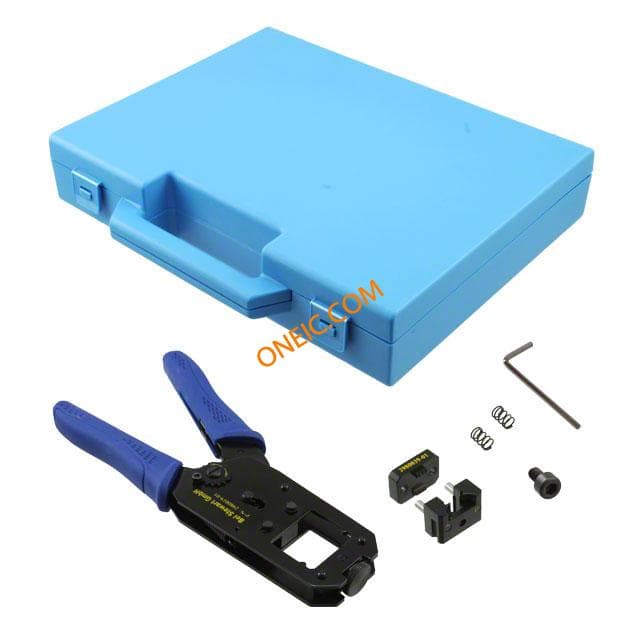

14151

Bulgin

Hand Tools HAND CRIMP TOOL & DIE SET EARTHNET TOOL HAND CRIMPER & DIE SET

¥4822.3628

详情

PX0834/B

Bulgin

Modular Connectors / Ethernet Connectors CAT 5E SHIELDED PLUG CONN MOD PLUG 8P8C SHIELDED Buccaneer IP68Cat5e RJ45 cable connector Conn RJ-45 M 8 POS ST Cable Mount 1 Port Cat 5e SEALED ETHERNET, PLUG, RJ45, 8WAY, CABLE CAT5E ETHERNET COUPLER, PLUG, 8WAY CABLE Connector;RJ-45;77.5mm;38.1mm;Cablesfrom3.5to8mmDia. Plug; RJ45; Buccaneer Ethernet; PIN:8; Contacts: phosphor bronze Cable socket with RJ45 plug 8, PX0834/B, Bulgin Bulgin 直公 RJ45 连接器 , Cat5e, 屏蔽, 电缆安装型

¥72.4800

详情

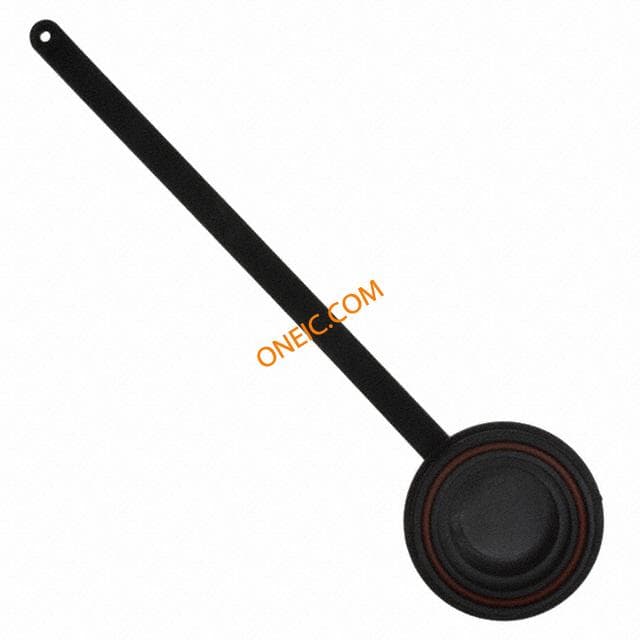

PX0835

Bulgin

CONN CAP SEAL FOR PX0846/PX0851 Sealing cap for cable connector Modular Connectors / Ethernet Connectors SEALING CAP Connector Accessories USB Sealing Cap CAP, BUCCANEER, RJ45 Cap,Sealing;FitsflexconnectorsPX0830-832,PX0834,PX0836-838;Buccaneer Protection cover; IP68; threaded joint Protective cap, PX0835, Bulgin Bulgin IP68 防尘盖

¥9.0600

详情

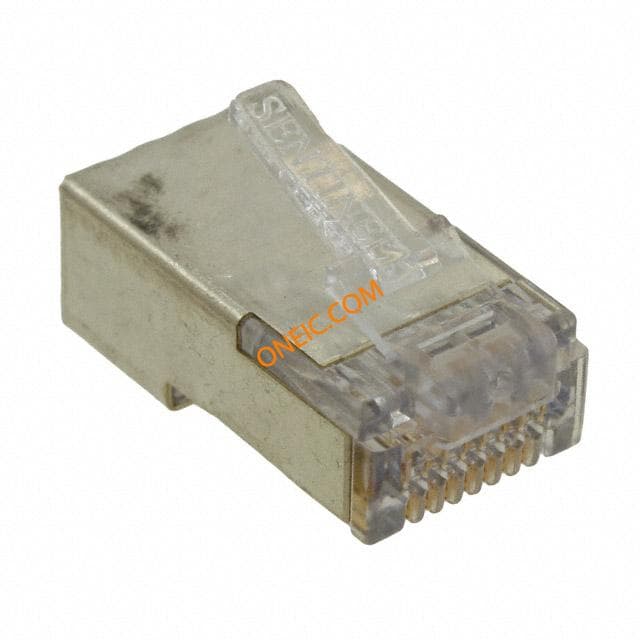

14150

Bulgin

REPLACEMENT SHIELDED RJ45 PLUG Modular Connectors / Ethernet Connectors SHIELDED RJ45 PLUG

¥20.9440

详情

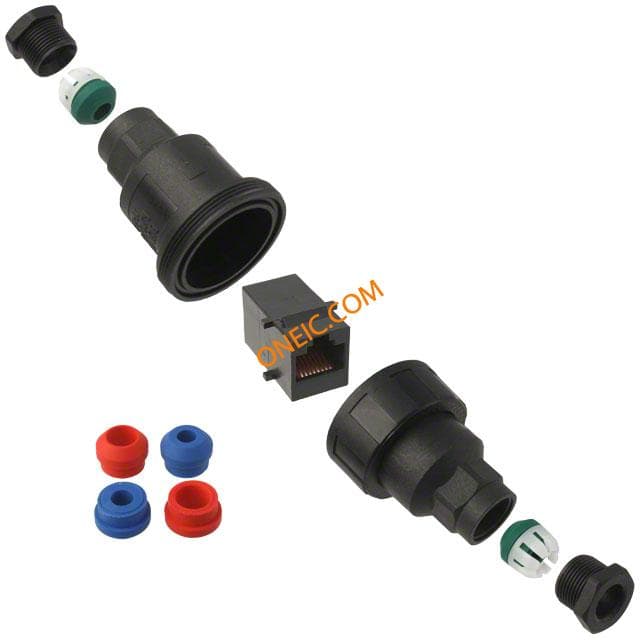

PX0777/UTP

Bulgin

CABLE JOINER 8POS UTP UNSHIELDED COUPLER MODULAR 8POS-8POS Buccaneer in-line conn. Cat 5 UTP IP68 Connector Accessories Cable Joiner For Sealed In-Line RJ45 Connections CONNECTOR, ETHERNET, IN-LINE, UTP CableJoiner;Unshielded;GlassFilledPolyamide;105mm(Max.);38.1mm;IP68 Cable joint; RJ45 socket, both sides; Buccaneer Ethernet; IP68 电缆安装 RJ45 连接器, Cat5

¥63.4200

详情

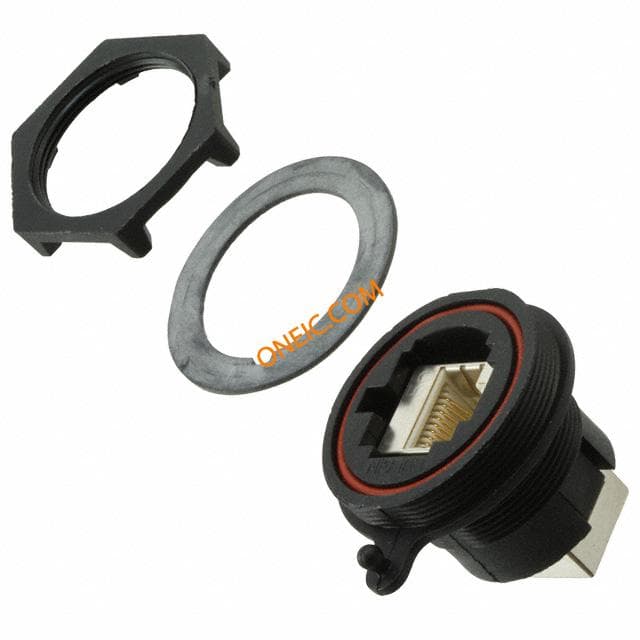

PX0833

Bulgin

CONN RCPT 8-8 PNL MNT IP68 COUPLER MODULAR 8POS-8POS IP68 Cat5e RJ45 panel mounted coupler Conn RJ-45 F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e SOCKET, BUCCANEER, RECEPTACLE, 8WAYS CAT5E ETHERNET COUPLER, PLUG, 8WAY PANEL Connector;PanelMount;HD-PE;85to90mm;38.1mm;IP68;ShieldedRJ45plug Coupler; RJ45 socket, both sides; Buccaneer Ethernet; PIN:8; 1.5A Appliance plug with RJ45 coupler 8, PX0833, Bulgin Bulgin 直母 RJ45 连接器 , Cat5e, 屏蔽, 面板安装型

¥144.9600

详情

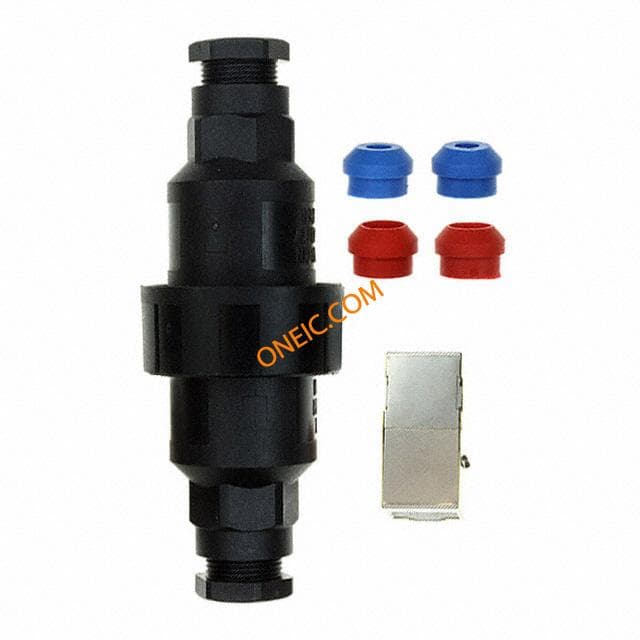

PX0777/CAT5ESTP
