PX0820/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 25 POLE FLEX PLUG CONN HSNG PLUG 25POS CABLE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED FREE, 25WAY CIRCULAR CONNECTOR, PLUG, 25POS, CABLE CONN HSNG PLUG 25POS INLINE PIN Connector,StandardBuccaneer;Pin;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :65mm | 重量 | 0.026 |
| 包装方式 | Bulk | 导线线规 | 24-26 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp, Solder | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Gold |
| 行程角度 | Straight | 电缆直径 | 7-9mm |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Gold over Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 25 | 接触件端接 | :Crimp / Solder |
| 介电材料 | Polyamide | 位数 | 25 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :9mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

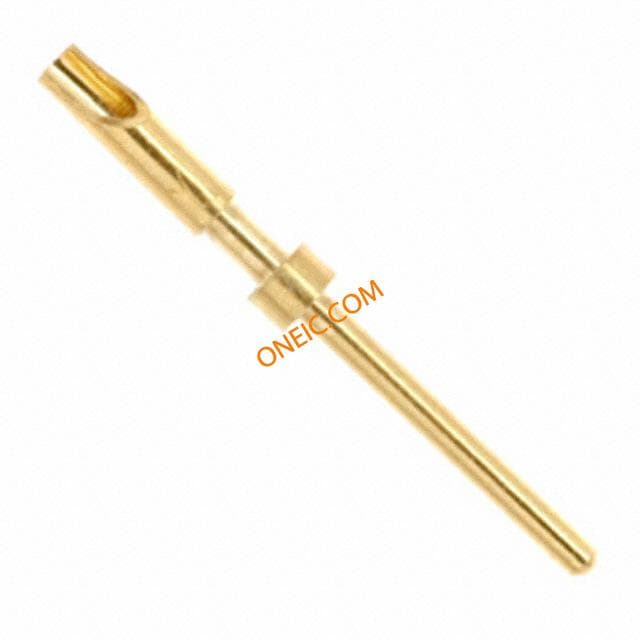

SA3180/1
Bulgin
Standard Circular Contacts SOLDER PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A SLD 24-28AWG 1=10PC 1A solder pin contact,24-28awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 28-24 AWG, SOLDER Contact;Pin;10,12;Solder;1A;50V;Gold;IP68 Contact; male; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 10 and 12-pole, SA3180/1, Bulgin Bulgin 400 系列 1A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 28 → 24 AWG 线规格
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0821/S
Bulgin
Standard Circular Connector 25 POLE IN-LINE SKT CRIMP/SOLDER CONN HSNG RCPT 25POS INLINE SKT 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port SOCKET, SEALED, INLINE, 25WAY CableConnector,In-Line;25;Socket;7to9mmDia;In-LineFlex;1A;50V Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 母触点
PX0820/P
Bulgin
Standard Circular Connector 25 POLE FLEX PLUG CONN HSNG PLUG 25POS CABLE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED FREE, 25WAY CIRCULAR CONNECTOR, PLUG, 25POS, CABLE CONN HSNG PLUG 25POS INLINE PIN Connector,StandardBuccaneer;Pin;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

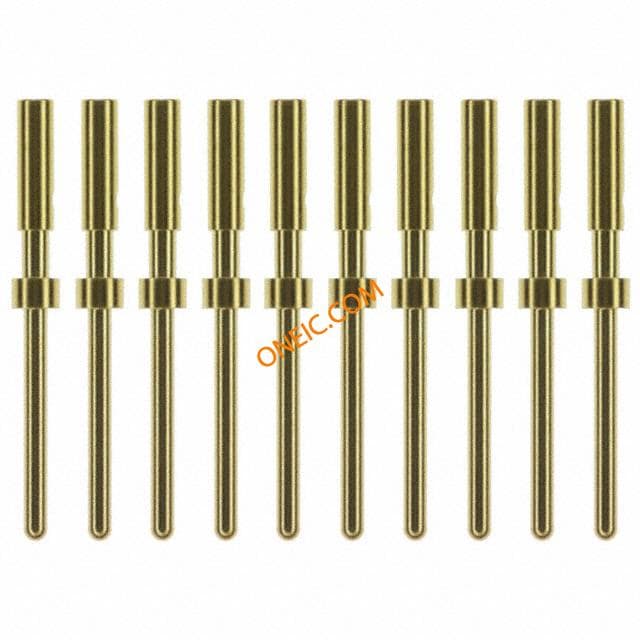

SA3180
